Octave Method for Low B : 5-String Bass
Major Scales & Arpeggios


Octave Method for 5-String Bass

Lulu logo

eBook :


Octave Method for Low B : 5-String Bass


Fretboard navigation method for 5-string bass
(Low B) based on an instrument specific modification of the CAGED guitar method, using octave shapes rather than open position chord shapes for ease and simplicity of use.


Lulu logo

Paperbook Book :


Octave Method for Five String Bass


Fretboard navigation method for 5-string bass
(Low B) based on an instrument specific modification of the CAGED guitar method, using octave shapes rather than open position chord shapes for ease and simplicity of use.

Octave Method for Low B : 5-String Bass Paper Book


Fodera Emperor II Elite 5

Fodera Emperor II Elite 5

Fodera Emperor II Elite 5

Fodera Emperor II Elite 5

Fodera Emperor II Elite 5

Fodera Emperor II Elite 5

Fodera Emperor II Elite 5

Fodera Emperor II Elite 5

Fodera Emperor II Elite 5


AGEDB octaves (BEADG : 5-string bass standard tuning)
A minor-diminished arpeggio : General

In this BLOGoZON we take a look at the individual A minor-diminished arpeggio box shapes.....

Individual AGEDB octaves shape names

and join them all together for 5-string bass in standard low B tuning to form one long AGEDB octaves chain.

AGEDB octaves logo

The AGEDB octaves sequence is shown for A natural in the diagram that follows:-

AGEDB octaves fingerboard : A natural octaves

GuitarPro6 fingerboard : A natural octaves

GuitarPro6 A natural octaves

The diagrams that follow show all of the A minor-diminished arpeggio notes plotted over the 5-string bass' fretboard in the AGEDB octaves and GuitarPro6 styles:-

AGEDB octaves fingerboard A minor-diminished arpeggio note names

GuitarPro6 fingerboard : A minor arpeggio

GuitarPro6 A minor arpeggio

GuitarPro6 fingerboard : A diminished arpeggio

GuitarPro6 A diminished arpeggio

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes rather than note names - as these are universal to all scales, arpeggios and chords rather than specific to one particular root note - with this in mind the intervals for the A minor-diminished arpeggio are detailed below in the
AGEDB octaves
manner:-

AGEDB octaves fingerboard A minor-diminished arpeggio note intervals

The tables and tabbed panels below detail all five box shapes for the A minor-diminished arpeggio in the
AGEDB octaves
style.


AGEDB octaves (BEADG : 5-string bass standard tuning)
A minor-diminished arpeggio : YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

AGEDB octaves A minor-diminished : 3Am1 box shape pdf
AGEDB octaves A minor-diminished : 4Gm1 box shape pdf
AGEDB octaves A minor-diminished : 4Em2 box shape pdf
AGEDB octaves A minor-diminished : 5Dm2 box shape pdf
AGEDB octaves A minor-diminished : 5Bm3 box shape pdf
AGEDB octaves A minor-diminished : 3Am1 box shape at 12 pdf

AGEDB octaves (BEADG : 5-string bass standard tuning)
A minor-diminished arpeggio : Box shapes on YouTube

  • 3Am1
  • 4Gm1
  • 4Em2
  • 5Dm2
  • 5Bm3
  • 3Am1 at 12

GuitarPro6 3Am1 box shape

GuitarPro6 4Gm1 box shape

GuitarPro6 4Em2 box shape

GuitarPro6 5Dm2 box shape

GuitarPro6 5Bm3 box shape

GuitarPro6 3Am1 box shape at 12


AGEDB octaves (BEADG : 5-string bass standard tuning)
A minor-diminished arpeggio : Box shapes & TAB

  • 3Am1
  • 4Gm1
  • 4Em2
  • 5Dm2
  • 5Bm3
  • 3Am1 at 12

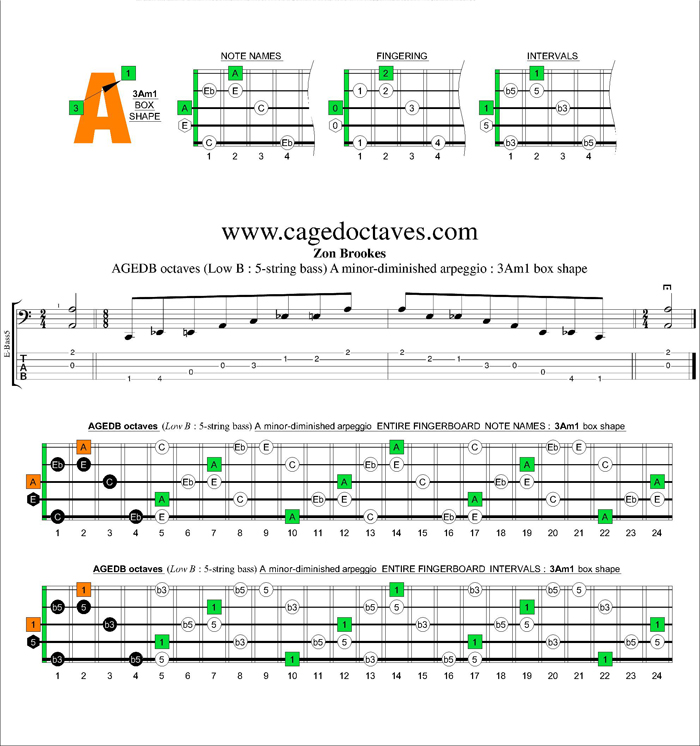

AGEDB octaves A minor-diminished arpeggio : 3Am1 box shape

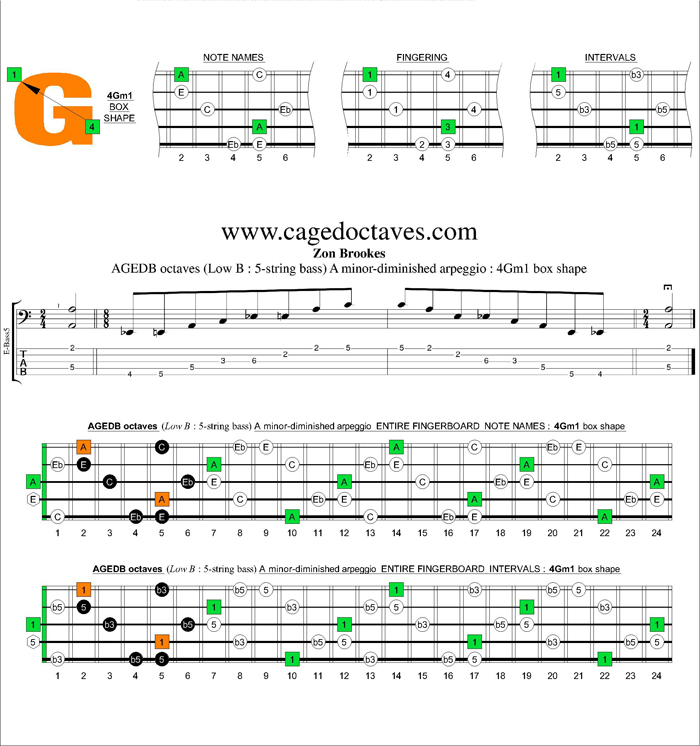

AGEDB octaves A minor-diminished arpeggio : 4Gm1 box shape

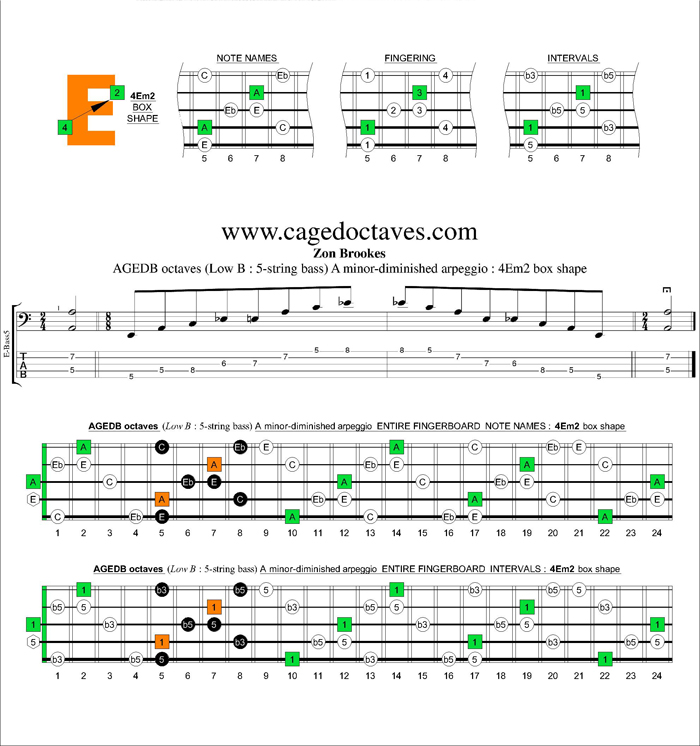

AGEDB octaves A minor-diminished arpeggio : 4Em2 box shape

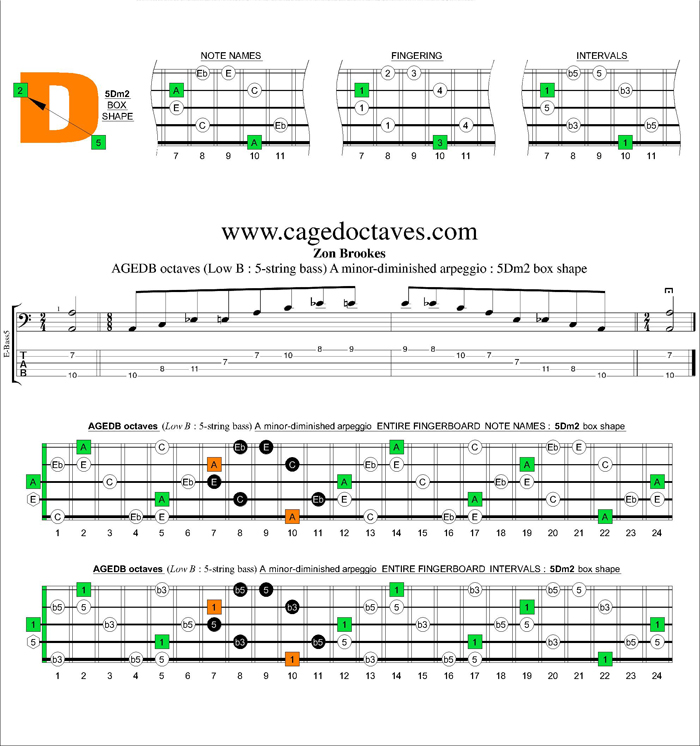

AGEDB octaves A minor-diminished arpeggio : 5Dm2 box shape

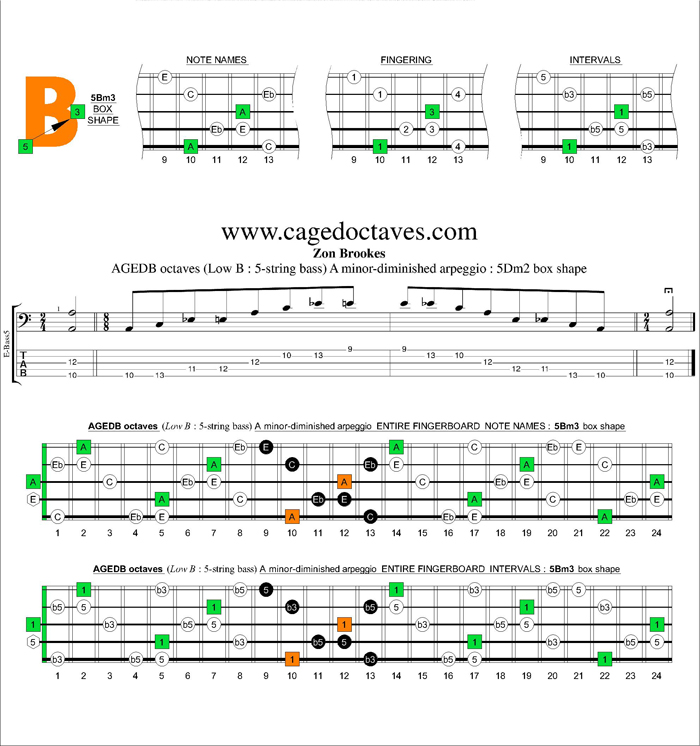

AGEDB octaves A minor-diminished arpeggio : 5Bm3 box shape

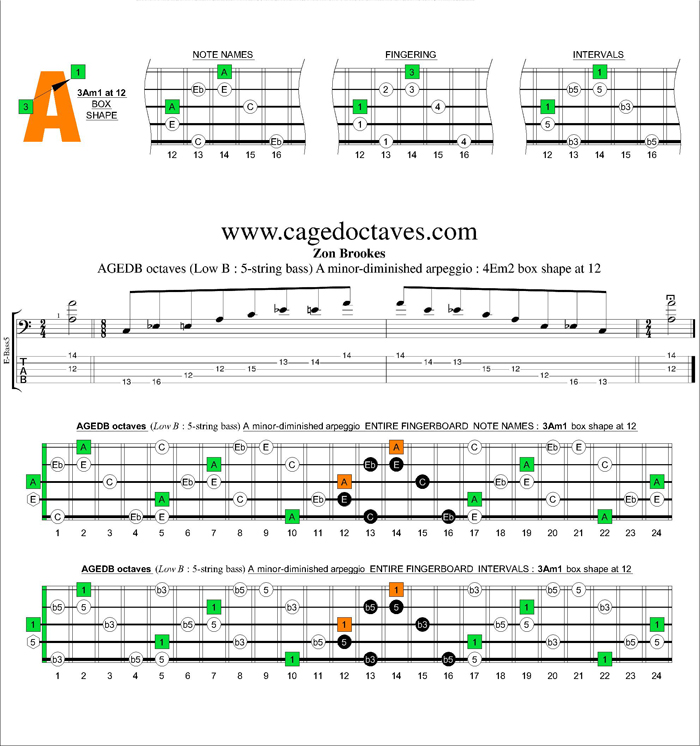

AGEDB octaves A minor-diminished arpeggio : 3Am1 box shape at 12


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5B3 - being repeated at the 12th fret).

The video shown to the right demonstrates the AGEDB octaves chain-linked sequence for the A minor-diminished arpeggio box shapes.



The complete TAB for the previous exercise follows:-

GuitarPro6 A minor-diminished arpeggio box shapes TAB


The box shapes for the previous exercise follow:-

AGEDB octaves A minor-diminished arpeggio box shapes

AGEDB octaves : 5-string bass in Low B (BEADG tuning)
A minor-diminished arpeggio
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

AGEDA octaves A minor-diminished arpeggio box shapes pdf

AGEDB octaves A minor-diminished arpeggio box shapes GuitarPro6 TAB pdfAGEDB octaves A minor-diminished arpeggio box shapes GuitarPro6 TAB pdf


AGEDA octaves (BEADG : 5-string bass standard tuning)
A minor-diminished arpeggio : Overall fretboard box shapes

AGEDB octaves A minor-diminished arpeggio box shapes : entire fretboard notes

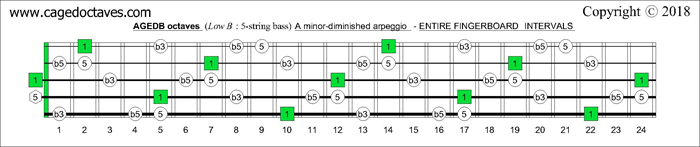

AGEDB octaves A minor-diminished arpeggio box shapes : entire fretboard intervals
