Bernard Edwards was the man where funk/soul/disco bass lines were concerned, his best work being heard with the likes of Chic and Sister Sledge.
Bassline Publishing produce a 20 song tab book with all the best of Edwards' bass-lines (not available in US). Bernard originally played a BC Rich Eagle - the modern budget version is shown in the photo below. However he is better known for his association with the Music Man Stingray bass - the original is now owned by John Taylor of Duran Duran (bequethed to John in Bernard's will).

BC Rich Eagle bass


CAGED4BASS : 4-string bass in standard EADG tuning
C major scale (ionian mode) : General

CAGED4BASS

Can the CAGED octaves memorisation method be directly applied to the 4-string bass guitar?

Answer: Yes - but not without some serious lateral thinking.

The problem is that the 4-string bass has one too few strings to allow a standard CAGED octaves system to be generated (this is not the case with the 5 and 6-string bass guitars - see BLOGoZON No. 60 and
BLOGoZON No.62 respectively for details). Additionally the original CAGED guitar system is based upon the chaining-together of the open position chord shapes C A G E D and obviously these are NOT available on a 4-string bass guitar.
To overcome this problem a NULL string needs to be introduced i.e. an imaginary extra string. Rather than go with the 5-string bass and introduce an extra low B string the CAGED octaves approach will be to adopt the first string from a 6-string bass i.e. an imaginary high C string (this will also tie the two instruments together in a coherant manner for future use.)

NOTE: the extra string is not tuned to B (as would the comparison with a standard 6-string guitar) since the gap between ALL the strings will be a PERFECT FOURTH ( unlike the MAJOR THIRD between the guitar's 3rd and 2nd strings) since chords will not be played. The 4-string bass fingerboard plus the extra NULL string would take on the appearance of the drawing that follows:-

NULL string fretboard

Now rather than name the octave shapes after the open position chord shapes - they will instead be named after the open string names - including the imaginary null string tuned to C. The diagram that follows shows the resultant CAGED4BASS methodology.

4bass CAGED octaves

GuitarPro6 C natural octaves

The five octave shapes that are generated are explored in detail in the tabbed panel that follows:-


CAGED4BASS : 4-string bass in standard EADG tuning
C major scale (ionian mode) : Box shape pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

CAGED4BASS C major scale : 3C* box shape pdf
CAGED4BASS C major scale : 3A1 box shape pdf
CAGED4BASS C major scale : 4G1 box shape pdf
CAGED4BASS C major scale : 4E2 box shape pdf
CAGED4BASS C major scale : 2D* box shape pdf
CAGED4BASS C major scale : 3C* box shape at 12 pdf

  • 3C*
  • 3A1
  • 4G1
  • 4E2
  • 2D*
  • 3C* at 12

3C* box

3A1 box

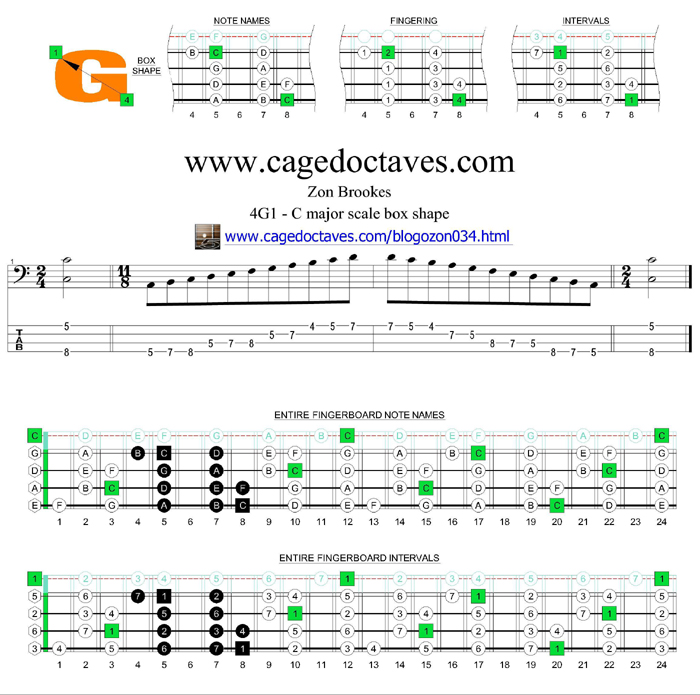

4G1 box

4E2 box

2D* box

3C* box at 12


CAGED4BASS : 4-string bass in standard EADG tuning
C major scale (ionian mode) : Overall box shapes

The box shapes for the previous exercise follows:-

C major scale box shape

CAGED4BASS : 4-string bass in standard EADG tuning
C major scale (ionian mode) : GuitarPro6 TAB

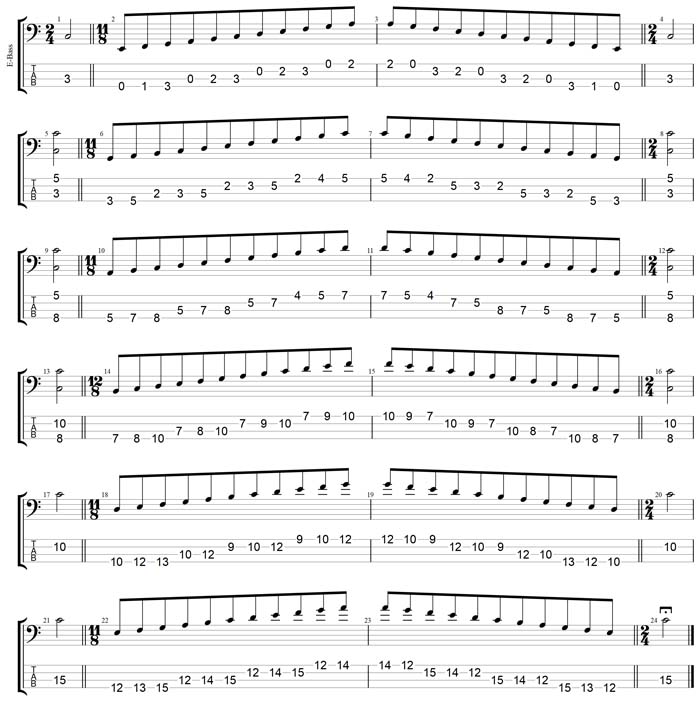

C major scale box shapes TAB

CAGED4BASS : 4-string bass in standard EADG tuning
C major scale : Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

C major scale box shapes pdf

C major scale box shapes pdfC major scale box shapes pdf

CAGED4BASS : 4-string bass in standard EADG tuning
C major scale : Overall fretboard box shapes

CAGED4BASS fingerboard  C major scale box shapes notes

CAGED4BASS fingerboard  C major scale box shapes intervals
