BCAGED octaves (Low B - BEADGC : 6-string bass)
C major arpeggio (3nps) : General

In BLOGoZON No.490 the box shapes for the C major arpeggio were presented
using the BCAGED octaves methodology for 6-string bass (Low B).

In this BLOGoZON we again look at the C major arpeggio, but with 3nps shapes and
join them all together to form one long BCAGED octaves 3nps chain.

BCAGED octaves logo: 6-string bass (Low B)

The diagram that follows shows all seven of the BCAGED octaves shapes for use with
the three notes per string patterns for a 6-string bass (Low B).

BCAGED octaves 3nps logo

The conjoined BCAGED octaves sequence is shown for C natural in the diagram that follows:-

BCAGED octaves fingerboard : C natural octaves

GuitarPro6 fingerboard : C natural octaves

GuitarPro6 C natural octaves

The diagram that follows shows all seven of the BCAGED octaves shapes
for use with the 3nps box shapes for a 6-string bass (Low B) :-

6-String Bass (Low B) : C natural octaves

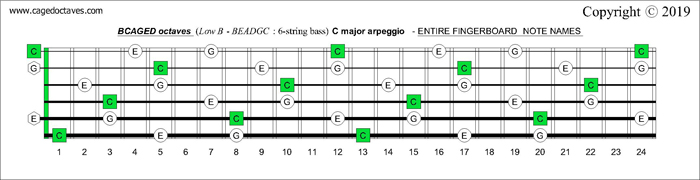

The diagrams that follow show all of the C major arpeggio notes plotted over the
6-string bass' fretboard in the BCAGED octaves and GuitarPro6 styles:-

BCAGED octaves (Low B - BEADGC : 6-string bass) fingerboard C major arpeggio notes

GuitarPro6 fingerboard : C major arpeggio

GuitarPro6 C major arpeggio

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major arpeggio are detailed below in the BCAGED octaves manner:-

BCAGED octaves (Low B - BEADGC : 6-string bass) fingerboard C major arpeggio intervals

The tables and tabbed panels below detail all five box shapes for the
C major arpeggio in the BCAGED octaves style.


BCAGED octaves (Low B - BEADGC : 6-string bass)
C major arpeggio (3nps) : YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 6B4C1 box shape (3nps) pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 6B4A2 box shape (3nps) pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 4A2 box shape (3nps) pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 5G2 box shape (3nps) pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 5E3 box shape (3nps) pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 5E3D1 box shape (3nps) pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 6D3D1 box shape (3nps) pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)C major arpeggio  : 6B4C1 box shape at 12 (3nps) pdf


BCAGED octaves (Low B - BEADGC : 6-string bass)
C major arpeggio (3nps) : YouTube videos

  • 6B4C1
  • 6B4A2
  • 4A2
  • 5G2
  • 5E3
  • 5E3D1
  • 6D3D1
  • 6B4C1 at 12

GuitarPro6 C major arpeggio (3nps) : 6B4C1 box shape

GuitarPro6 C major arpeggio (3nps) : 6B4A2 box shape

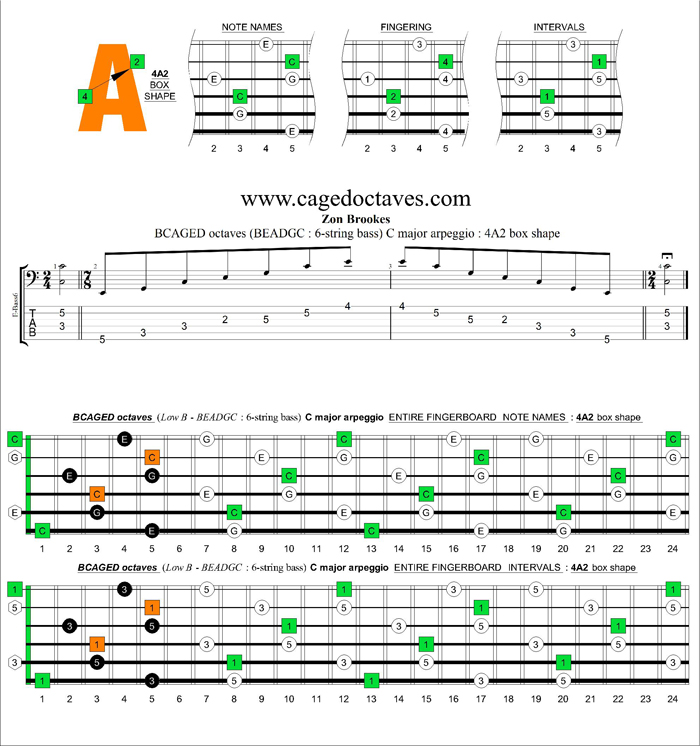

GuitarPro6 C major arpeggio (3nps) : 4A2 box shape

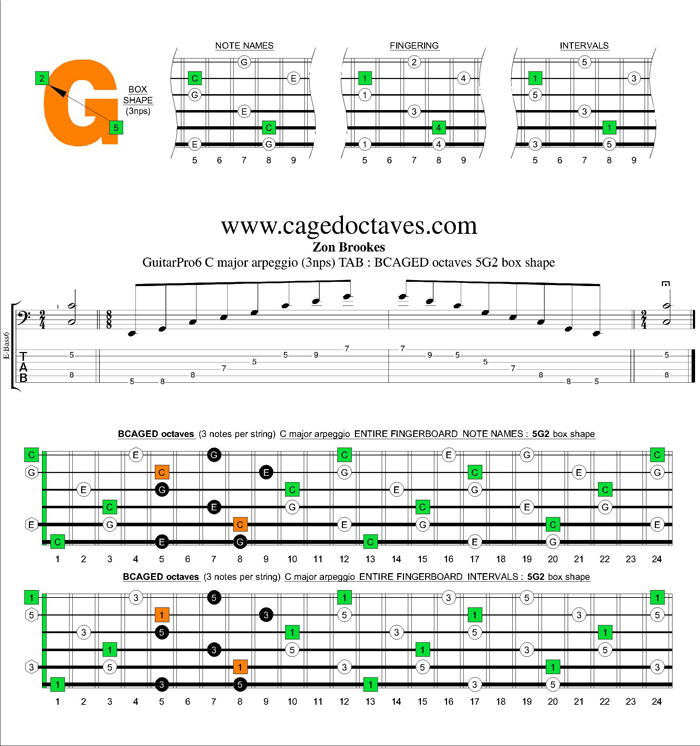

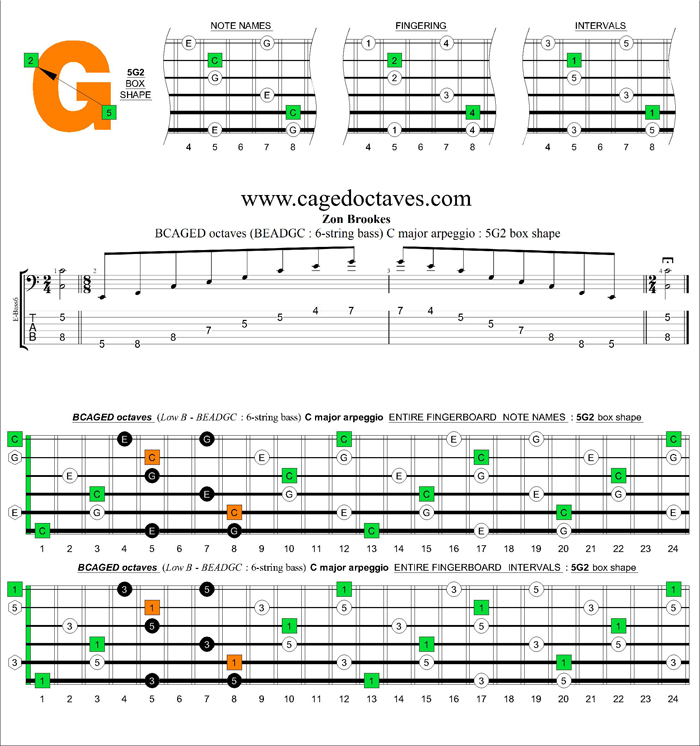

GuitarPro6 C major arpeggio (3nps) : 5G2 box shape

GuitarPro6 C major arpeggio (3nps) : 5E3 box shape

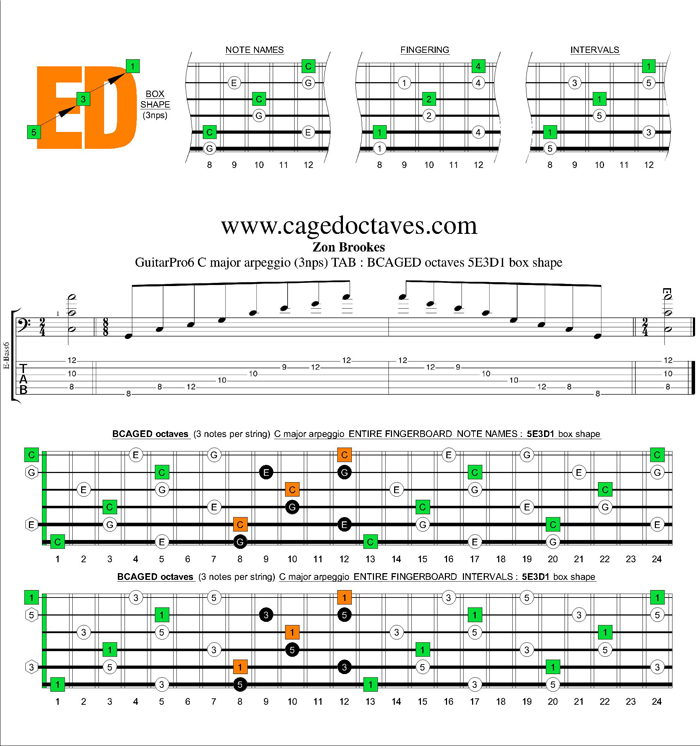

GuitarPro6 C major arpeggio (3nps) : 5E3D1 box shape

GuitarPro6 C major arpeggio (3nps) : 6D3D1 box shape

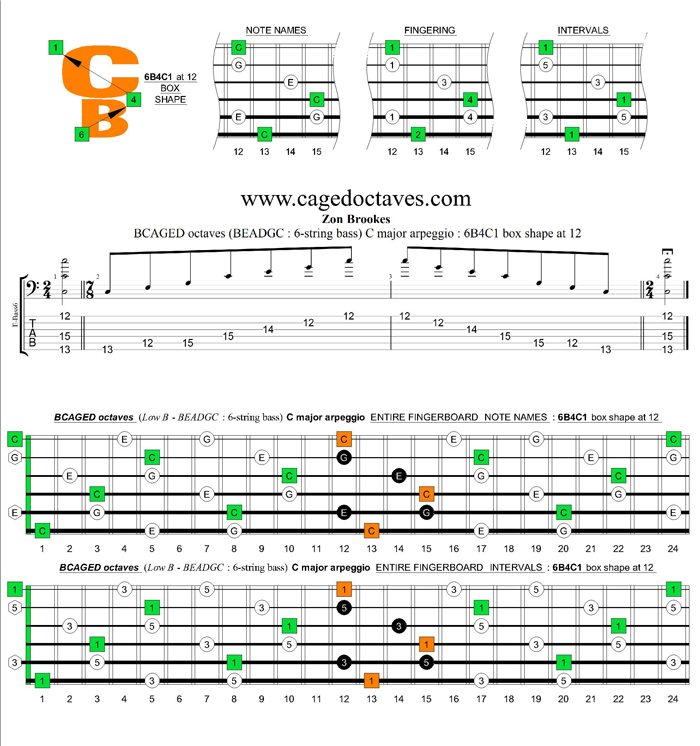

GuitarPro6 C major arpeggio (3nps) : 6B4C1 box shape at 12


  • 6B4C1
  • 6B4A2
  • 4A2
  • 5G2
  • 5E3
  • 5E3D1
  • 6D3D1
  • 6B4C1 at 12

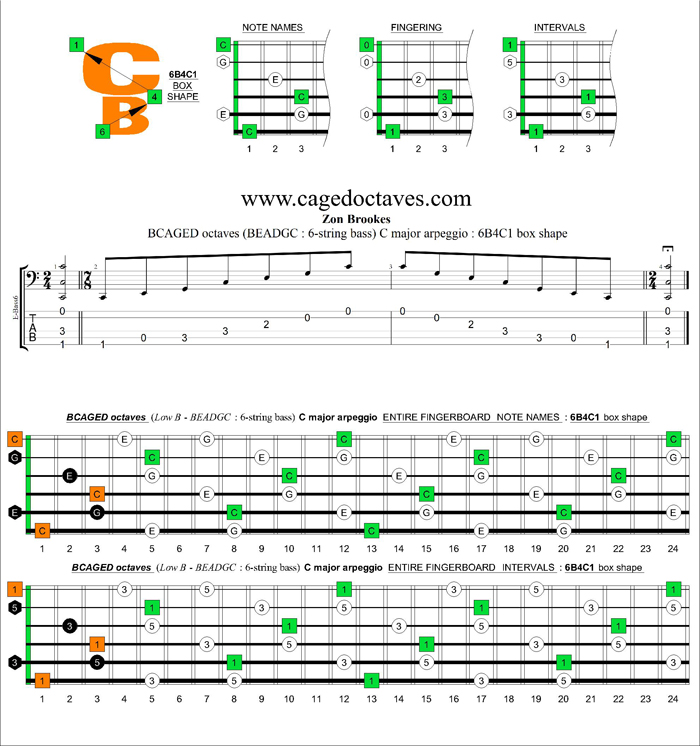

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 6B4C1 box shape (3nps)

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 6B4A2 box shape (3nps)

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 4A2 box shape (3nps)

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 5G2 box shape (3nps)

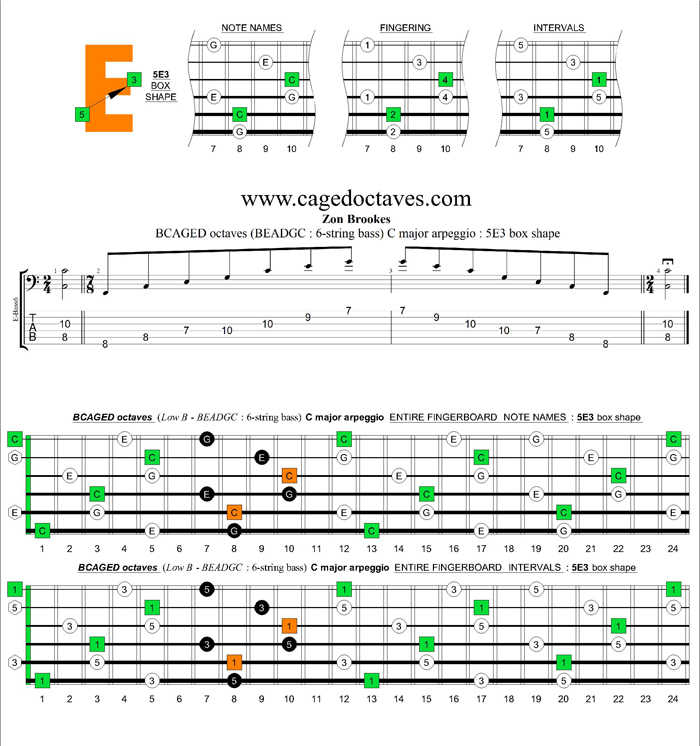

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 5E3 box shape (3nps)

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 5E3D1 box shape (3nps)

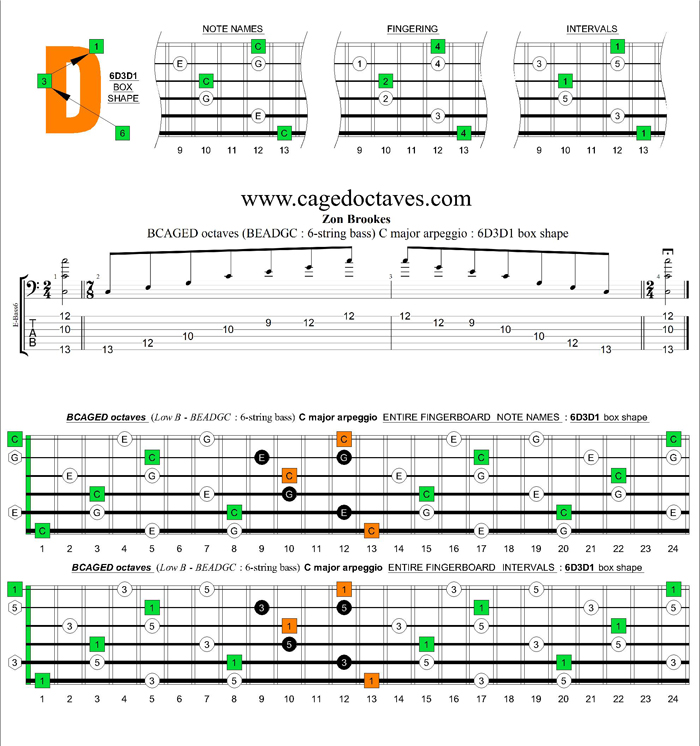

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 6D3D1 box shape (3nps)

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio : 6B4C1 box shape at 12 (3nps)



Once the individual box shapes have been assimilated all seven shapes should be linked together and played in one continuous exercise (with the first shape - 6B4C1 - being repeated at the 12th fret).

The video shown to the right demonstrates the BCAGED octaves chain-linked sequence for the C major scale 3nps box shapes.

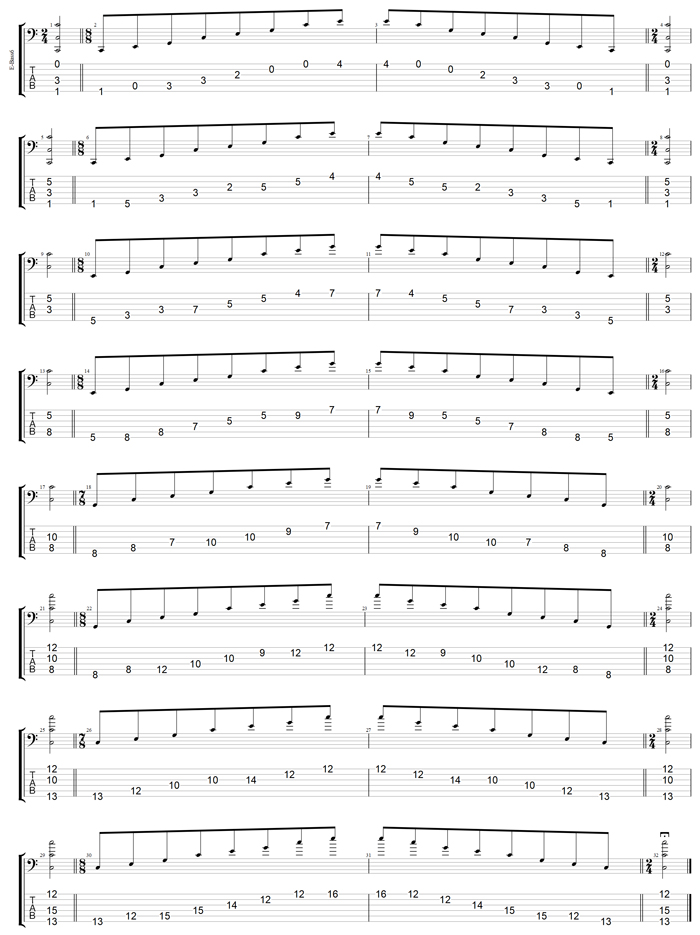

The complete TAB for the previous exercise follows:-

GuitarPro7 TAB : BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio (3nps) box shapes

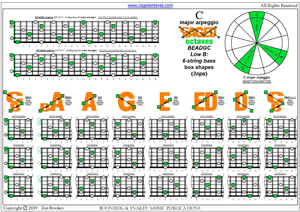

The box shapes for the previous exercise follows:-

BCAGED octaves C major arpeggio (3nps) box shapes

BCAGED octaves (Low B - BEADGC : 6-string bass)
C major arpeggio (3nps) : Box shapes pdf & GuitarPro7 TAB pdf

Flash iconGuitar Pro 6 icon

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio (3nps) box shapes

GuitarPro7 TAB : BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio (3nps) box shapes pdfGuitarPro7 TAB : BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio (3nps) box shapes pdf

BCAGED octaves (Low B - BEADGC : 6-string bass)

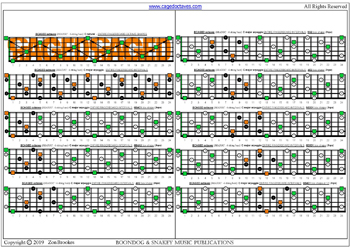

C major arpeggio (3nps) : Overall fretboard box shapes

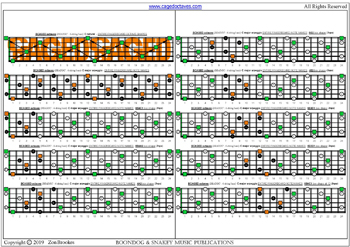

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio (3nps) box shapes : fretboard notes

BCAGED octaves (Low B - BEADGC : 6-string bass) C major arpeggio (3nps) box shapes : fretboard notes
