CAGED octaves : 5-string bass (High C - EADGC)
C major scale (ionian mode) : General
In this BLOGoZON we take a look at the C major scale (ionian mode) and join them all together
for 5-string bass (High C - EADGC) to form one long CAGED octaves chain.
The CAGED octaves sequence is shown for C natural in the diagram that follows:-
GuitarPro6 fingerboard : C natural octaves

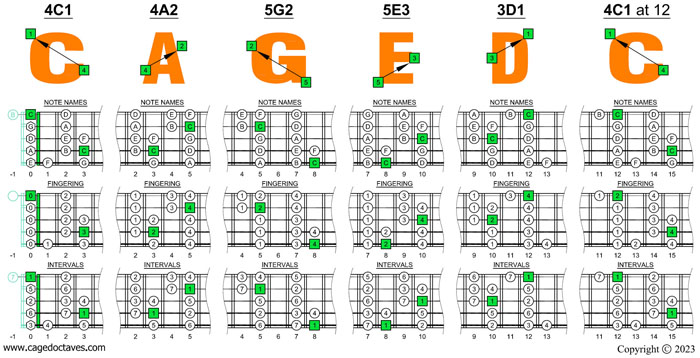

The diagram that follows shows all five of the CAGED octaves shapes for use with the
box shapes for a 5-string bass (High C - EADGC).

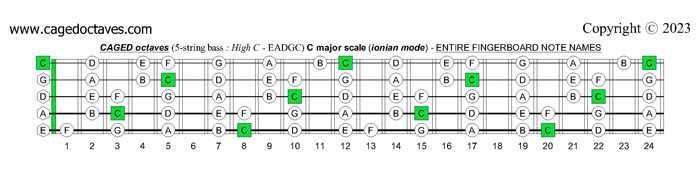

The diagrams that follow show all of the C major scale (ionian mode) notes plotted over the
5-string bass' fretboard in the CAGED octaves and GuitarPro6 styles.
GuitarPro6 fingerboard : C major scale (ionian mode)

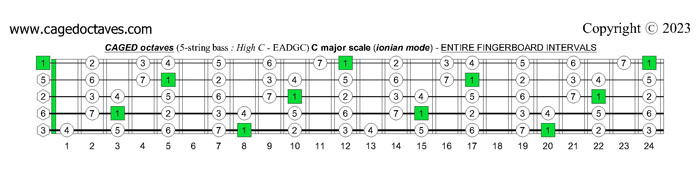

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major scale (ionian mode) are detailed below in the CAGED octaves manner.
The tables and tabbed panels below detail all five box shapes for the
C major scale (ionian mode) in the
CAGED octaves style.
CAGED octaves : 5-string bass (High C - EADGC)
C major scale (ionian mode) : YouTube videos & pdf files
|
|||||
|
|||||
 |
 |
 |
 |
 |
 |
CAGED octaves : 5-string bass (High C - EADGC)
C major scale (ionian mode) : Box shapes on YouTube

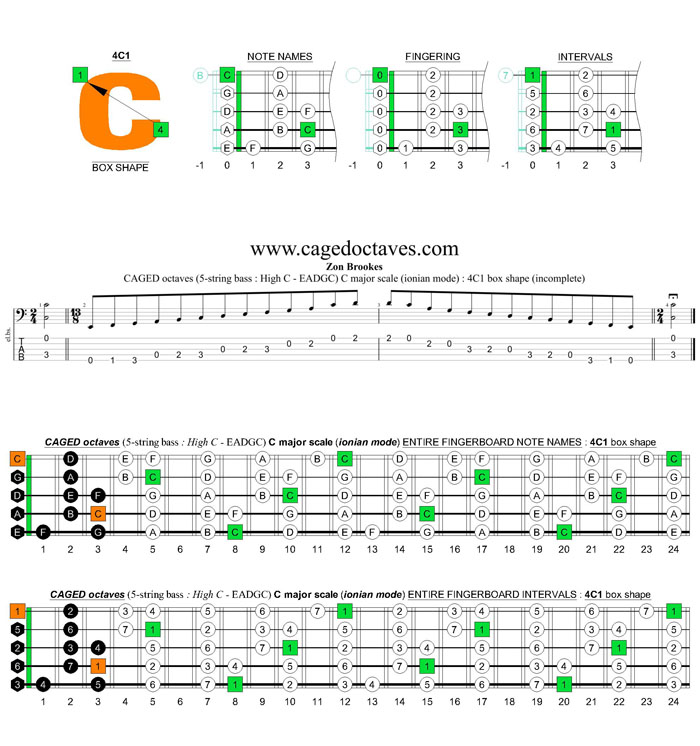

- 4C1

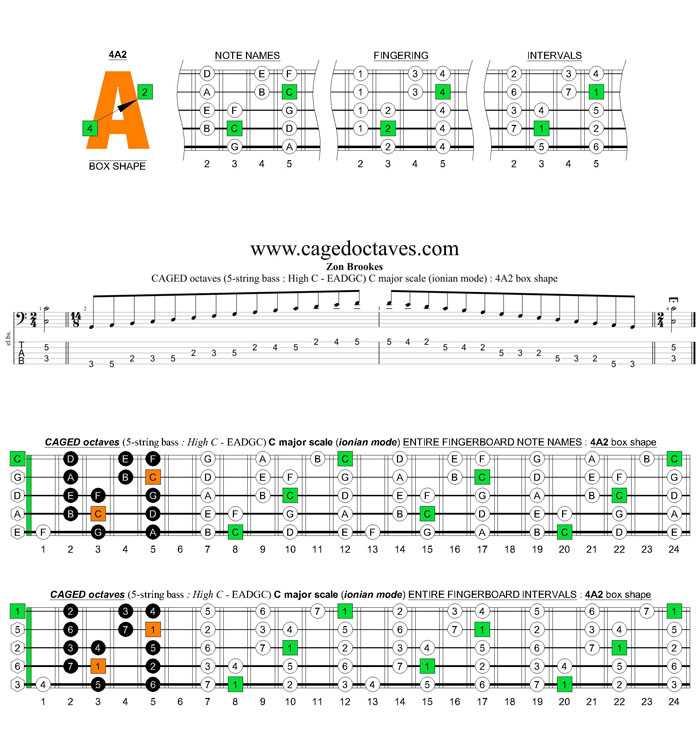

- 4A2

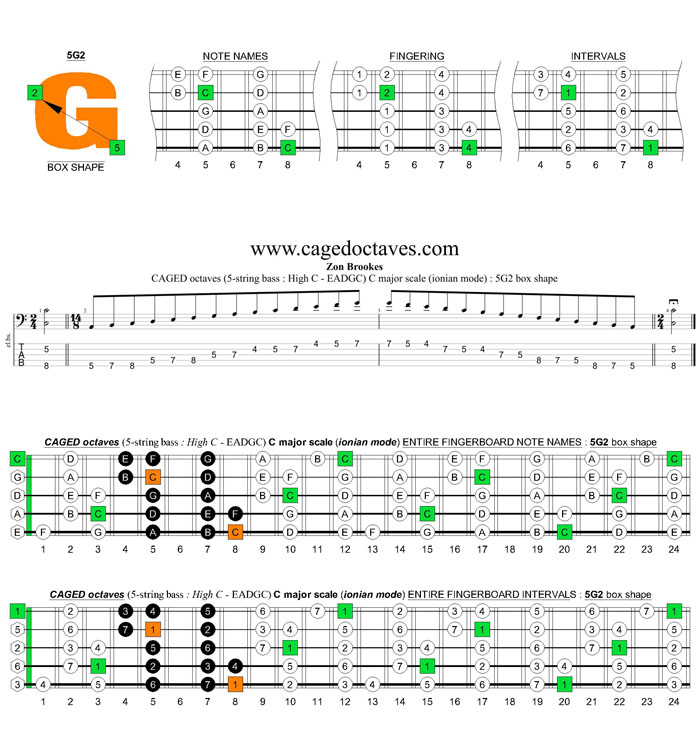

- 5G2
- 5E3
- 3D1
- 4C1 at 12
CAGED octaves : 5-string bass (High C - EADGC)
- 4C1
- 4A2
- 5G2

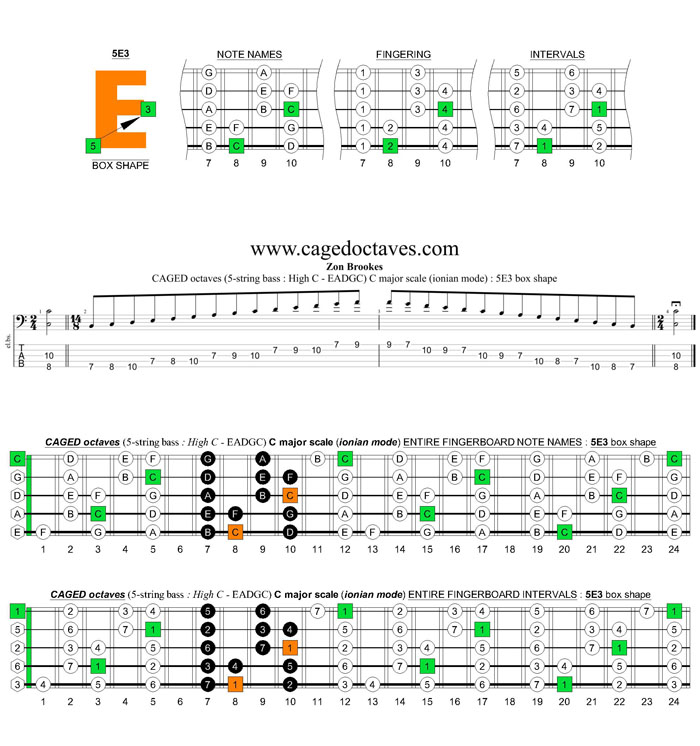

- 5E3

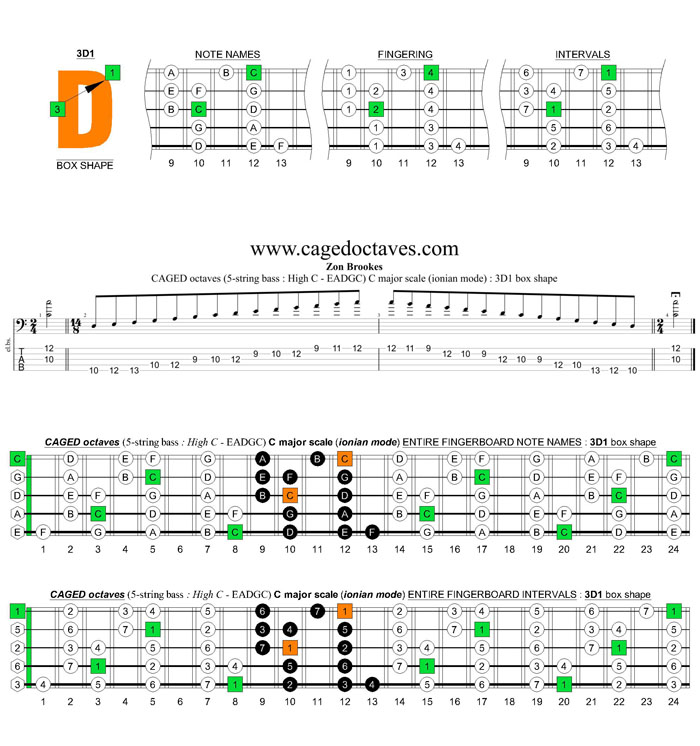

- 3D1

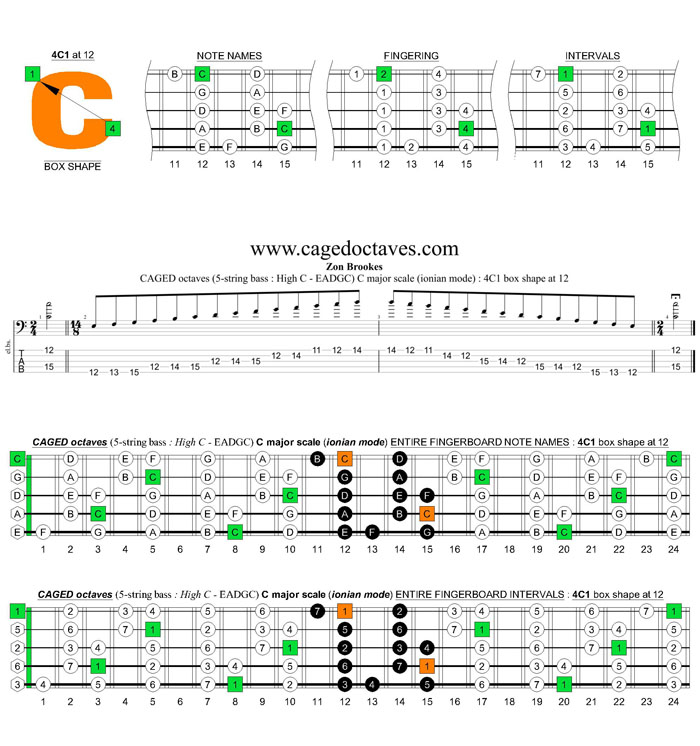

- 4C1 at 12
Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 4C1 - being repeated at the 12th fret). The video shown to the right demonstrates the CAGED octaves chain-linked sequence for the C major scale box shapes. |

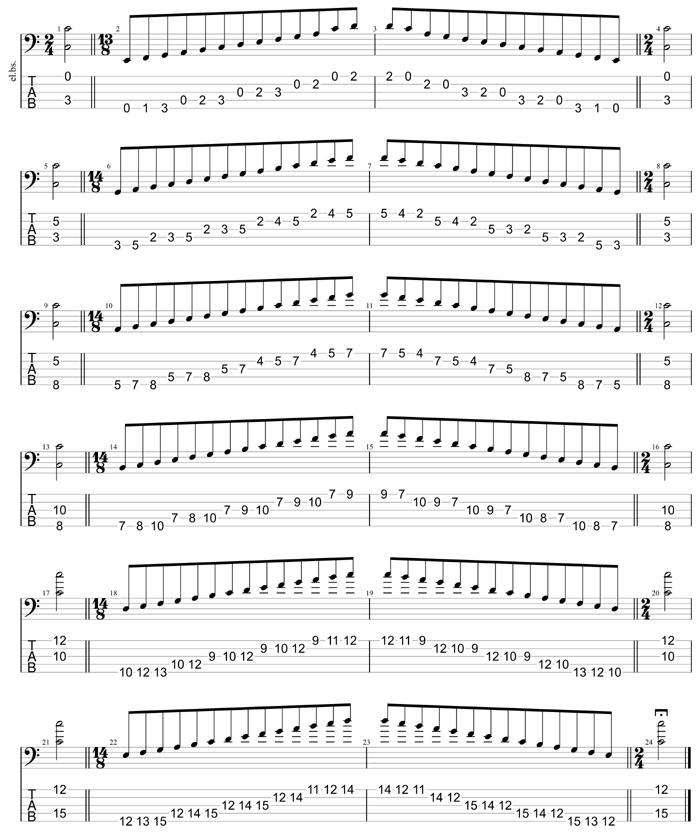

The complete TAB for the previous exercise follows:-
The box shapes for the previous exercise follows:-
CAGED octaves : 5-string bass (High C - EADGC)
C major scale (ionian mode)

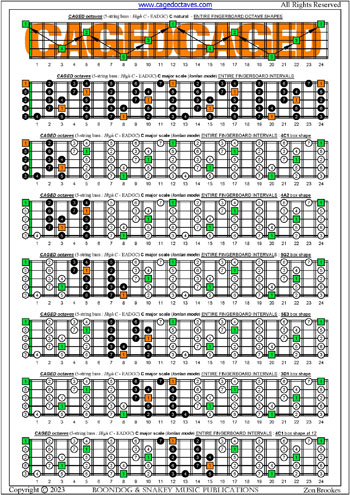

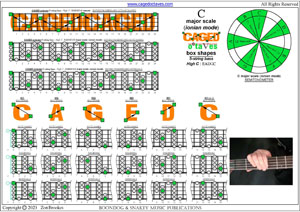

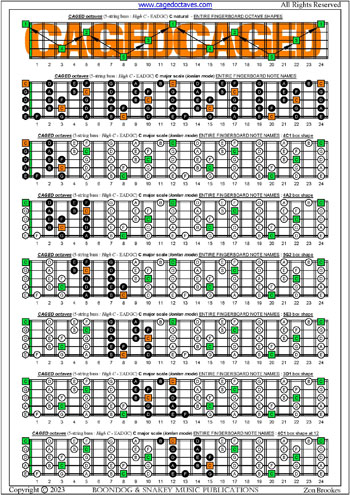

Box shapes pdf & GuitarPro6 TAB pdf
|
|
|
|
CAGED octaves : 5-string bass (High C - EADGC)
C major scale (ionian mode) : Overall fretboard box shapes
|
|
The first box shape located at the nut (4C1 shown above) is incomplete; the B natural note on string 1 would be located at imaginary fret -1, which is obviously unplayable. However this note can be played on string 2 (as shown in the video that follows) but this breaks out of the strict movable CAGED octaves pattern sequence.
|
