CAGED octaves (Baritone 6-string guitar : B1 standard tuning)
C major scale (ionian mode) : General
In this BLOGoZON we take a look at the C major scale (ionian mode) and join them all together
for Baritone 6-string guitar (B1 standard tuning - BEADF#B) to form one long CAGED octaves chain.

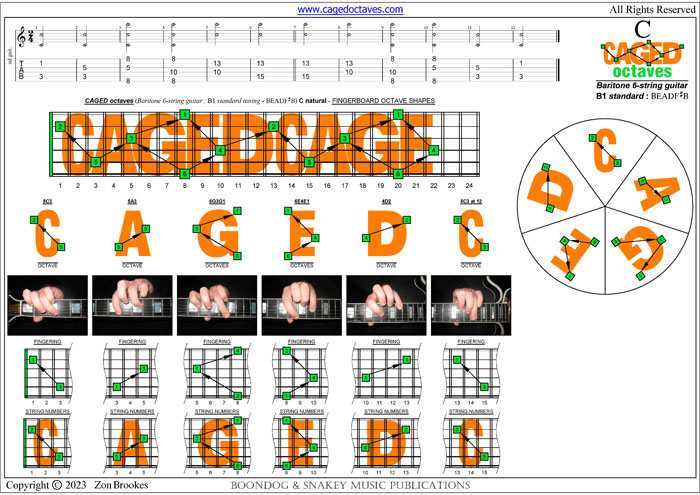

The CAGED octaves sequence is shown for C natural in the diagram that follows:-
GuitarPro6 fingerboard : C natural octaves
The diagram that follows shows all five of the CAGED octaves shapes for use with the
box shapes for a Baritone 6-string guitar (B1 standard tuning - BEADF#B)

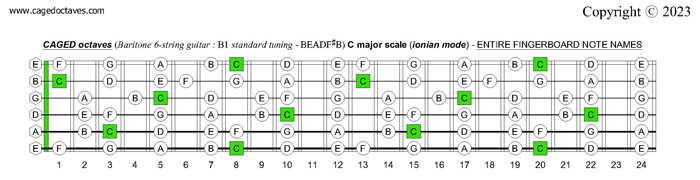

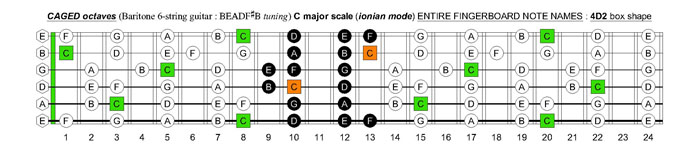

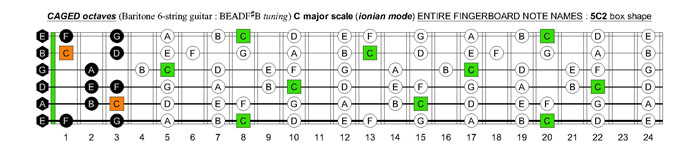

The diagrams that follow show all of the C major scale (ionian mode) notes plotted over the
Baritone 6-string guitar's (B1 standard tuning - BEADF#B)
fretboard
in the CAGED octaves and GuitarPro6 styles.
GuitarPro6 fingerboard : C major scale (ionian mode)
As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major scale (ionian mode) are detailed below in the CAGED octaves manner.
The tables and tabbed panels below detail all five box shapes for the
C major scale (ionian mode) in the CAGED octaves style.
CAGED octaves (Baritone 6-string guitar : B1 standard tuning)
C major scale (ionian mode) : YouTube videos & pdf files
|
|||||
|
|||||
 |
 |
 |
 |
 |
 |
CAGED octaves (Baritone 6-string guitar : B1 standard tuning)
C major scale (ionian mode) : Box shapes on YouTube
- 5C2

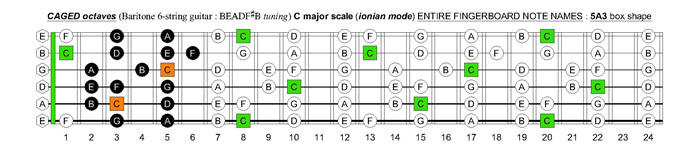

- 5A3

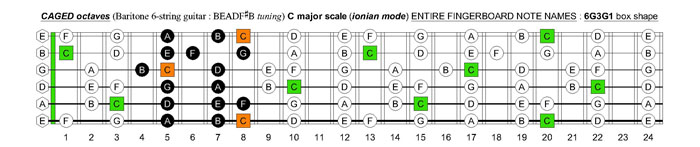

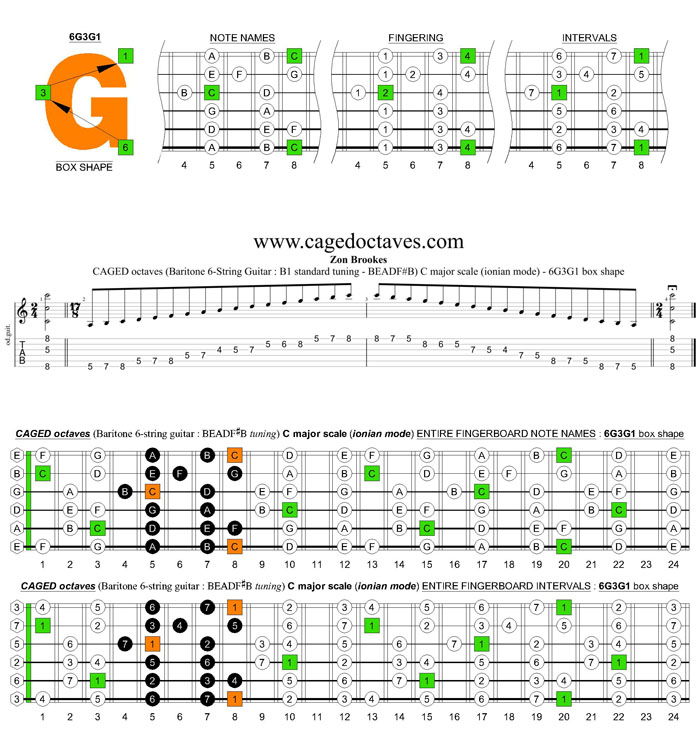

- 6G3G1

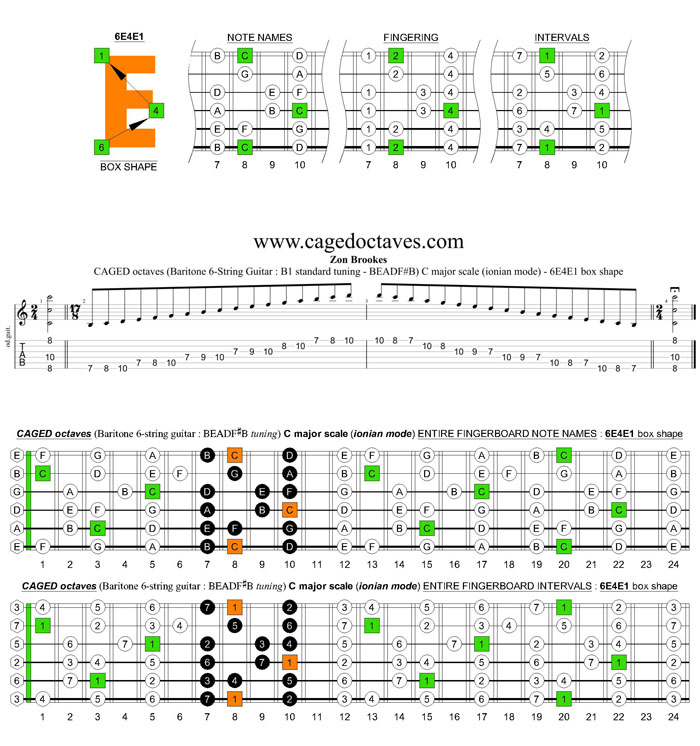

- 6E4E1

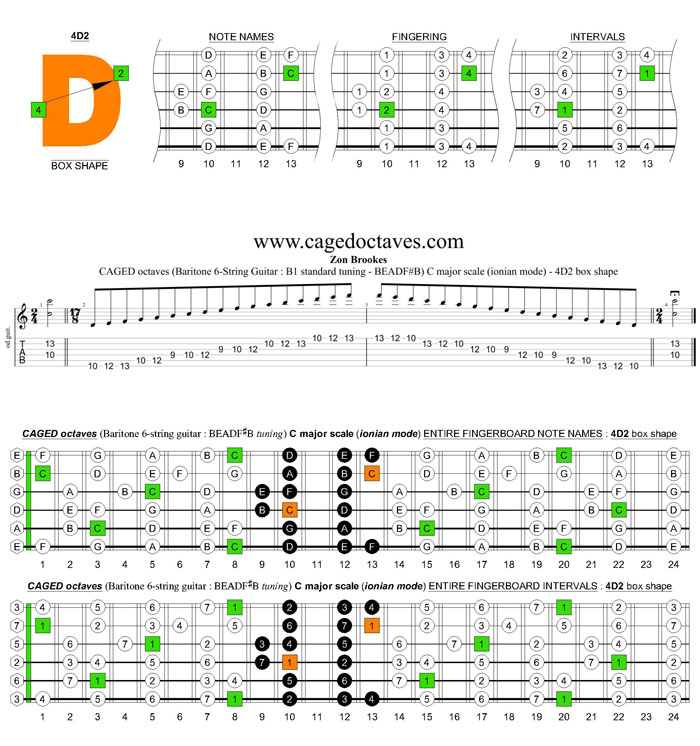

- 4D2
- 5C2 at 12
CAGED octaves (Baritone 6-string guitar : B1 standard tuning)
C major scale (ionian mode) : Box shapes & TAB

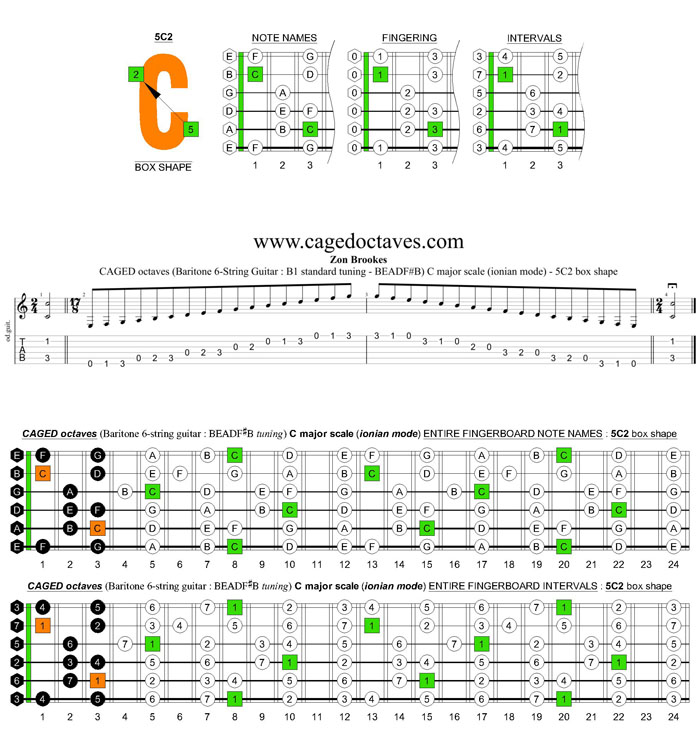

- 5C2

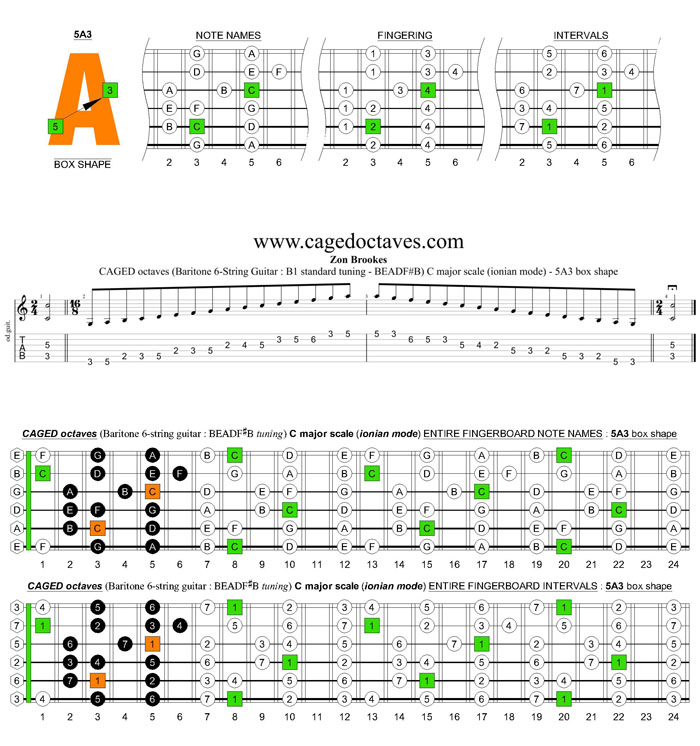

- 5A3
- 6G3G1
- 6E4E1
- 4D2

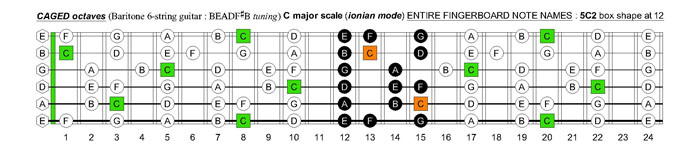

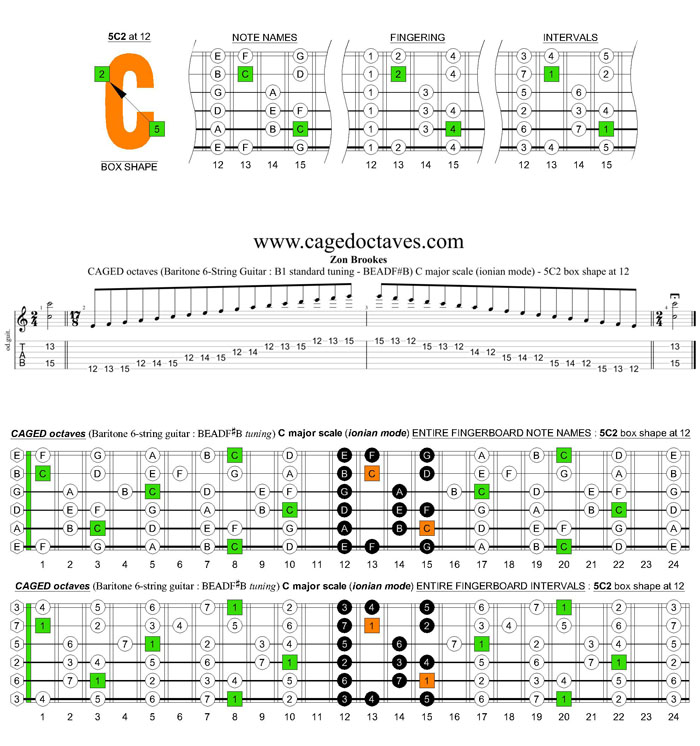

- 5C2 at 12
Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5C2 - being repeated at the 12th fret).

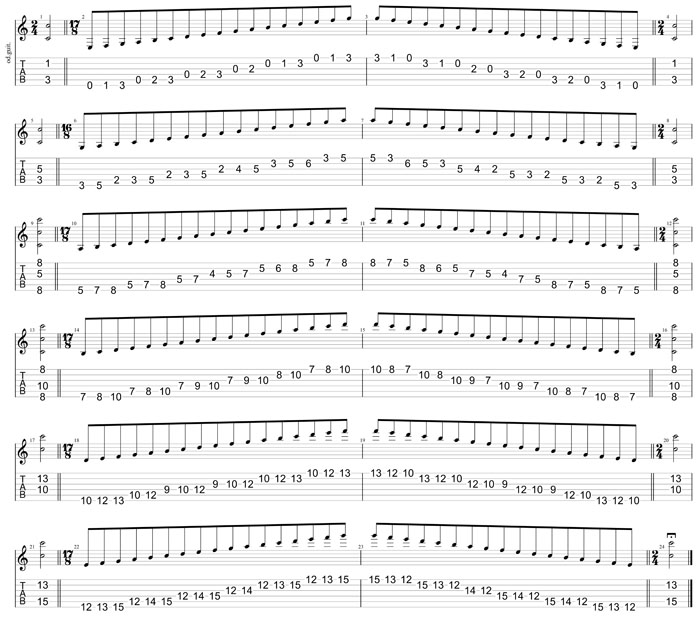

The complete GuitarPro8 TAB for the previous exercise follows:-

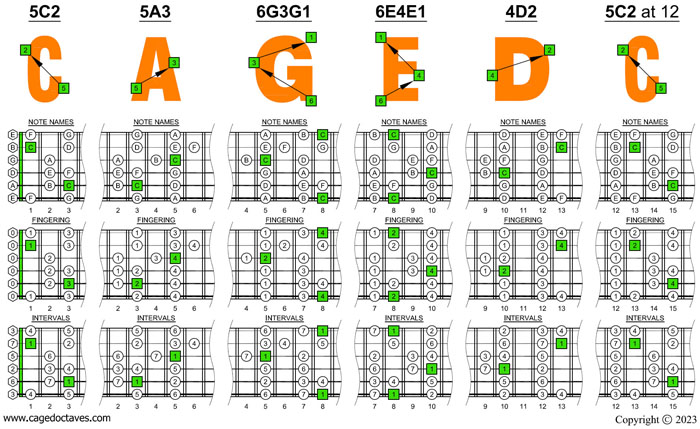

The box shapes for the previous exercise follow:-
CAGED octaves (Baritone 6-string guitar : B1 standard tuning)
C major scale (ionian mode)

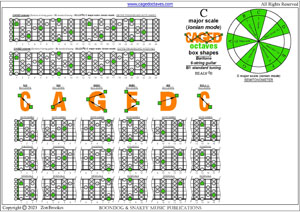

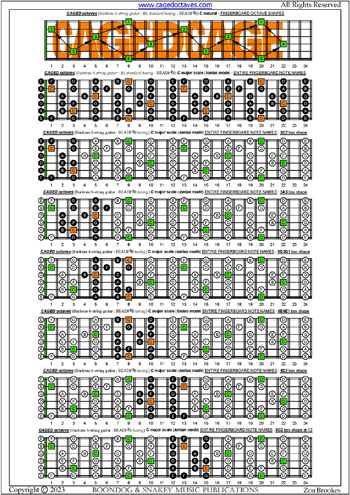

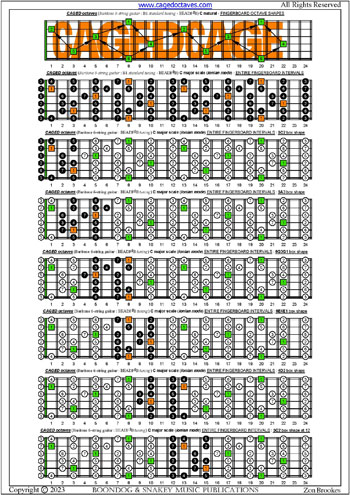

Box shapes pdf & GuitarPro6 TAB pdf
|
|
|
|
CAGED octaves (Baritone 6-string guitar : B1 standard tuning)
C major scale (ionian mode) : Overall fretboard box shapes
|
|
|
