BAGED octaves : 7-string guitar (Low B - BEADGBE)
C pentatonic major scale - 1313131 sweeps : General

In BLOGoZON No.593 the pseudo 3nps box shapes for the C pentatonic major scale
were presented using the BAGED octaves methodology for 7-string guitar (Low B - BEADGBE).

BAGED octaves logo : 7-string guitar (Low B: BEADGBE)

In this BLOGoZON we look at the C pentatonic major scale, again, but as 1313131 sweep patterns.

The diagram that follows shows all five of the BAGED octaves shapes for use with the
1313131 sweep patterns for a 7-string guitar (Low B - BEADGBE).

BAGED octaves: pseudo 3nps octaves shapes

Below the BAGED octaves sequence is shown for C natural in the diagram that follows.

C natural octave shapes : 7-string guitar (Low B: BEADGBE)

GuitarPro6 fingerboard : C natural octaves

GuitarPro6 C natural octaves

The diagram that follows shows all five of the BAGED octaves shapes for use with the
box shapes for a 7-string guitar (Low B: BEADGBE).

BAGED octaves : C natural octaves

The diagrams that follow show all of the C pentatonic major scale notes plotted over
the 7-string guitar's fretboard in the BAGED octaves and GuitarPro6 styles.

BAGED octaves C pentatonic major scale entire fretboard notes

GuitarPro6 fingerboard : C pentatonic major scale

GuitarPro6 C pentatonic major scale

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C pentatonic major scale are detailed below in the BAGED octaves manner.

BAGED octaves C pentatonic major scale entire fretboard intervals

The tables and tabbed panels below show all five of the BAGED octaves shapes for use with the
1313131 sweep patterns for a 7-string guitar (Low B - BEADGBE).


BAGED octaves : 7-string guitar (Low B - BEADGBE)
C pentatonic major scale - 1313131 sweeps
YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

BAGED octaves C pentatonic major scale 131313 sweep pattern - 7B5B2:5A3 box shape pdf
BAGED octaves C pentatonic major scale 131313 sweep pattern - 5A3:6G3G1 box shape pdf
BAGED octaves C pentatonic major scale 131313 sweep pattern - 6G3G1:6E4E1 box shape pdf
BAGED octaves C pentatonic major scale 131313 sweep pattern - 6E4E1:7D4D2 box shape pdf
BAGED octaves C pentatonic major scale 131313 sweep pattern - 7D4D2:7B5B2 box shape pdf
BAGED octaves C pentatonic major scale 131313 sweep pattern - 7B5B2:5A3 box shape at 12 pdf

BAGED octaves : 7-string guitar (Low B - BEADGBE)
C pentatonic major scale - 1313131 sweeps : YouTube videos

  • 7B5B2:5A3
  • 5A3:6G3G1
  • 6G3G1:6E4E1
  • 6E4E1:7D4D2
  • 7D4D2:7B5B2
  • 7B5B2:5A3 at 12

GuitarPro6 7B5B2:5A3 octave shapes

GuitarPro6 7B5B2:5A3 C pentatonic major scale 1313131 sweep pattern

GuitarPro6 5A3:6G3G1 octave shapes

GuitarPro6 5A3:7G3G1 C pentatonic major scale 1313131 sweep pattern

GuitarPro6 6G3G1:6E4E1 octave shapes

GuitarPro6 6G3G1:6E4E1 C pentatonic major scale 1313131 sweep pattern

GuitarPro6 6E4E1:7D42 octave shapes

GuitarPro6 6E4E1:7D4D2 C pentatonic major scale 1313131 sweep pattern

GuitarPro6 7D4D2:7B5B2 octave shapes

GuitarPro6 7D4D2:7B5B2 C pentatonic major scale 1313131 sweep pattern

GuitarPro6 7B5B2:5A3 at 12 octave shapes

GuitarPro6 7B5B2:5A3 at 12 C pentatonic major scale 1313131 sweep pattern


BAGED octaves : 7-string guitar (Low B - BEADGBE)
C pentatonic major scale - 1313131 sweeps : Box shapes and TAB

  • 7B5B2:5A3
  • 5A3:6G3G1
  • 6G3G1:6E4E1
  • 6E4E1:7D4D2
  • 7D4D2:7B5B2
  • 7B5B2:5A3 at 12

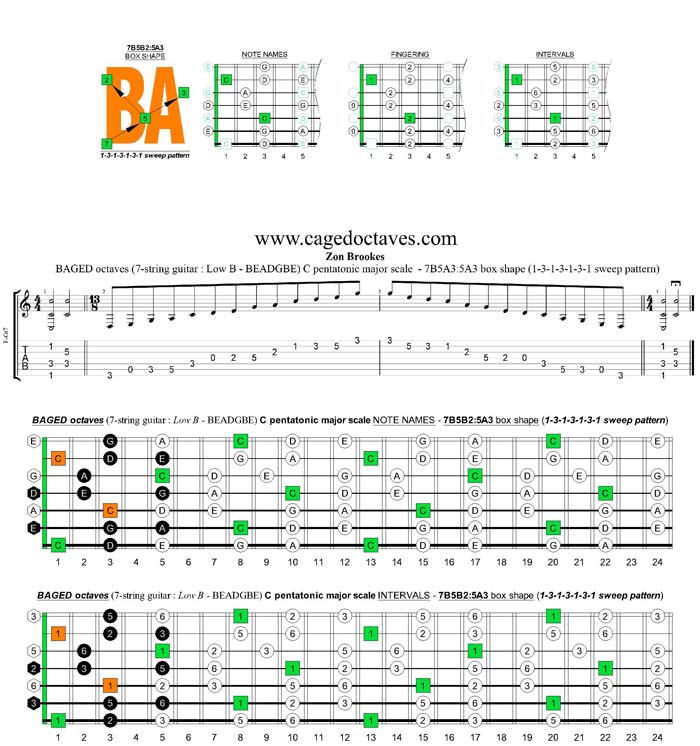

BAGED octaves C pentatonic major scale 1313131 sweep pattern: 7B5B2:5A3 box shape

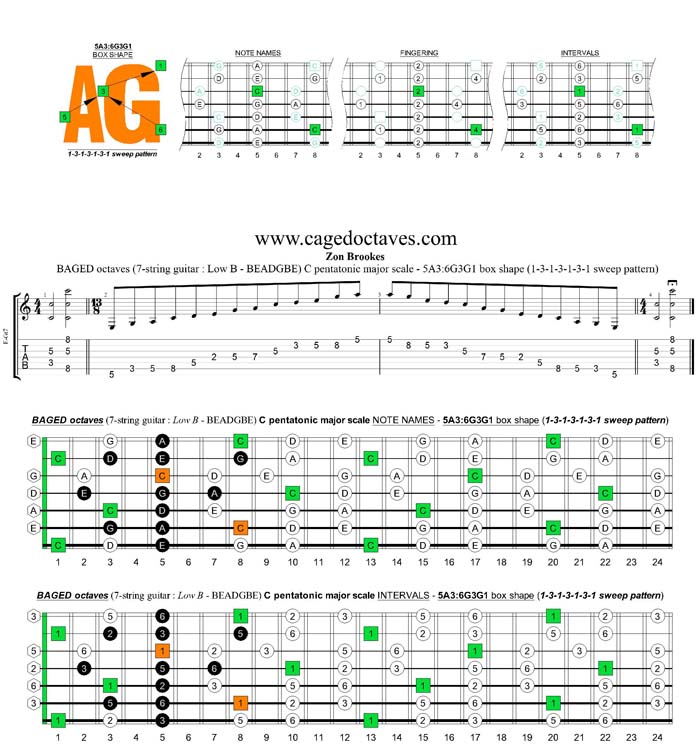

BAGED octaves C pentatonic major scale 1313131 sweep pattern: 5A3:6G3G1 box shape

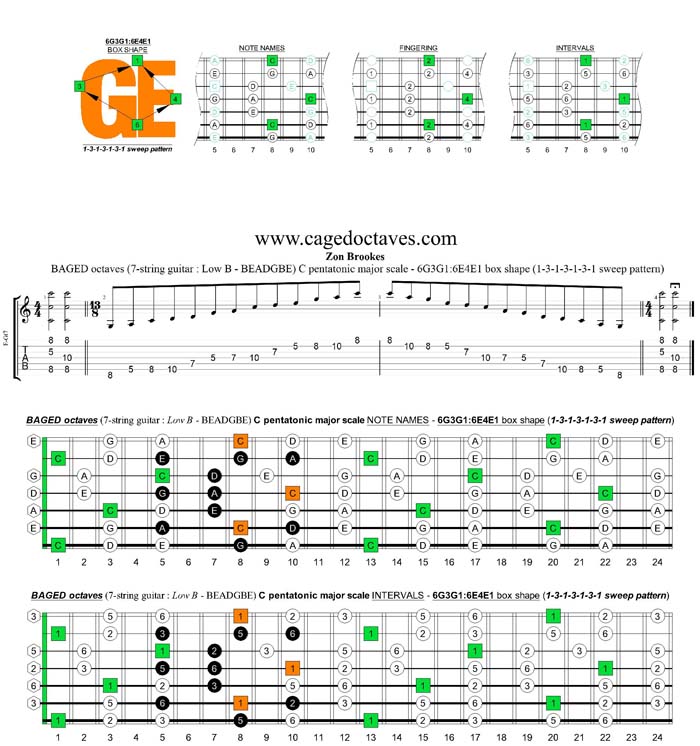

BAGED octaves C pentatonic major scale 1313131 sweep pattern: 6G3G1:6E4E1 box shape

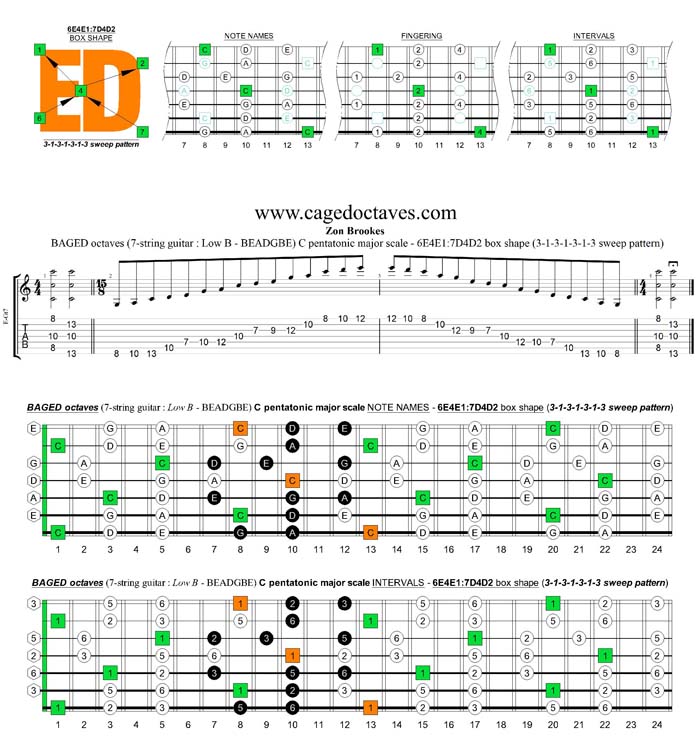

BAGED octaves C pentatonic major scale 1313131 sweep pattern: 6E4E1:7D4D2 box shape

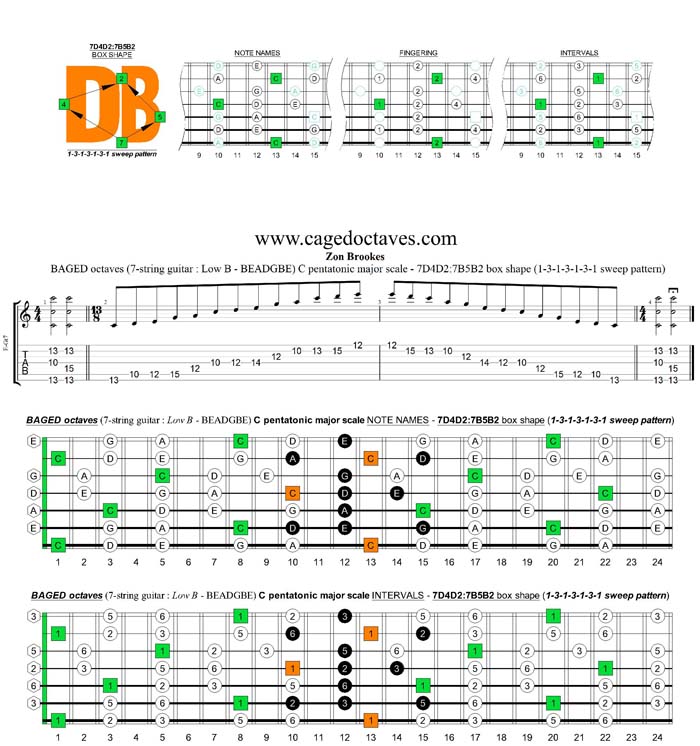

BAGED octaves C pentatonic major scale 1313131 sweep pattern: 7D4D2:7B5B2 box shape

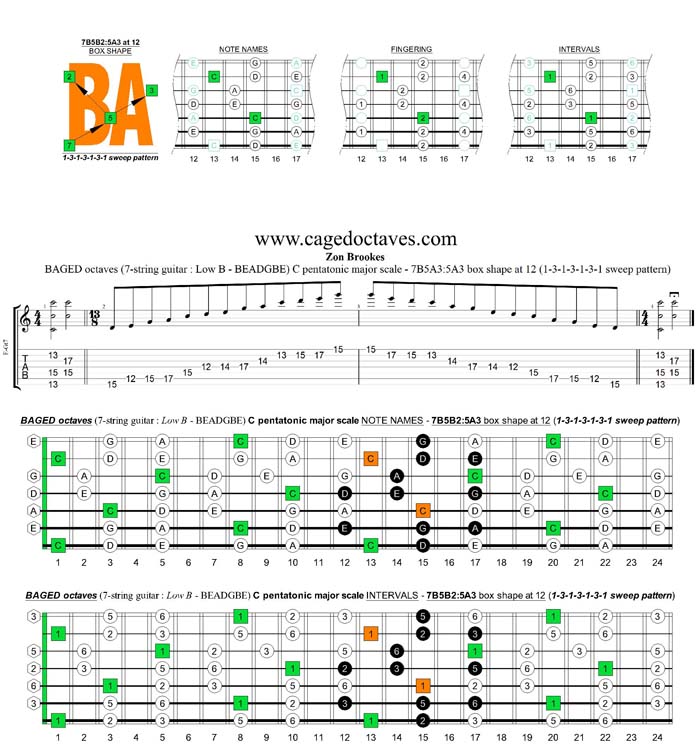

BAGED octaves C pentatonic major scale 1313131 sweep pattern: 7B5B2:5A3 box shape at 12


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 7B5B2:5A3 - being repeated at the 12th fret).

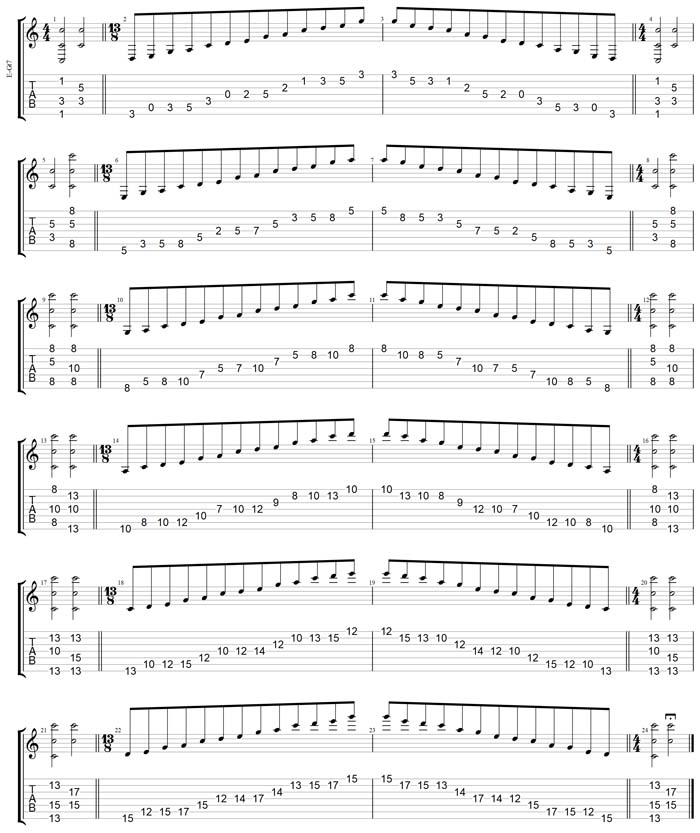

The complete TAB for the previously described exercise follows:-

GuitarPro7 TAB: C pentatonic major scale major - 1313131 sweep patterns

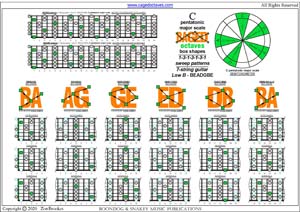

The box shapes for the previous exercise follow:-

BAGED octaves C pentatonic major scale major 1313131 sweep patterns


BAGED octaves : 7-string guitar (Low B - BEADGBE)
C pentatonic major scale - 1313131 sweeps
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

BAGED octaves C pentatonic major scale 1313131 sweep patterns pdf

GuitarPro7 TAB: BAGED octaves C pentatonic major scale 1313131 sweep patterns pdfGuitarPro7 TAB: BAGED octaves C pentatonic major scale 1313131 sweep patterns pdf


BAGED octaves : 7-string guitar (Low B - BEADGBE)
C pentatonic major scale - 1313131 sweeps
Overall fretboard box shapes

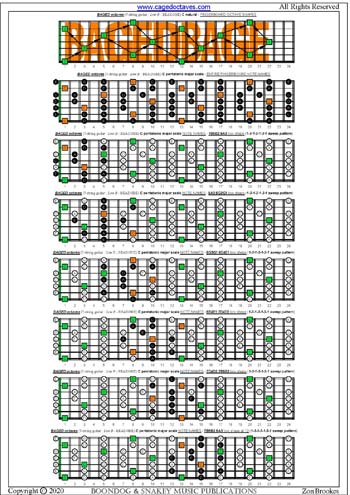

BAGED octaves C pentatonic major scale 1313131 sweep patterns : entire fretboard notes

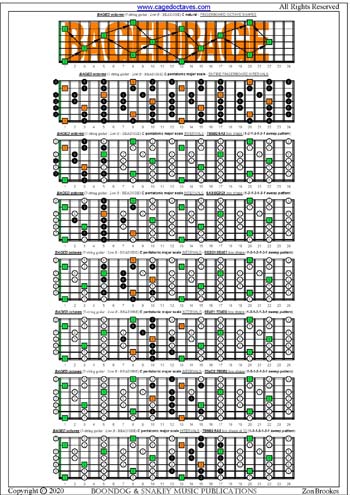

BAGED octaves C pentatonic major scale 1313131 sweep patterns : entire fretboard intervals
