AGEDC octaves : 6-string guitar (Drop D - DADGBE)
A minor-diminished arpeggio : General

In this BLOGoZON we take a look at the A minor-diminished arpeggio and join them all together
for 6-string guitar (Drop D - DADGBE) to form one long AGEDC octaves chain.

AGEDC octaves logo (6-string guitar : Drop D -DADGBE)

Below the 6-string guitar (Drop D - DADGBE) sequence is shown for A natural in the diagram that follows.

AGEDC octaves (6-string guitar : Drop D -DADGBE) - A natural octaves fretboard

GuitarPro6 fingerboard : A natural octaves

GuitarPro6 A natural octaves

The diagram that follows shows all five of the AGEDC octaves shapes for use with the
box shapes for a 6-string guitar (Drop D - DADGBE).

6-String Guitar (Drop D - DADGBE) : A natural octaves

The diagrams that follow show all of the A minor-diminished arpeggio notes plotted over the
6-string guitar's (Drop D - DADGBE) fretboard in the AGEDC octaves style.

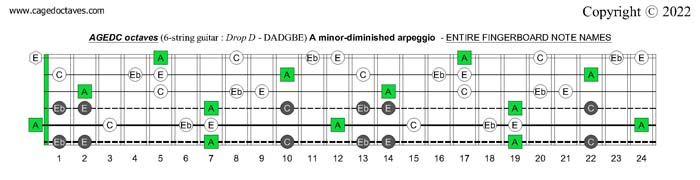

AGEDC octaves (6-string guitar : Drop D - DADGBE) A minor-diminished arpeggio fretboard notes

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
A minor-diminished arpeggio are detailed below in the AGEDC octaves manner.

AGEDC octaves (6-string guitar : Drop D - DADGBE) A minor arpeggio fretboard intervals

The tables and tabbed panels below detail all five box shapes for the
A minor-diminished arpeggio in the AGEDC octaves style.


AGEDC octaves : 6-string guitar (Drop D - DADGBE)
A minor-diminished arpeggio : YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

AGEDC octaves A minor-diminished arpeggio : 5Am3 box shape pdf
AGEDC octaves A minor-diminished arpeggio : 3Gm1 box shape pdf
AGEDC octaves A minor-diminished arpeggio : 6Em4Em1 box shape pdf
AGEDC octaves A minor-diminished arpeggio : 6Dm4Dm2 box shape pdf
AGEDC octaves A minor-diminished arpeggio : 5Cm2 box shape pdf
AGEDC octaves A minor-diminished arpeggio : 5Am3 box shape at 12 pdf

AGEDC octaves : 6-string guitar (Drop D - DADGBE)
A minor-diminished arpeggio : Box shapes on YouTube

  • 5Am3
  • 3Gm1
  • 6Em4Em1
  • 6Dm4Dm2
  • 5Cm2
  • 5Am3 at 12

GuitarPro7 fingerboard  A minor-diminished arpeggio : 5Am3 box shape

GuitarPro7 fingerboard  A minor-diminished arpeggio : 3Gm1 box shape

GuitarPro7 fingerboard  A minor-diminished arpeggio : 6Em4Em1 box shape

GuitarPro7 fingerboard  A minor-diminished arpeggio : 6Dm4Dm2 box shape

GuitarPro7 fingerboard  A minor-diminished arpeggio : 5Cm2 box shape

GuitarPro7 fingerboard  A minor-diminished arpeggio : 5Am3 box shape at 12


AGEDC octaves : 6-string guitar (Drop D - DADGBE)
A minor-diminished arpeggio : Box shapes & TAB

  • 5Am3
  • 3Gm1
  • 6Em4Em1
  • 6Dm4Dm2
  • 5Cm2
  • 5Am3 at 12

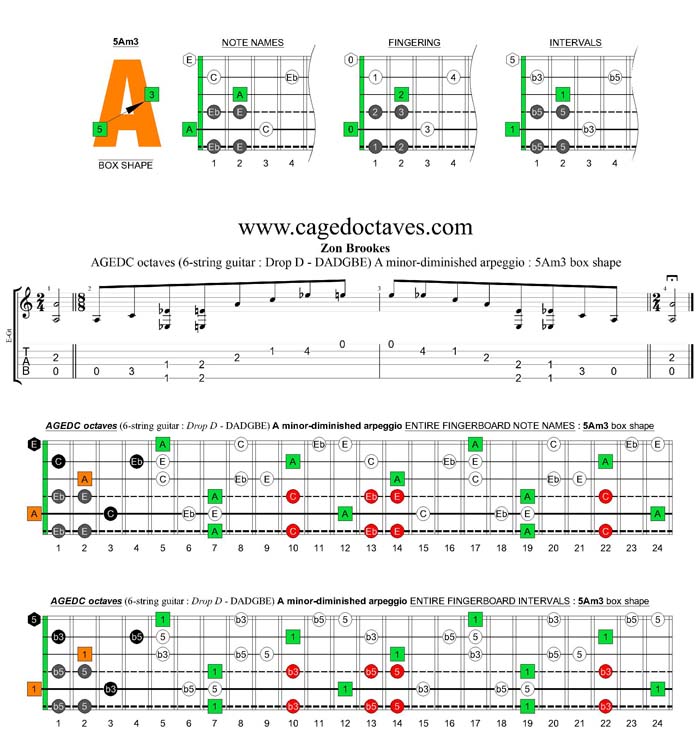

AGEDC octaves A minor-diminished arpeggio : 5Am3 box shape

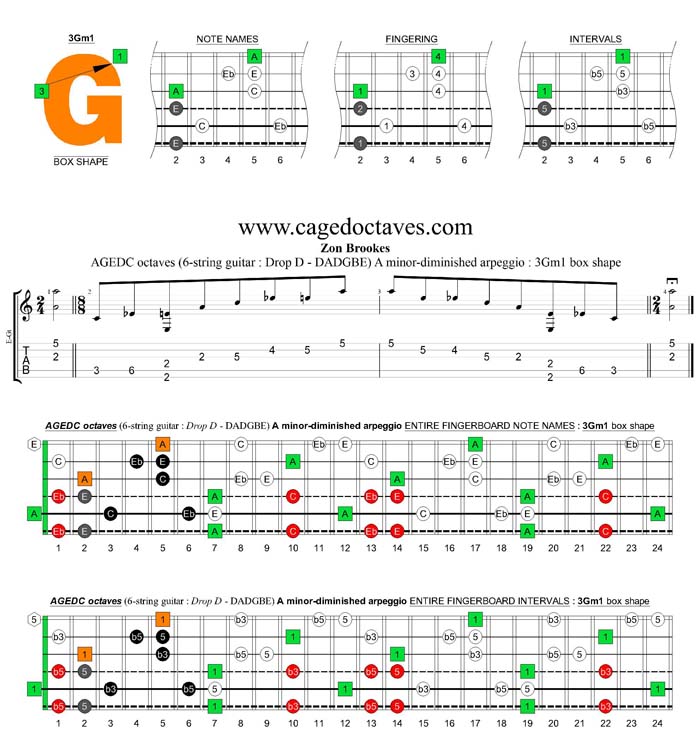

AGEDC octaves A minor-diminished arpeggio : 3Gm1 box shape

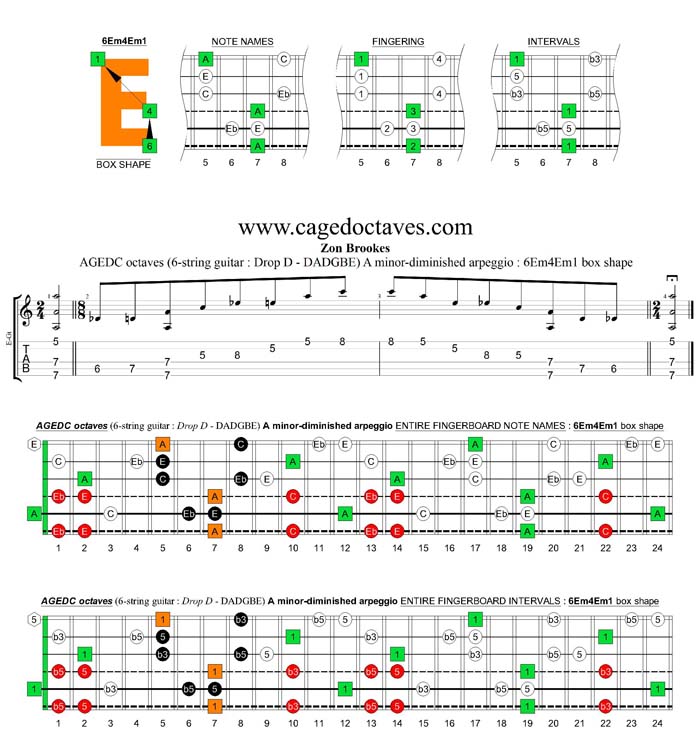

AGEDC octaves A minor-diminished arpeggio : 6Em4Em1 box shape

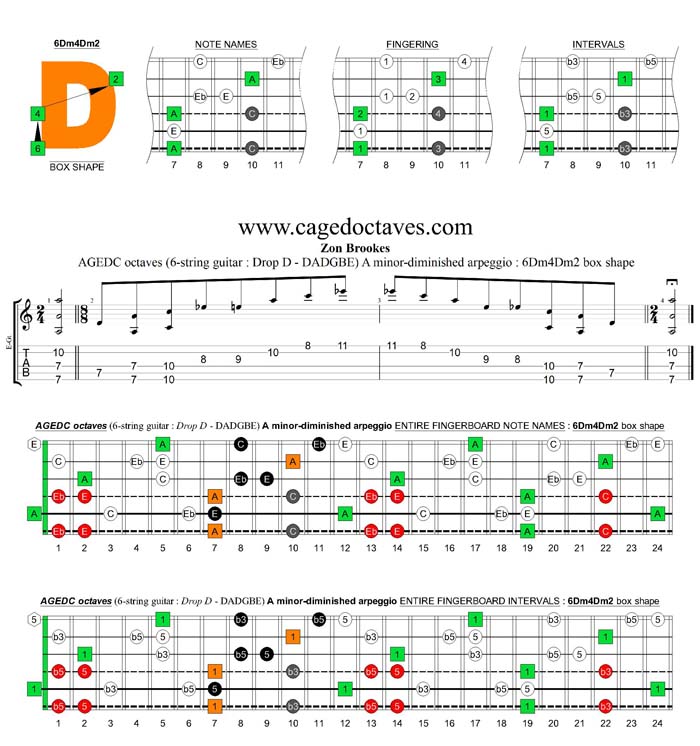

AGEDC octaves A minor-diminished arpeggio : 6Dm4Dm2 box shape

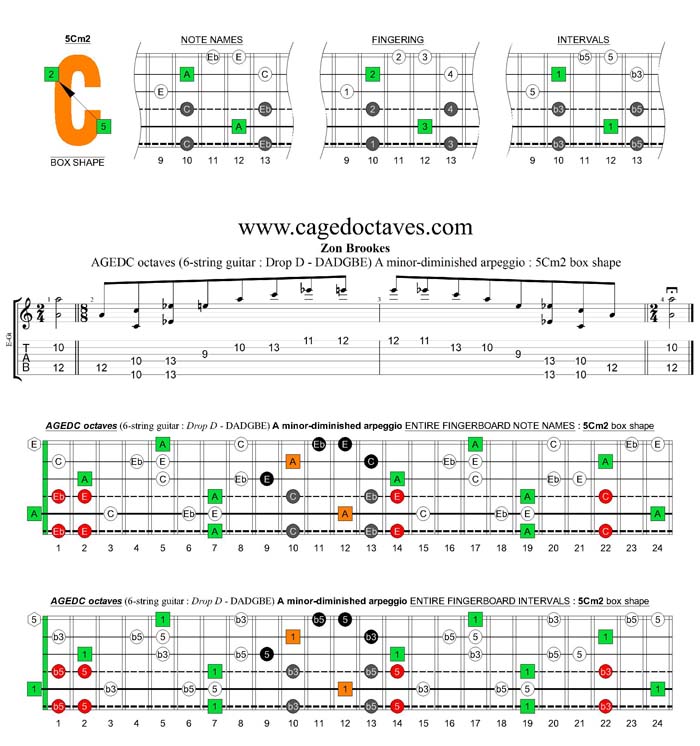

AGEDC octaves A minor-diminished arpeggio : 5Cm2 box shape

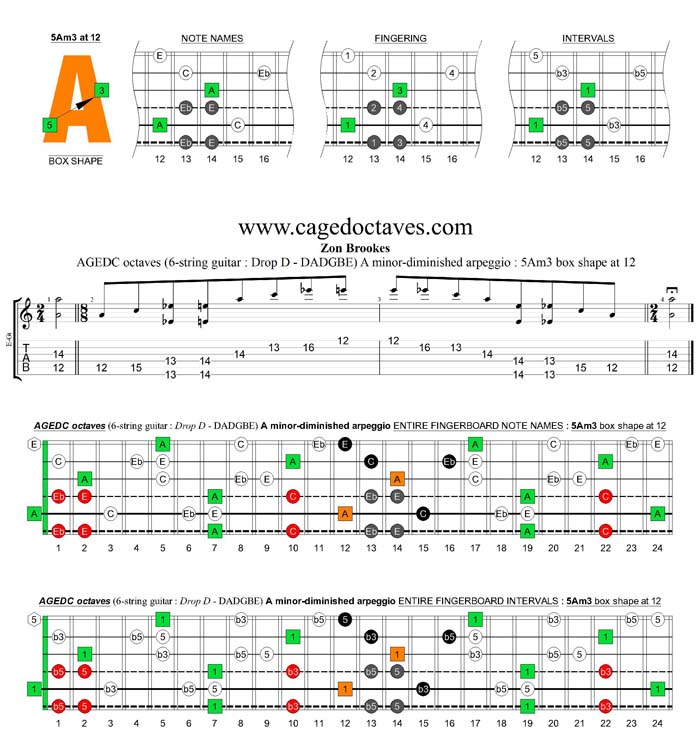

"AGEDC octaves A minor-diminished arpeggio : 5Am3 box shape at 12


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5Am3 - being repeated at the 12th fret).

The video shown to the right demonstrates the AGEDC octaves chain-linked sequence for the
A minor-diminished arpeggio box shapes.


The complete TAB for the previous exercise follows:-

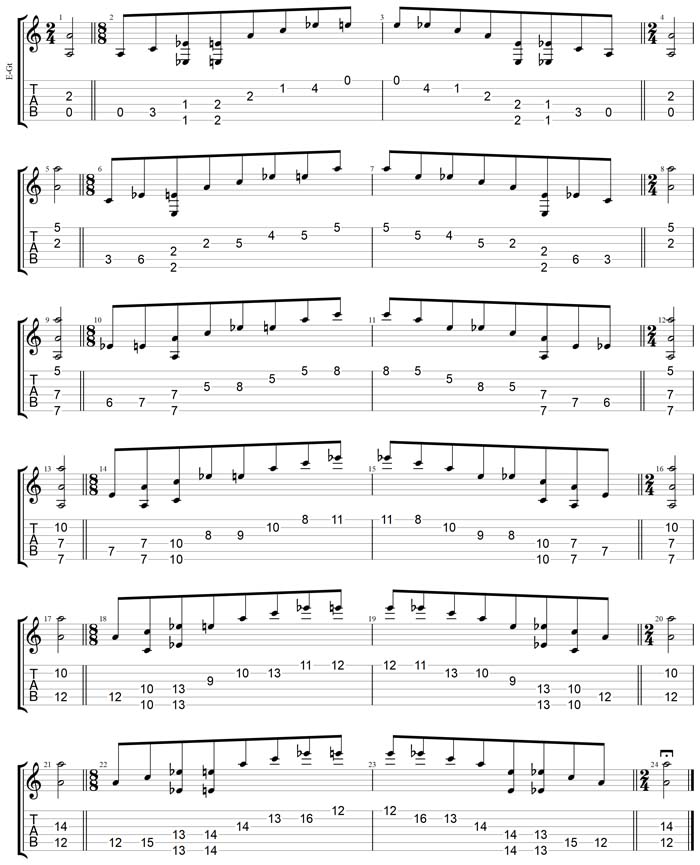

GuitarPro7 TAB: A minor-diminished arpeggio box shapes (6-string guitar: Drop D - DADGBE)


The box shapes for the previous exercise follow:-

A minor-diminished arpeggio box shapes (6-string guitar: Drop D - DADGBE)

AGEDC octaves : 6-string guitar (Drop D - DADGBE)
A minor-diminished arpeggio
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

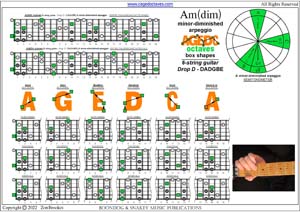

AGEDC octaves A minor-diminished arpeggio box shapes pdf

GuitarPro7 TAB: A minor-diminished arpeggio box shapes pdfGuitarPro7 TAB: A minor-diminished arpeggio box shapes pdf


AGEDC octaves : 6-string guitar (Drop D - DADGBE)
A minor-diminished arpeggio : Overall fretboard box shapes

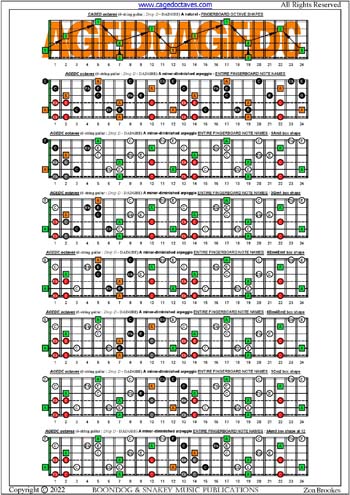

AGEDC octaves A minor-diminished arpeggio fretboard notes

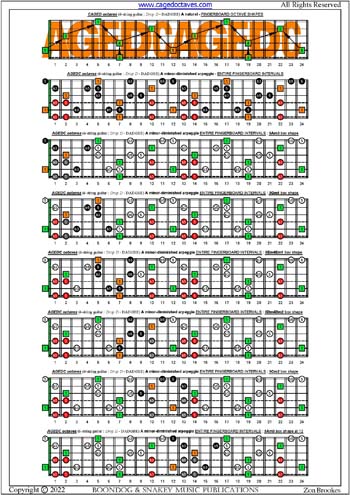

AGEDC octaves A minor-diminished arpeggio fretboard intervals
