ABEDC octaves : 8-string guitar (Drop E - EBEADGBE)
A pentatonic minor scale : General
In this BLOGoZON we take a look at the A pentatonic minor scale and join them all together
for 8-string guitar (Drop E - EBEADGBE) to form one long AGEDB octaves chain.
Below the AGEDB octaves for Drop E sequence is shown for A natural in the diagram that follows:-

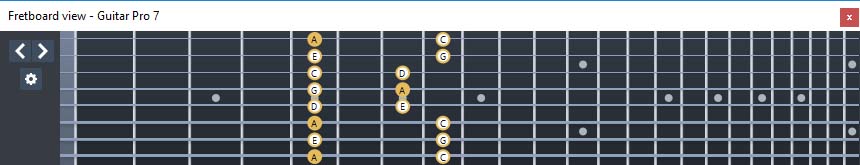

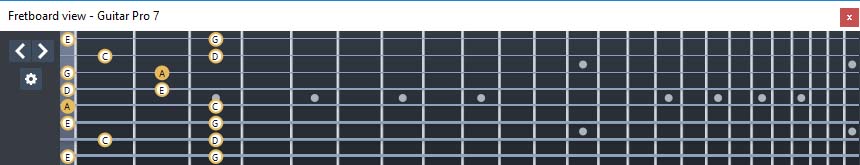

GuitarPro6 fingerboard : A natural octaves
The diagram that follows shows all five of the AGEDB octaves shapes for use with the
box shapes for 8-string guitar (Drop E - EBEADGBE).
The diagram that follows shows all five of the AGEDB octaves shapes for use with the
A pentatonic minor scale box shapes for 8-string guitar (Drop E - EBEADGBE).

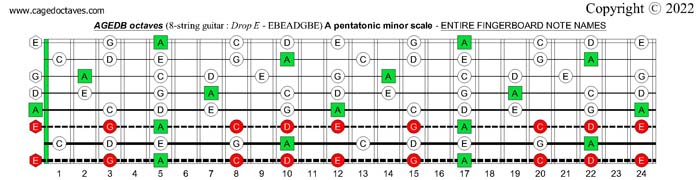

The diagrams that follow show all of the A pentatonic minor scale notes plotted over the
8-string guitar's (Drop E - EBEADGBE) fretboard in the AGEDB octaves and GuitarPro6 styles.

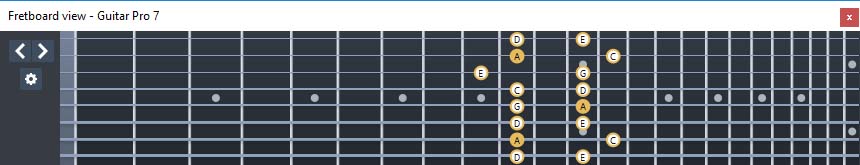

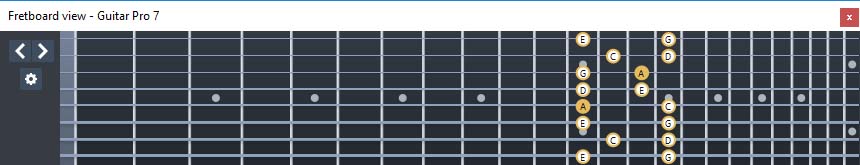

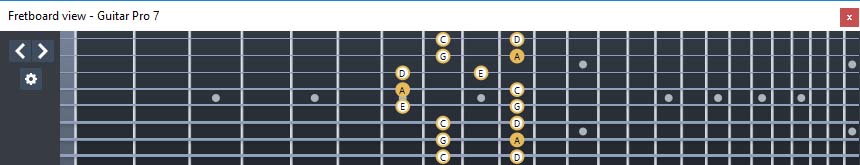

GuitarPro7 fingerboard : A pentatonic minor scale
As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
A pentatonic minor scale are detailed below in the AGEDB octaves manner.

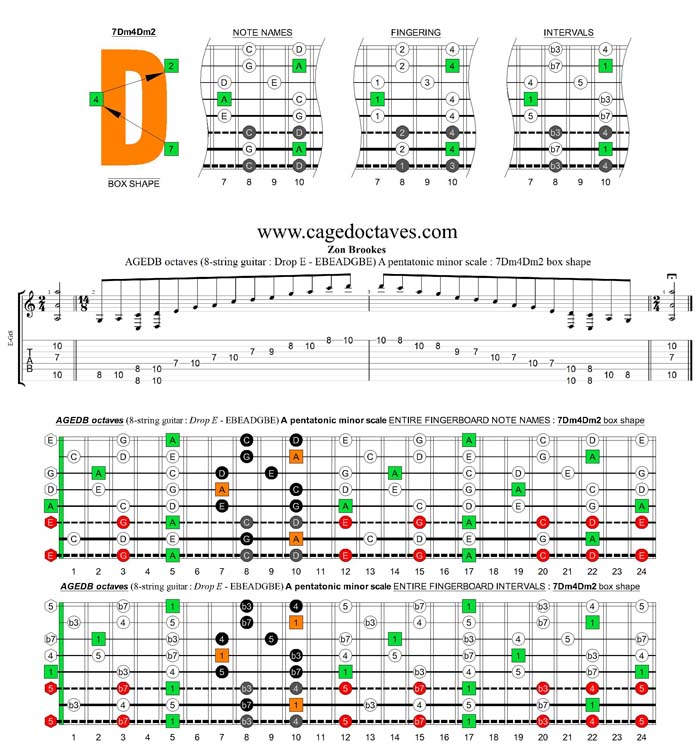

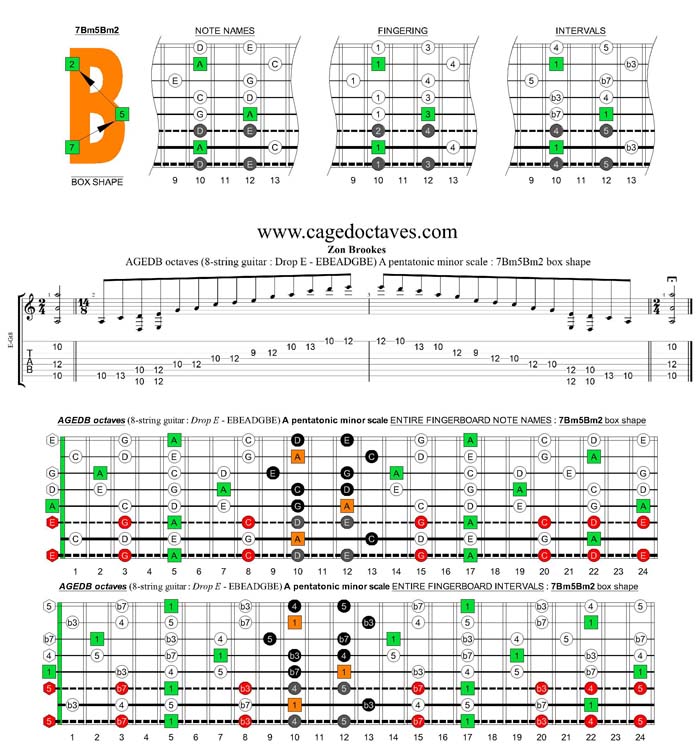

The tables and tabbed panels below detail all five box shapes for the
A pentatonic minor scale in the AGEDB octaves style.
ABEDC octaves : 8-string guitar (Drop E - EBEADGBE)
A pentatonic minor scale box shapes
|
|||||
|
|||||
 |
 |
 |
 |
 |
 |
ABEDC octaves : 8-string guitar (Drop E - EBEADGBE)
A pentatonic minor scale box shapes
- 5Am3
- 8Gm6Gm3Gm1
- 8Em6Em4Em1
- 7Dm4Dm2
- 7Bm5Bm2
- 5Am3 at 12
ABEDC octaves : 8-string guitar (Drop E - EBEADGBE)
A pentatonic minor scale box shapes

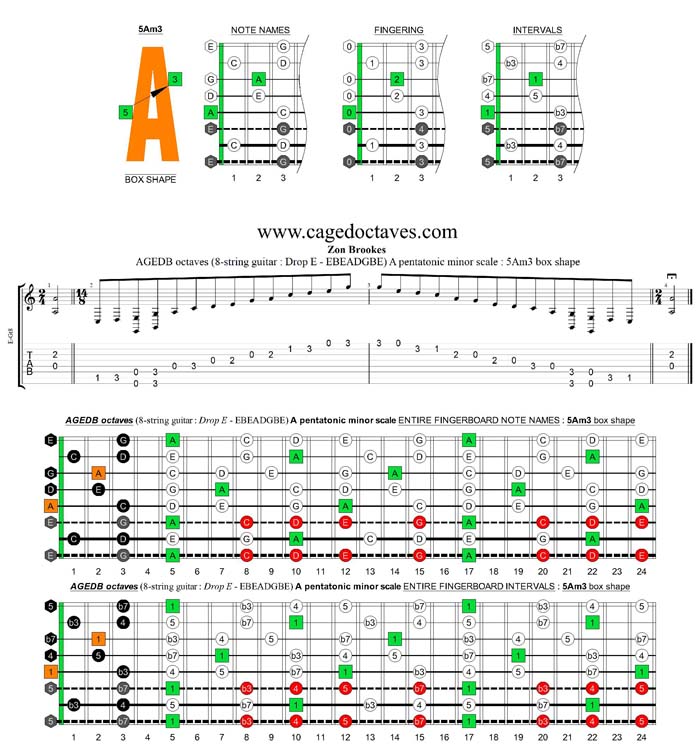

- 5Am3

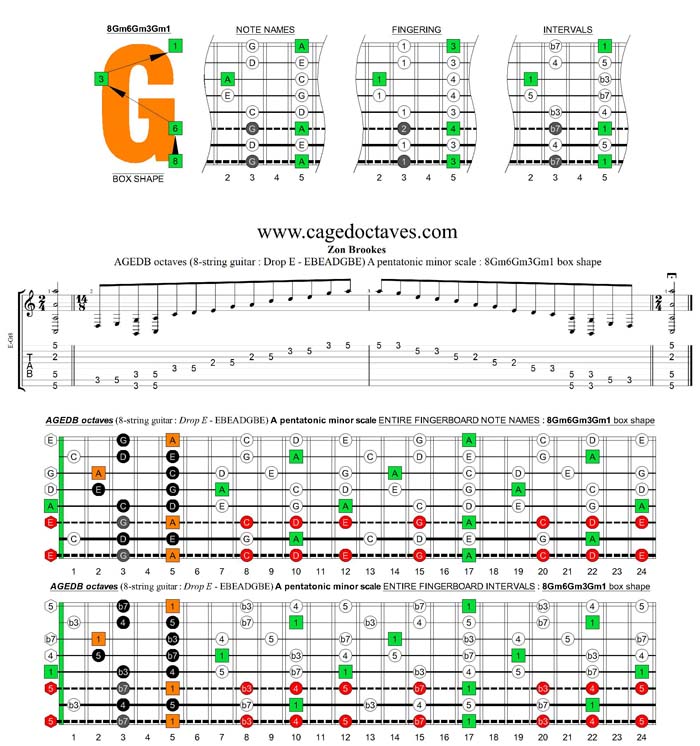

- 8Gm6Gm3Gm1

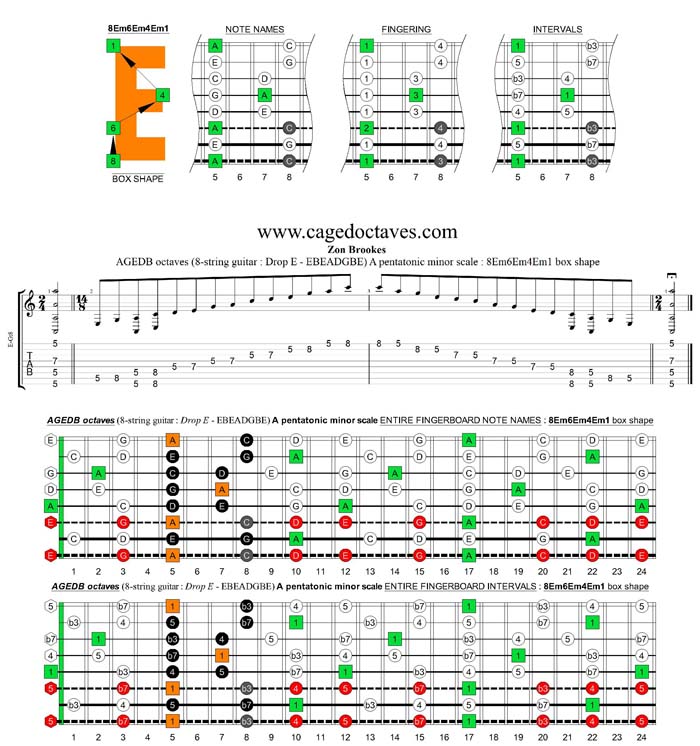

- 8Em6Em4Em1
- 7Dm4Dm2
- 7Bm5Bm2

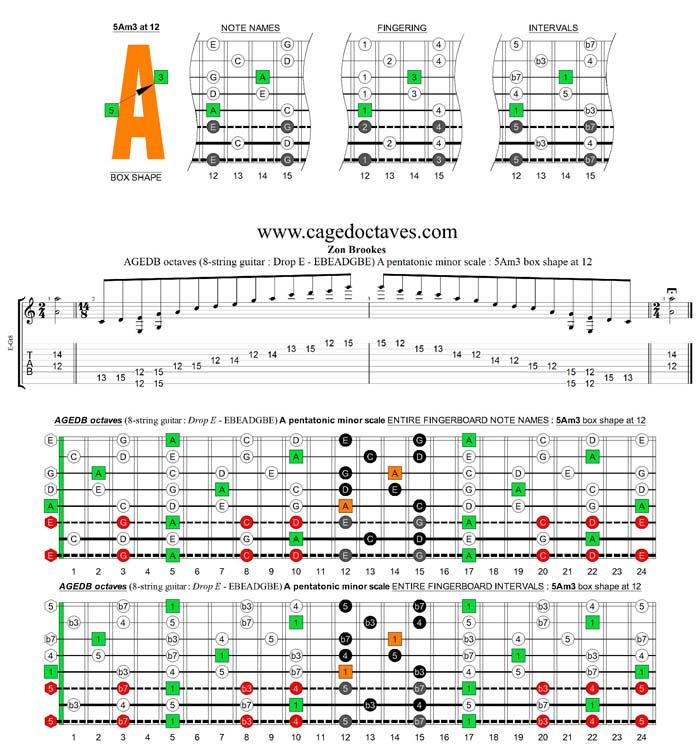

- 5Am3 at 12
Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5Am3 - being repeated at the 12th fret). |

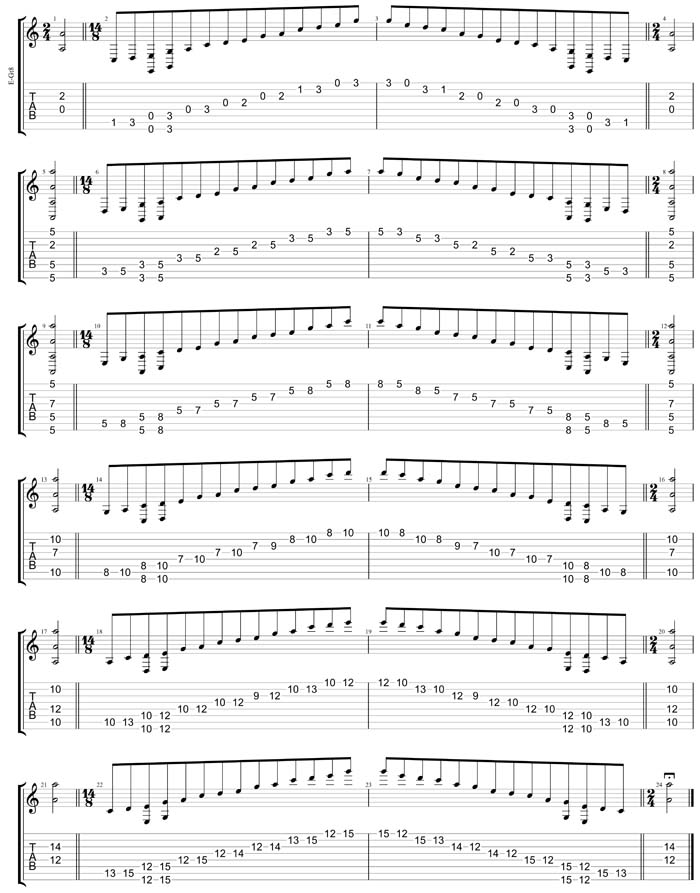

The complete TAB for the previous exercise follows:-
The box shapes for the previous exercise follow:-
ABEDC octaves : 8-string guitar (Drop E - EBEADGBE)
A pentatonic minor scale

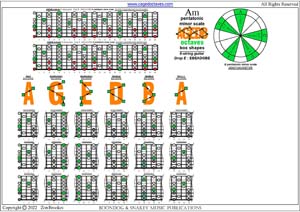

Box shapes pdf & GuitarPro6 TAB pdf
|
|
|
|
ABEDC octaves : 8-string guitar (Drop E - EBEADGBE)

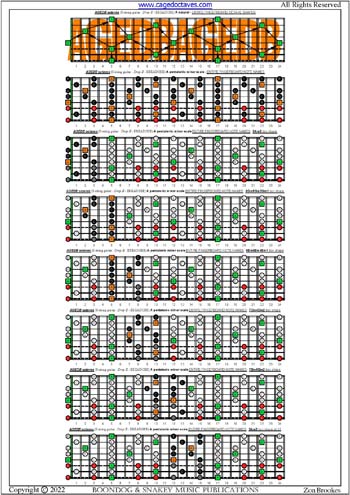

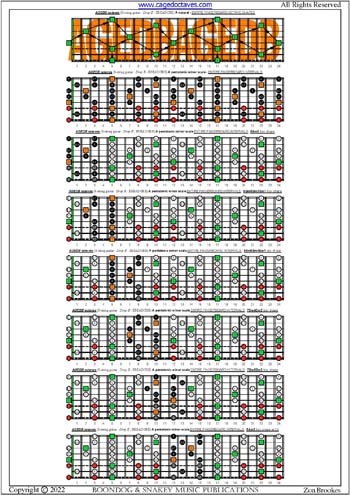

A pentatonic minor scale : Overall fretboard box shapes
|
|
|
