CAGED4BASS (EADG - standard tuning)
C octatonic major-minor scale : General

In this BLOGoZON we take a look at the C octatonic major-minor scale box shapes and join them all together to form one long CAGED4BASS chain.

CAGED4BASS logo

The CAGED4BASS sequence is shown for C natural in the diagram that follows:-

CAGED4BASS C natural octaves

guitarpro6_c_natural octaves

The diagrams that follow show all of the C octatonic major-minor scale notes plotted over the 4-string bass' fretboard in the CAGED4BASS and GuitarPro6 styles:-

CAGED4BASS C octatonuc major-minor fingerboard notes

NOTE No.1:- The GuitarPro6 fingerboards that follow show both E's and B's enharmonic equivalent spellings of D and A (the augmented second interval name rather than the minor third; the augmented sixth interval name rather than the minor seventh ) used elsewhere on this page.

GuitarPro6 F bebop dominant

NOTE No.2:- The C octatonic major-minor scale is also the fifth mode of the F bebop dominant scale hence the F natural is highlighted in the diagram above (rather than C natural the true root note) as GuitarPro6 does not display these modes correctly.

NOTE No.3:- The C octatonic major-minor scale is an amalgamation of the C pentatonic major and
C pentatonic minor scales; GuitarPro6 diagrams of both follow:-

GuitarPro6 fingerboard - C pentatonic major

GuitarPro6 C pentatonic major

GuitarPro6 fingerboard - C pentatonic minor

GuitarPro6 C pentatonic minor

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes rather than note names - as these are universal to all scales, arpeggios and chords rather than specific to one particular root note - with this in mind the intervals for the C octatonic major-minor scale are detailed below in the CAGED4BASS manner:-

CAGED4BASS C octatonuc major-minor fingerboard intervals

The tables and tabbed panels below detail all five box shapes for the C octatonic major-minor scale in the CAGED4BASS style.


CAGED4BASS (EADG - standard tuning)
C octatonic major-minor scale : YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

3C* box shape pdf
3A1 box shape pdf
4G1 box shape pdf
4E2 box shape pdf
2D* box shape pdf
3C* box shape at 12 pdf

CAGED4BASS (EADG - standard tuning)
C octatonic major-minor scale : Box shapes on YouTube

  • 3C*
  • 3A1
  • 4G1
  • 4E2
  • 2D*
  • 3C* at 12

GuitarPro6 3C* box shape

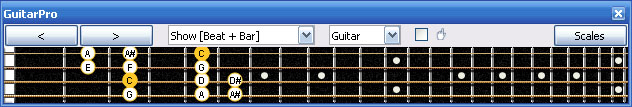

GuitarPro6 3A1 box shape

GuitarPro6 4G1 box shape

GuitarPro6 4E2 box shape

GuitarPro6 2D* box shape

GuitarPro6 3C* box shape at 12


CAGED4BASS (EADG - standard tuning)
C octatonic major-minor scale : Box shapes & TAB

  • 3C*
  • 3A1
  • 4G1
  • 4E2
  • 2D*
  • 3C* at 12

3C* - C octatonic major-minor scale box

3A1 - C octatonic major-minor scale box

4G1 - C octatonic major-minor scale box

4E2 - C octatonic major-minor scale box

2D* - C octatonic major-minor scale box

3C* at 12 - C octatonic major-minor scale box


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 3C* - being repeated at the 12th fret).

The video shown to the right demonstrates the CAGED4BASS chain-linked sequence for the C octatonic major-minor scale box shapes.


The complete TAB for the previous exercise follows:-

C octatonic major-minor scale TAB


The box shapes for the previous exercise follow:-

C octatonic major-minor box shapes

Flash iconGuitar Pro 6 icon

C octatonic major-minor scale box shapes pdf

C octatonic major-minor scale box shapes TAB pdfC octatonic major-minor scale box shapes TAB pdf


CAGED4BASS (EADG - standard tuning)
C octatonic major-minor scale : Overall fretboard box shapes

CAGED4BASS C octatonic major-minor scale fretboard notes

CAGED4BASS C octatonic major-minor scale fretboard intervals
