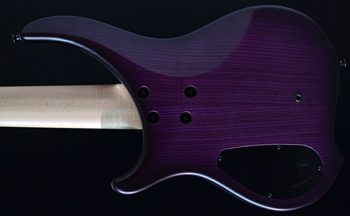

Dingwall ABZ5 Purpleburst

Dingwall ABZ5 Purpleburst

Dingwall ABZ5 Purpleburst

Dingwall ABZ5 Purpleburst

Dingwall ABZ5 Purpleburst

Dingwall ABZ5 Purpleburst

Dingwall ABZ5 Purpleburst


BAGED octaves : 7-string guitar (BEADGBE: Low B tuning)
C pentatonic major scale pseudo 3nps : General

BAGED octaves logo

In BLOGoZON No.360 the box shapes for the C pentatonic major scale were presented using the
BAGED octaves methodology - this is the standard BAGED octaves guitar system.

In this BLOGoZON we look at the C pentatonic major scale, again, but with pseudo 3nps shapes and join them all together to form one long BAGED octaves chain.

The diagram that follows shows all five of the BAGED octaves shapes for use with the
pseudo three notes per string patterns for a 7-string guitar tuned to BEADGBE :-

BAGED octaves: pseudo 3nps octaves shapes

The conjoined BAGED octaves sequence is shown for C natural in the diagram that follows:-

BAGED octaves: C natural fretboard

GuitarPro6 fingerboard : C natural octaves

GuitarPro6 C natural octaves

The diagrams that follow show all of the C pentatonic major scale notes plotted over the 7-string guitar's fretboard in the BAGED octaves and GuitarPro6 styles:-

BAGED octaves fretboard C major pentatonic scale notes

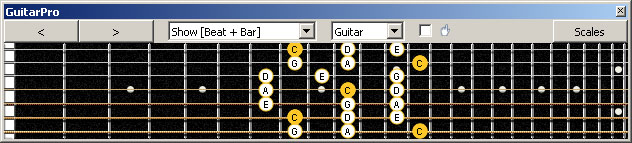

GuitarPro6 fingerboard : C pentatonic major scale

GuitarPro6 C pentatonic major scale

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes rather than note names - as these are universal to all scales, arpeggios and chords rather than specific to one particular root note - with this in mind the intervals for the C pentatonic major scale are detailed below in the
BAGED octaves manner:-

BAGED octaves fretboard C major pentatonic scale intervals

The tables and tabbed panels below detail all five box shapes for the
C pentatonic major scale pseudo 3nps box shapes in the BAGED octaves style.


BAGED octaves : 7-string guitar (BEADGBE: Low B tuning)
C pentatonic major scale : YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

BAGED octaves C pentatonic major scale - 7B5B2:5A3 pseudo 3nps box shape pdf
BAGED octaves C pentatonic major scale - 5A3:6G3G1 pseudo 3nps box shape pdf
BAGED octaves C pentatonic major scale - 6G3G1:6E4E1 pseudo 3nps box shape pdf
BAGED octaves C pentatonic major scale - 6E4E1:7D4D2 pseudo 3nps box shape pdf
BAGED octaves C pentatonic major scale - 7D4D2:7B5B2 pseudo 3nps box shape pdf
BAGED octaves C pentatonic major scale - 5A3:6G3G1 pseudo 3nps box shape at 12 pdf

BAGED octaves : 7-string guitar (BEADGBE: Low B tuning)
C pentatonic major scale : Box shapes on YouTube

  • 7B5B2:5A3
  • 5A3:6G3G1
  • 6G3G1:6E4E1
  • 6E4E1:7D4D2
  • 7D4D2:7B5B2
  • 7B5B2:5A3 at 12

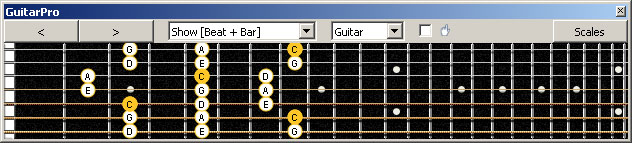

GuitarPro6 7B5B2:5A3 box shape

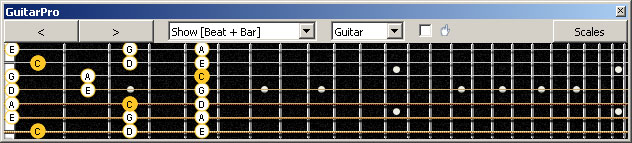

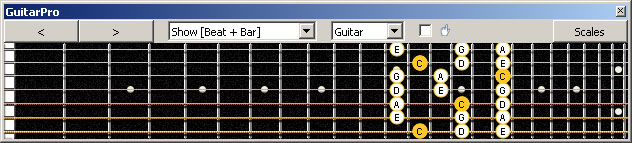

GuitarPro6 5A3:6G3G1 box shape

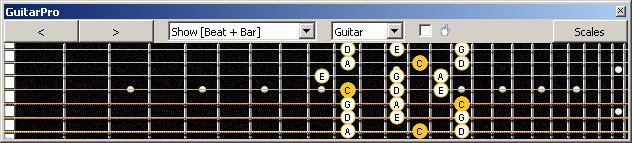

GuitarPro6 6G3G1:6E4E1 box shape

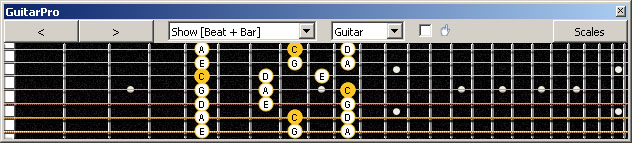

GuitarPro6 6E4E1:4D2 box shape

GuitarPro6 7D4D2:7B5B2 box shape

GuitarPro6 7B5B2:5A3 box shape at 12


BAGED octaves : 7-string guitar (BEADGBE: Low B tuning)
C pentatonic major scale : Box shapes & TAB

  • 7B5B2:5A3
  • 5A3:6G3G1
  • 6G3G1:6E4E1
  • 6E4E1:7D4D2
  • 7D4D2:7B5B2
  • 7B5B2:5A3 at 12

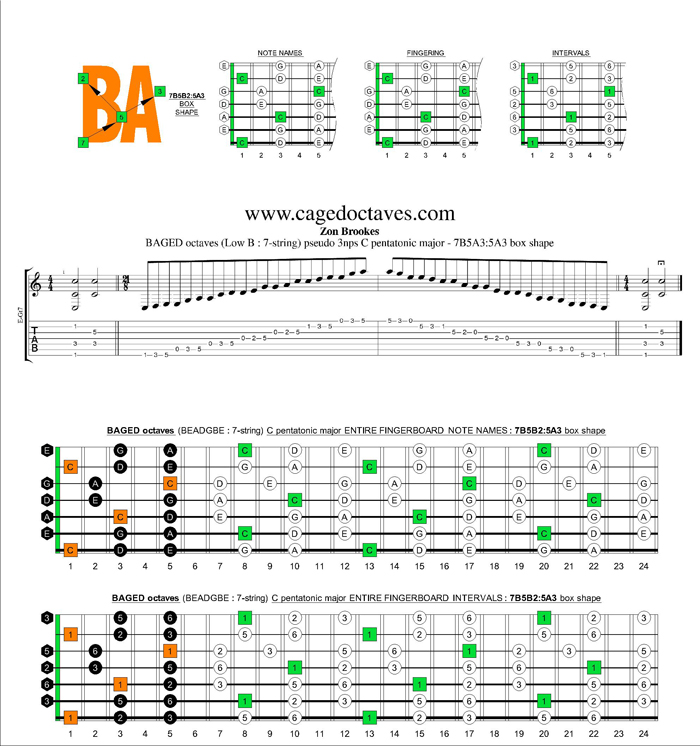

BAGED octaves C pentatonic major scale - 7B5B2:5A3 pseudo 3nps box shape

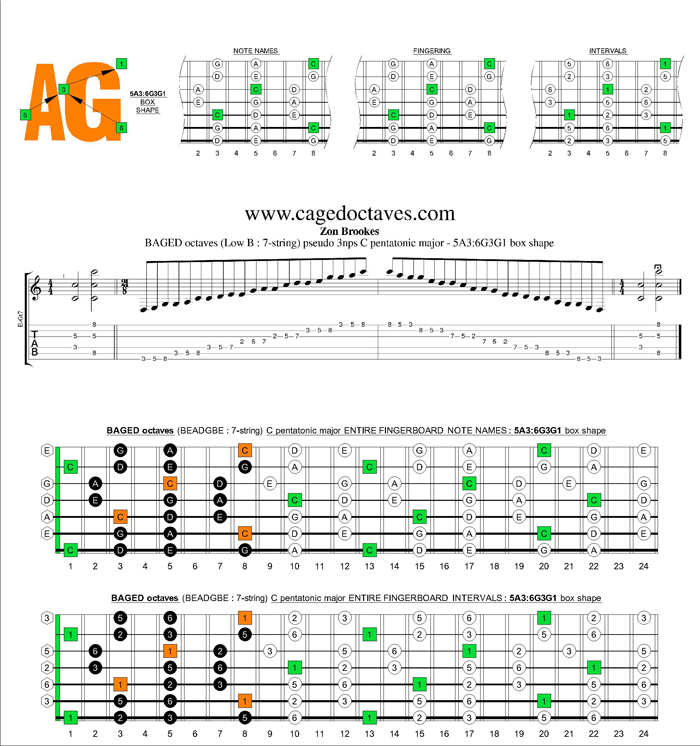

BAGED octaves C pentatonic major scale - 5A3:6G3G1 pseudo 3nps box shape

BAGED octaves C pentatonic major scale - 6G3G1:6E4E1 pseudo 3nps box shape

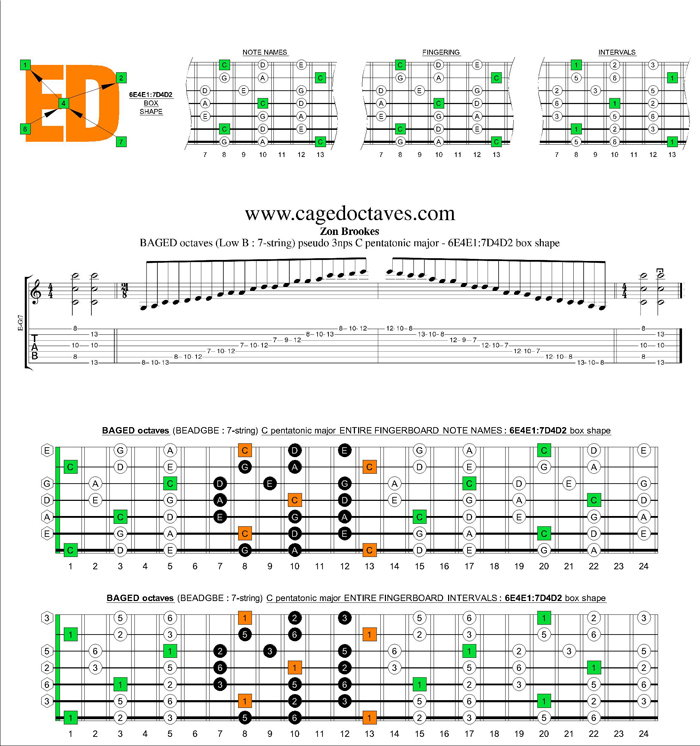

BAGED octaves C pentatonic major scale - 6E4E1:7D4D2 pseudo 3nps box shape

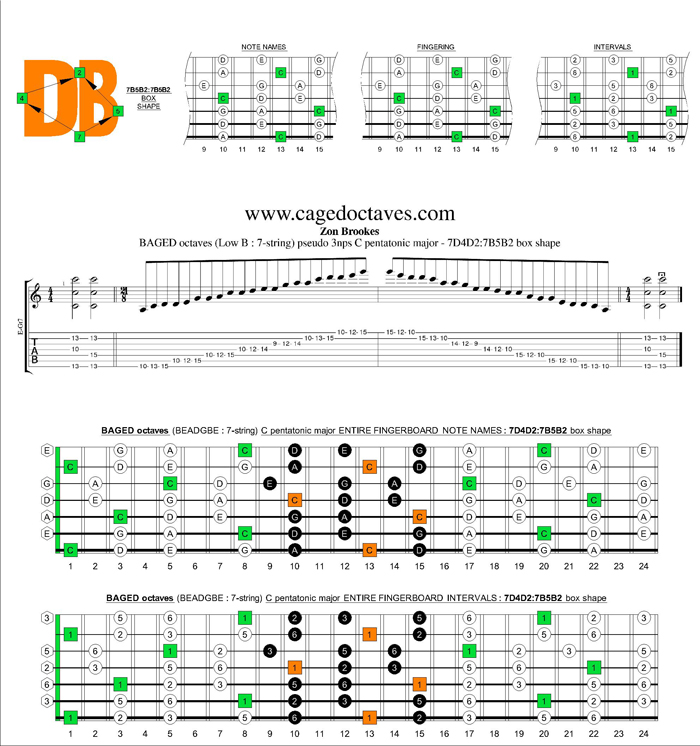

BAGED octaves C pentatonic major scale - 7D4D2:7B5B2 pseudo 3nps box shape

BAGED octaves C pentatonic major scale - 7B5B2:5A3 at 12 pseudo 3nps box shape


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 7B5B2:5A3 - being repeated at the 12th fret).

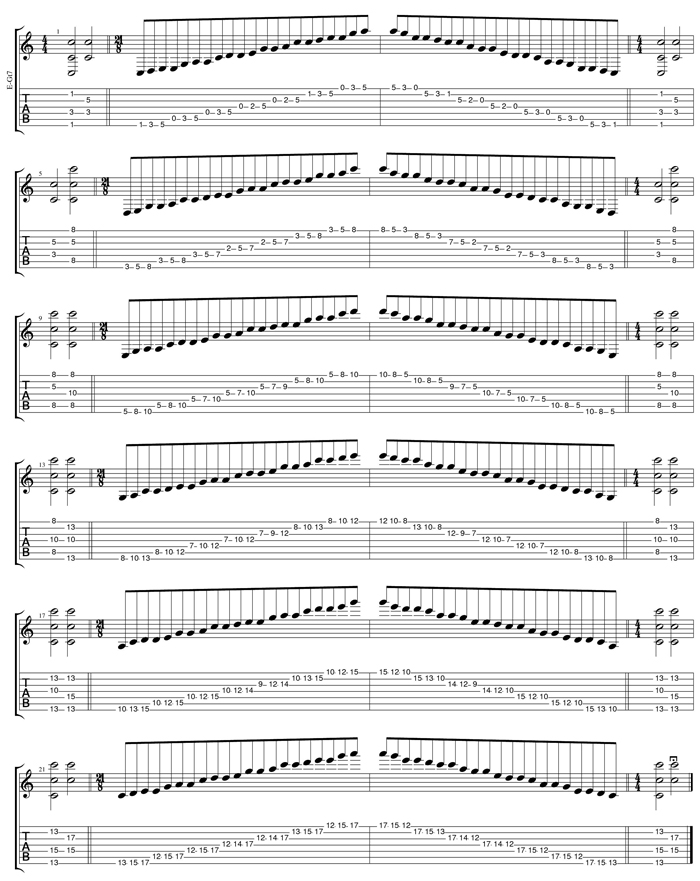

The complete TAB for the previously described exercise follows:-

GuitarPro6 C pentatonic major scale pseudo 3nps box shapes TAB


The box shapes for the previous exercise follow:-

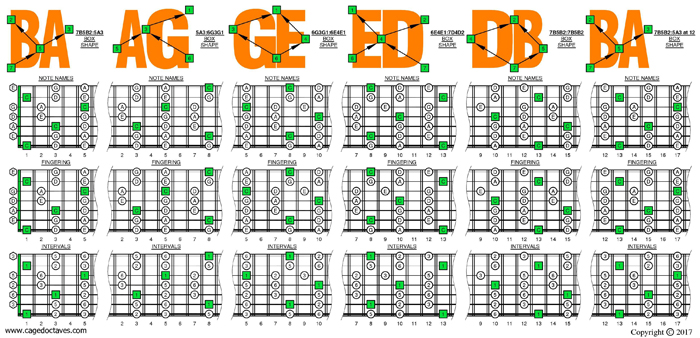

BAGED octaves C pentatonic major scale pseudo 3nps box shapes

BAGED octaves : 7-string guitar (BEADGBE: Low B tuning)
C pentatonic major scale pseudo 3nps
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

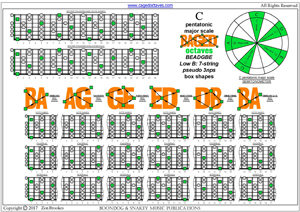

BAGED octaves C pentatonic major scale pseudo 3nps box shapes pdf

BAGED octaves C pentatonic major scale pseudo 3nps box shapes GuitarPro6 TAB pdfBAGED octaves C pentatonic major scale pseudo 3nps box shapes GuitarPro6 TAB pdf


BAGED octaves : 7-string guitar (BEADGBE: Low B tuning)
C pentatonic major scale pseudo 3nps box shapes:
Overall fretboard box shapes

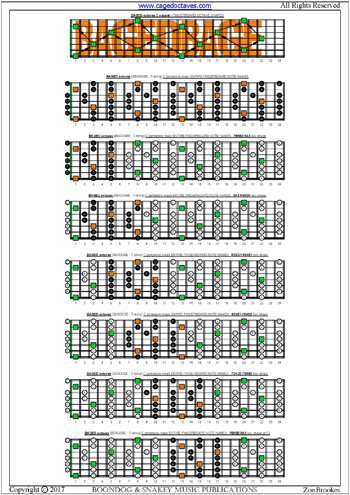

BAGED octaves C pentatonic major scale pseudo 3nps box shapes : entire fretboard notes

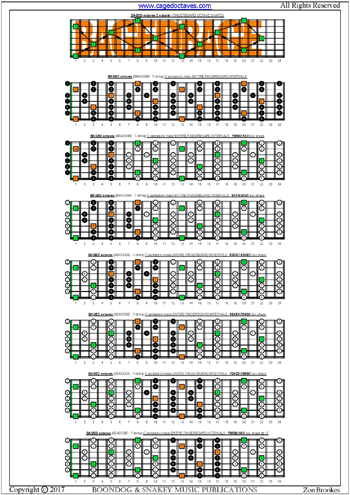

BAGED octaves C pentatonic major scale pseudo 3nps box shapes : entire fretboard intervals
