AGEDC4BASS : 4-string bass in Low E (EADG tuning)
A minor scale (aeolian mode) 3nps : General

In this BLOGoZON we take a look at the A minor scale (aeolian mode) 3nps
and join them all together to form one long AGEDC4BASS chain.

AGEDC4BASS A natural octave shapes (3nps)

Hence the AGEDC4BASS sequence is shown for A natural in the diagram that follows.

AGEDC4BASS A natural octaves fingerboard

GuitarPro6 fingerboard : A natural octaves

GuitarPro6 A natural octaves

The diagram that follows shows all seven of the AGEDC4BASS shapes for use with the
box shapes for a 4-string bass tuned to EADG.

AGEDC4BASS : A natural octaves (3nps)

The diagrams that follows show all of the A minor scale (aeolian mode) notes plotted over the
4-string bass guitar's fretboard in the AGEDC4BASS style.

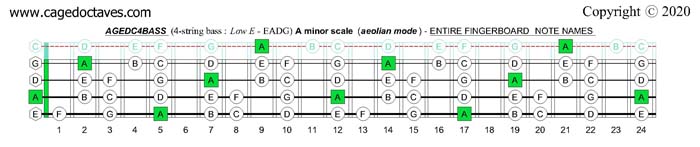

A minor scale (aeolian mode) : AGEDC4BASS fingerboard notes

GuitarPro6 fingerboard : A minor scale (aeolian mode) - note names

AGEDC4BASS A natural minor scale

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
A minor scale (aeolian mode) are detailed below in the AGEDC4BASS manner.

A minor scale (aeolian mode) : AGEDC4BASS fingerboard intervals

GuitarPro6 fingerboard : A minor scale (aeolian mode) - intervals

GuitarPro5 intervals

The tables and tabbed panels below detail all seven box shapes for the A minor scale (aeolian mode)
in the AGEDC4BASS style for Low E tuning.


AGEDC4BASS : 4-string bass in Low E (EADG tuning)
A minor scale (aeolian mode) box shapes : pdf

YouTube icon

Flash iconGuitar Pro 6 icon

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Am1Gm box shape pdf

AGEDC4BASS A minor scale (aeolian mode) 3nps : 4Gm1 box shape pdf

AGEDC4BASS A minor scale (aeolian mode) 3nps : 4Em2 box shape pdf

AGEDC4BASS A minor scale (aeolian mode) 3nps : 4Em2 box shape pdf

AGEDC4BASS A minor scale (aeolian mode) 3nps : 2Dm* box shape pdf

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Cm* box shape pdf

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Am1 box shape pdf

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Am1Gm box shape at 12 pdf


AGEDC4BASS : 4-string bass in Low E (EADG tuning)
A minor scale (aeolian mode) box shapes : YouTube videos

  • 3Am1Gm
  • 4Gm1
  • 4Em2
  • 4Em2Dm*
  • 2Dm*
  • 3Cm*
  • 3Am1
  • 3Am1Gm at 12

GuitarPro6 A minor scale 3nps : 3Am1Gm box shape

GuitarPro6 A minor scale 3nps : 4Gm1 box shape

GuitarPro6 A minor scale 3nps : 4Em2 box shape

GuitarPro6 A minor scale 3nps : 4Em2Dm* box shape

GuitarPro6 A minor scale 3nps : 2Dm* box shape

GuitarPro6 A minor scale 3nps : 3Cm* box shape

GuitarPro6 A minor scale 3nps : 3Am1 box shape

GuitarPro6 A minor scale 3nps : 3Am1Gm box shape at 12

  • 3Am1Gm
  • 4Gm1
  • 4Em2
  • 4Em2Dm*
  • 2Dm*
  • 3Cm*
  • 3Am1
  • 3Am1Gm at 12

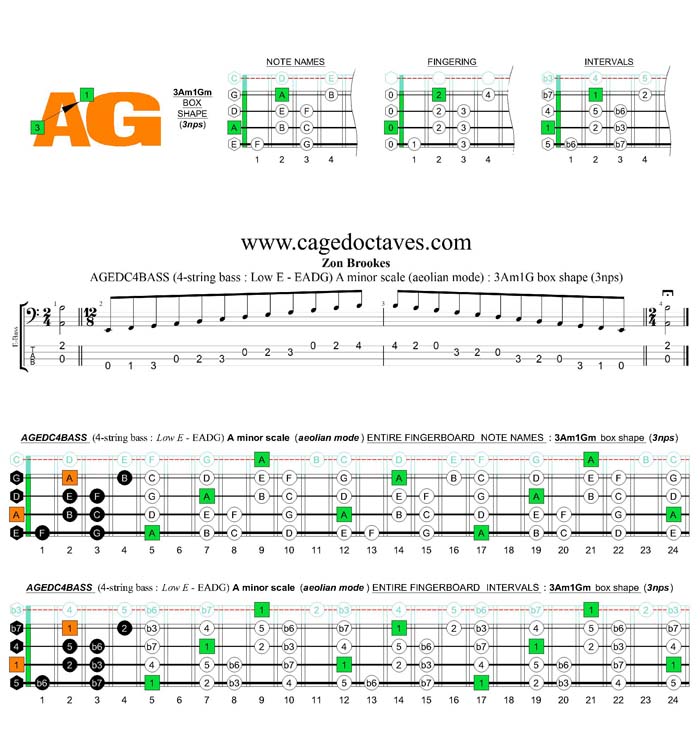

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Am1Gm box shape

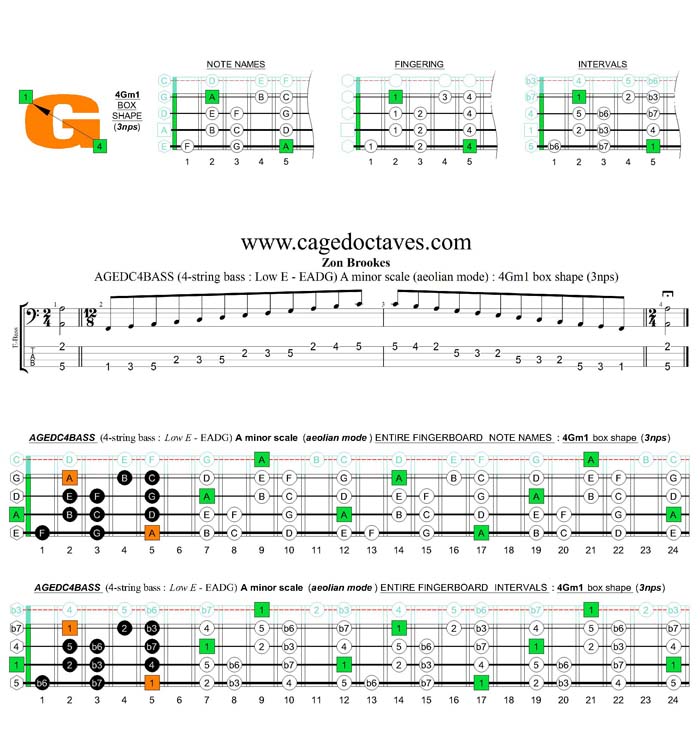

AGEDC4BASS A minor scale (aeolian mode) 3nps : 4Gm1 box shape

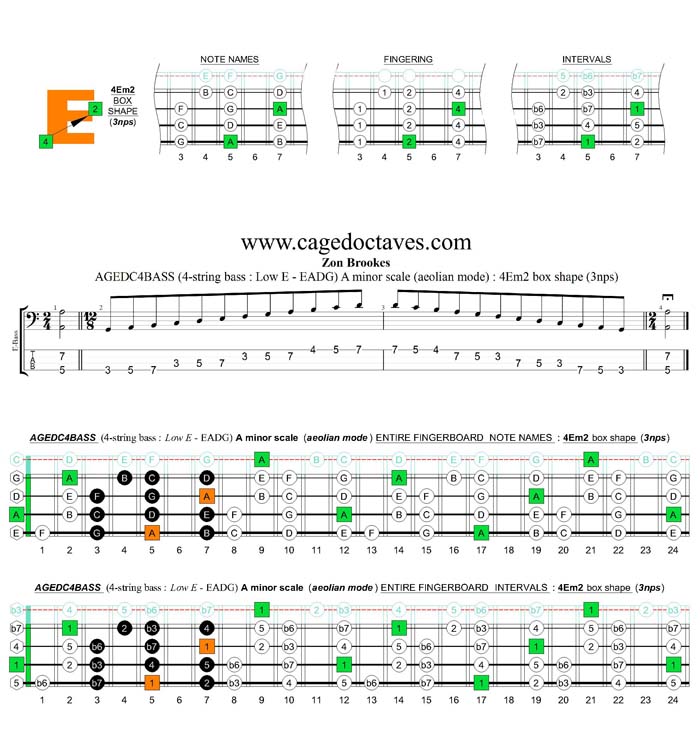

AGEDC4BASS A minor scale (aeolian mode) 3nps : 4Em2 box shape

AGEDC4BASS A minor scale (aeolian mode) 3nps : 4Em2Dm* box shape

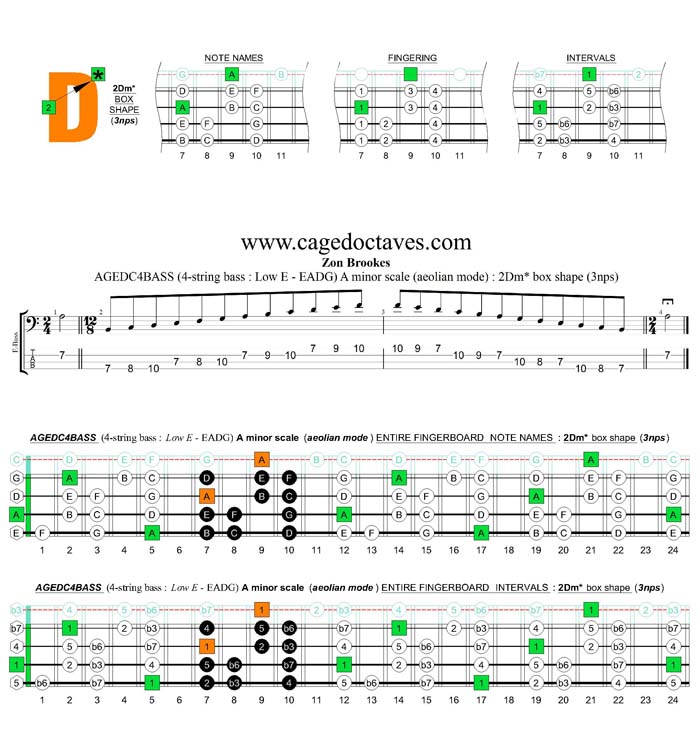

AGEDC4BASS A minor scale (aeolian mode) 3nps : 2Dm* box shape

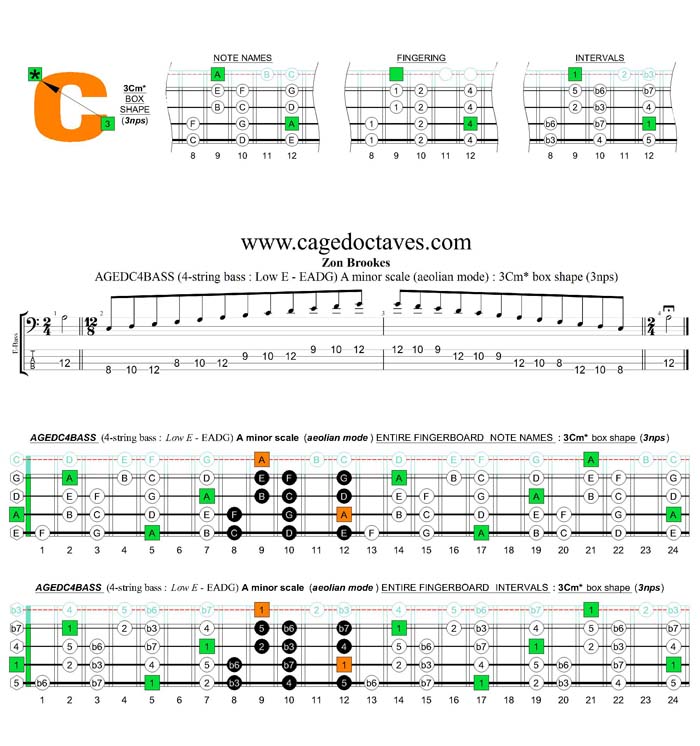

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Cm* box shape

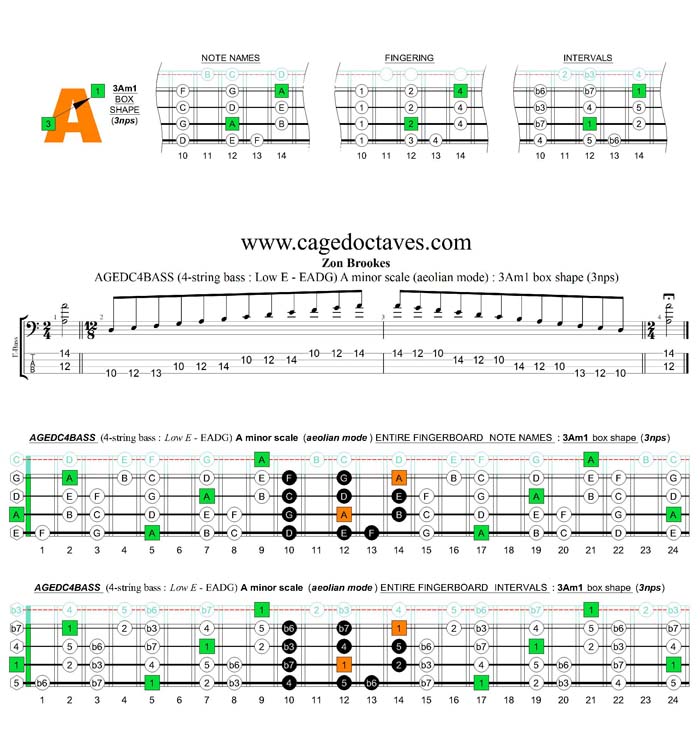

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Am1 box shape

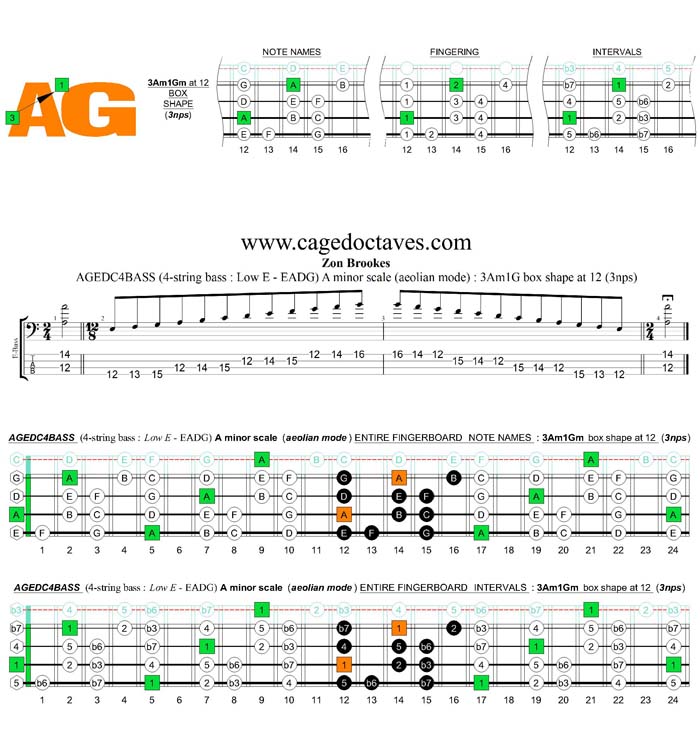

AGEDC4BASS A minor scale (aeolian mode) 3nps : 3Am1Gm box shape at 12



Once the individual box shapes have been assimilated all seven shapes should be linked together and played in one continuous exercise (with the first shape - 3Am1Gm - being repeated at the 12th fret).

The video shown to the right demonstrates the AGEDC4BASS chain-linked sequence for the A minor scale 3nps box shapes.


The complete TAB for the previous exercise follows:-

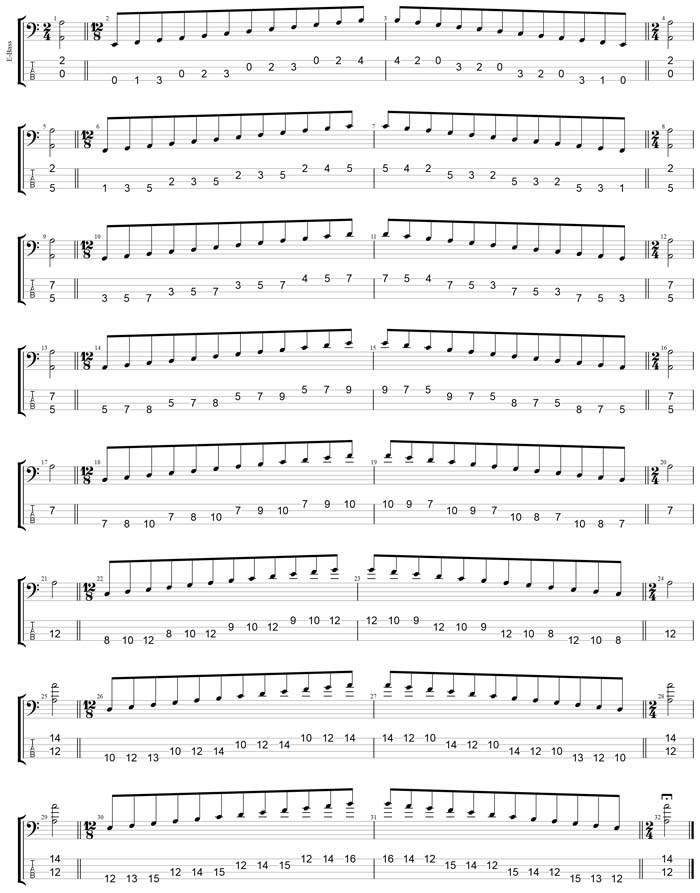

GuitarPro7 TAB: AGEDC4BASS A minor scale (aeolian mode) 3nps box shapes


The box shapes for the previous exercise follows:-

AGEDC4BASS A minor scale 3nps box shapes

AGEDC4BASS : 4-string bass in Low E (EADG tuning)
A minor scale (aeolian mode) 3nps
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

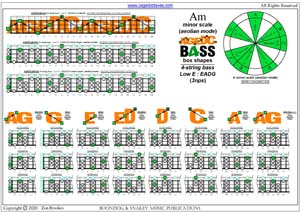

AGEDC4BASS A minor scale (aeolian mode) 3nps box shapes pdf

GuitarPro7 TAB pdf: AGEDC4BASS A minor scale (aeolian mode) 3nps box shapesGuitarPro7 TAB pdf: AGEDC4BASS A minor scale (aeolian mode) 3nps box shapes

AGEDC4BASS : 4-string bass in standard EADG tuning
A minor scale (aeolian mode) 3nps
Overall fretboard box shapes

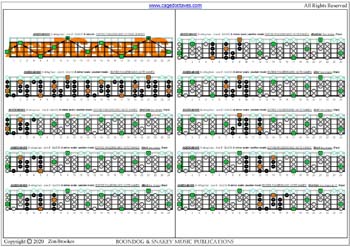

AGEDC4BASS A minor scale (aeolian mode) 3nps box shapes : fretboard notes

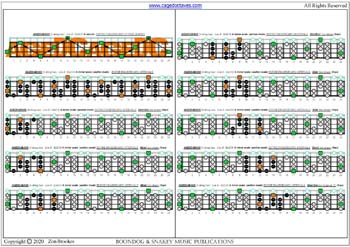

AGEDC4BASS A minor scale (aeolian mode) 3nps box shapes : fretboard intervals
