CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major arpeggio (3nps) : General
In BLOGoZON No.662 the box shapes for the C major arpeggio were presented for
6-string guitar (Drop D - DADGBE) using the standard CAGED octaves guitar system for Drop D.
In this BLOGoZON we look again at the C major arpeggio, but with 3nps shapes and
join them all together to form one long Drop D : CAGED octaves chain.
The diagram that follows shows all seven of the octave shapes used with the
three notes per string patterns for 6-string guitar (Drop D - DADGBE).

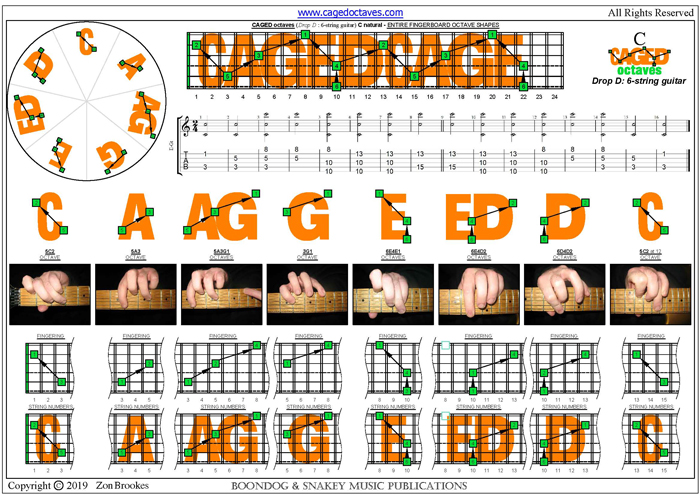

The conjoined Drop D : CAGED octaves sequence is shown for C natural in the diagram that follows.
GuitarPro6 fingerboard : C natural octaves
The diagram that follows shows all seven of the Drop D : CAGED octaves shapes for use with the
3nps box shapes for a 6-string guitar (Drop D - DADGBE).
The diagrams that follow show all of the C major arpeggio notes plotted over the
6-string guitar's (Drop D - DADGBE) fretboard in the CAGED octaves and GuitarPro6 styles.
GuitarPro6 fingerboard : C major arpeggio
As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major arpeggio are detailed below in the CAGED octaves manner.
The tables and tabbed panels below detail all five box shapes for the
C major arpeggio in the
CAGED octaves style.
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major arpeggio (3nps) : YouTube videos & pdf files
|
|||||||
|
|||||||
|
|
|
|
|
|
|
|
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major arpeggio (3nps) : Box shapes on YouTube

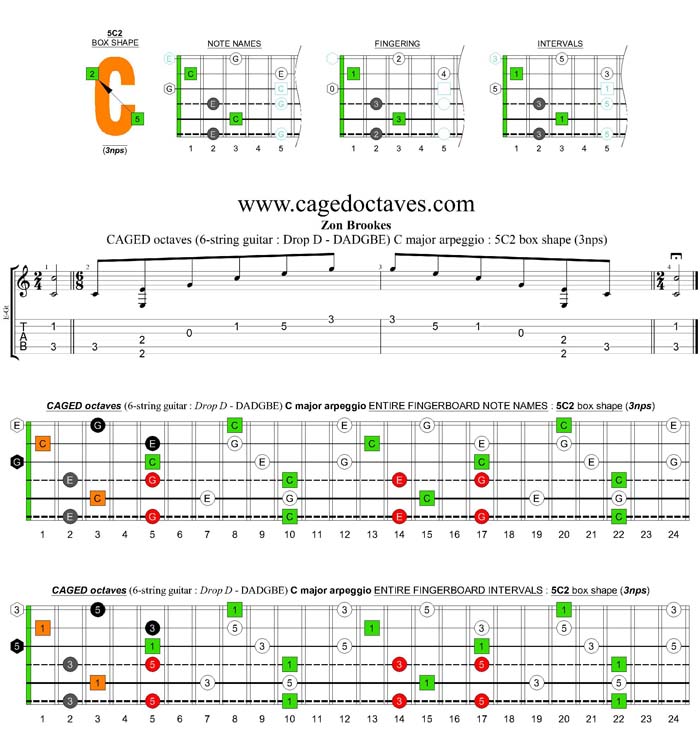

- 5C2

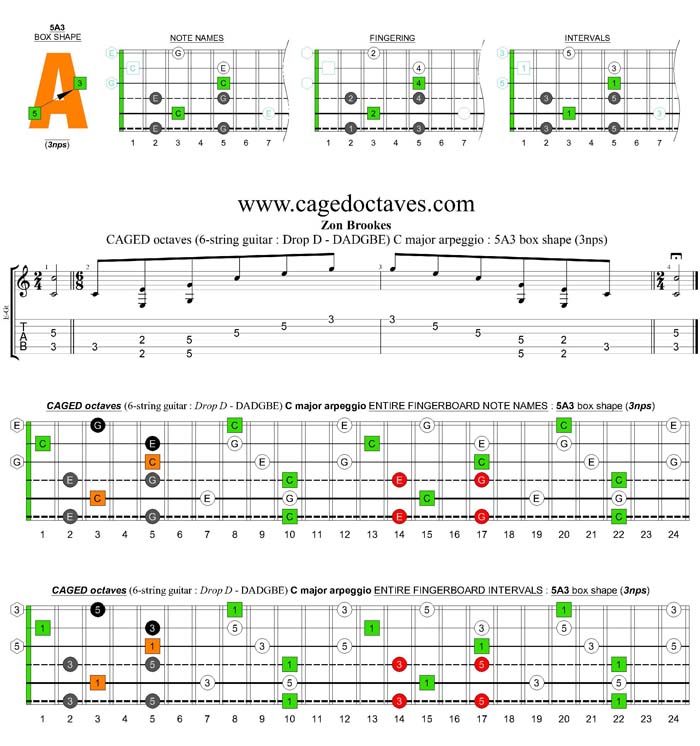

- 5A3

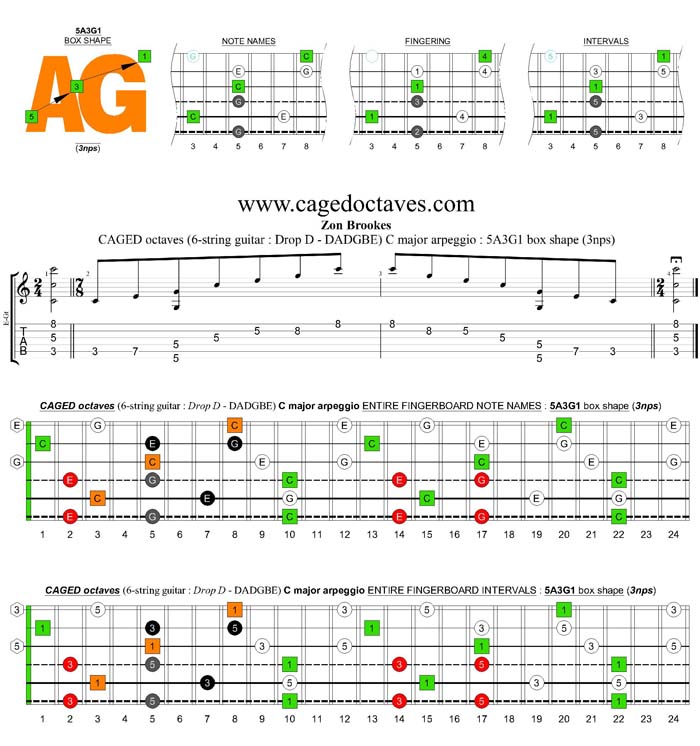

- 5A3G1

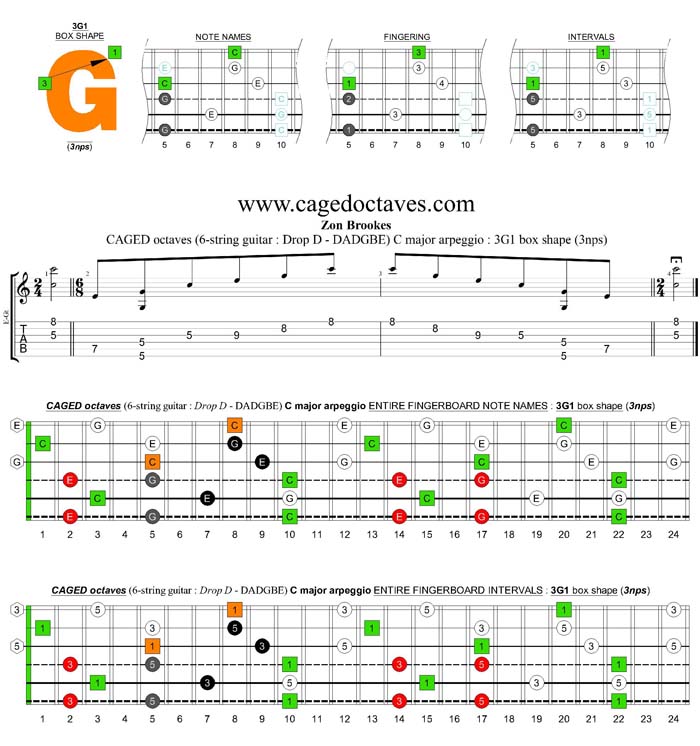

- 3G1

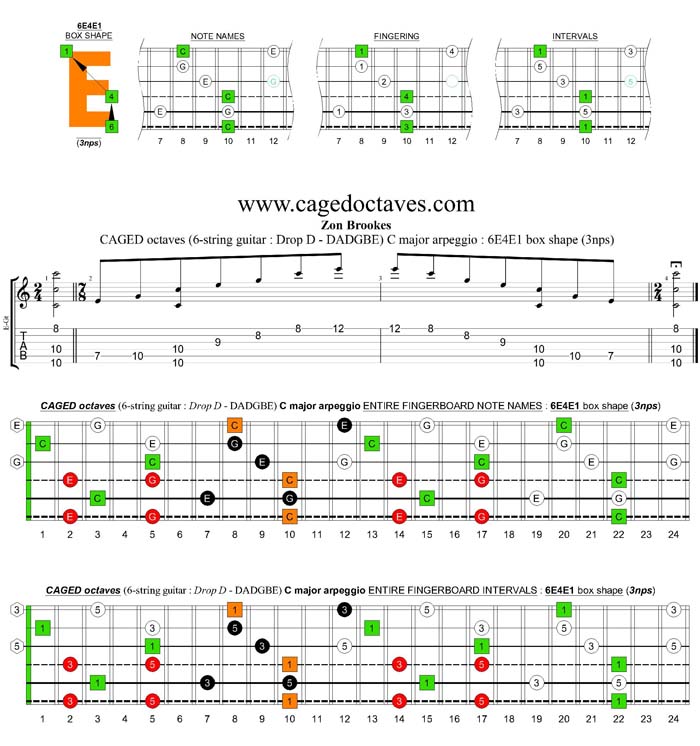

- 6E4E1

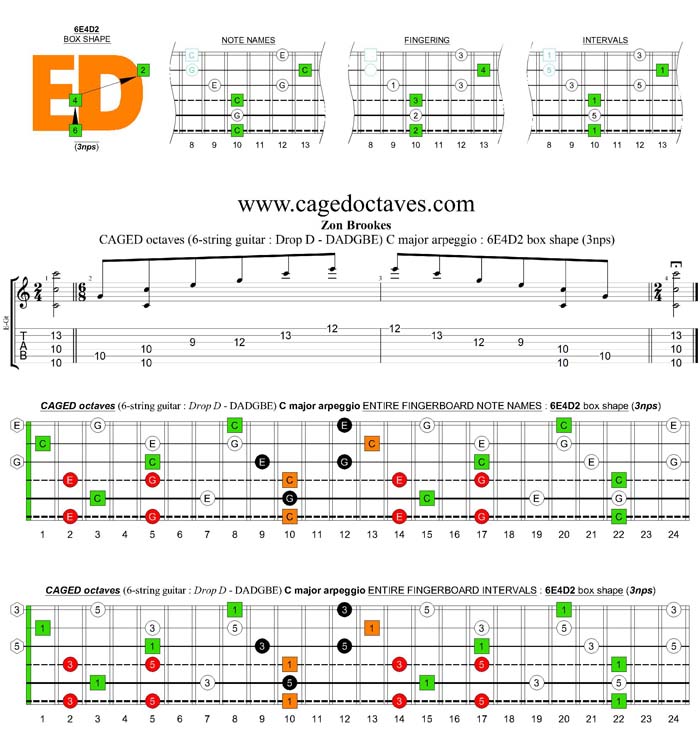

- 6E4D2

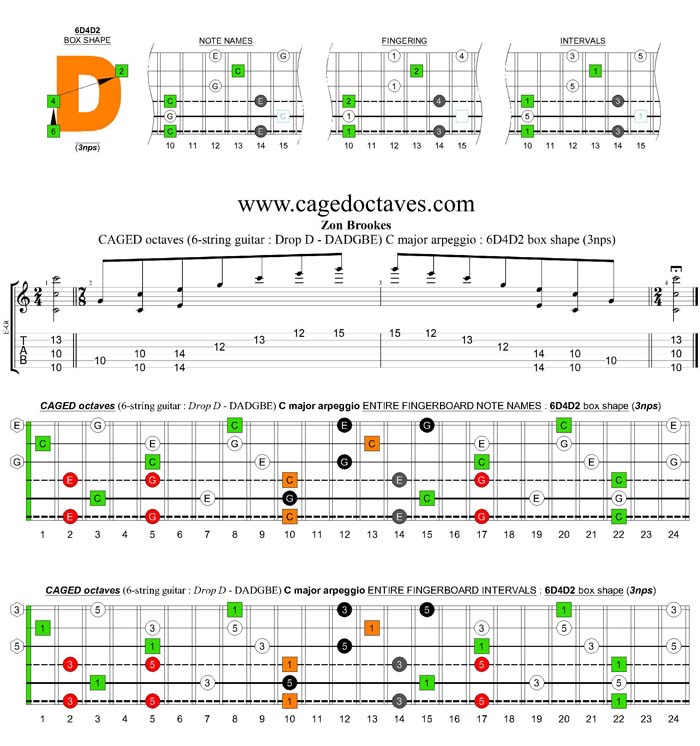

- 6D4D2

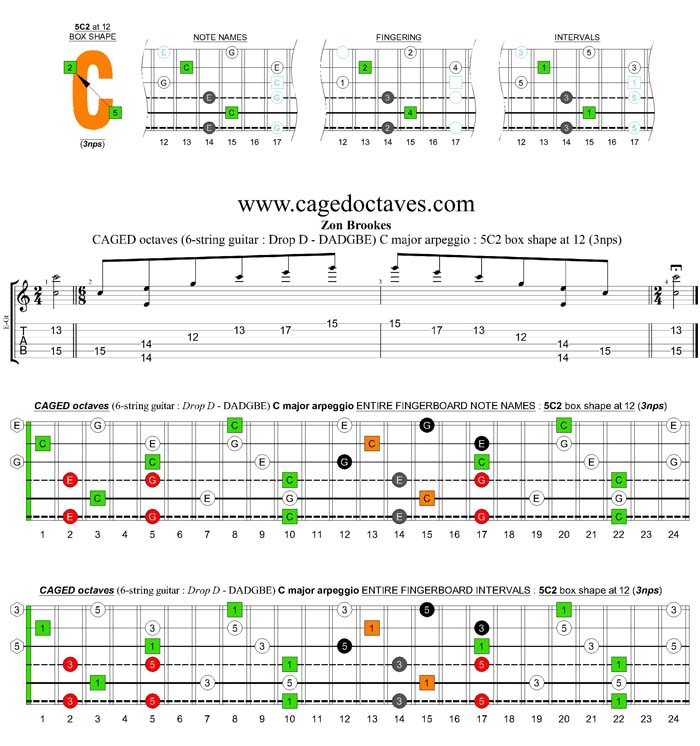

- 5C2 at 12
- 5C2
- 5A3
- 5A3G1
- 3G1
- 6E4E1
- 6E4D2
- 6D4D2
- 5C2 at 12
Once the individual box shapes have been assimilated all seven shapes should be linked together and played in one continuous exercise (with the first shape - 5C2 - being repeated at the 12th fret). The video shown to the right demonstrates the CAGED octaves 6-string guitar (Drop D: DADGBE) chain-linked sequence for the |
CAGED octaves : 6-string guitar (Drop D - DADGBE)

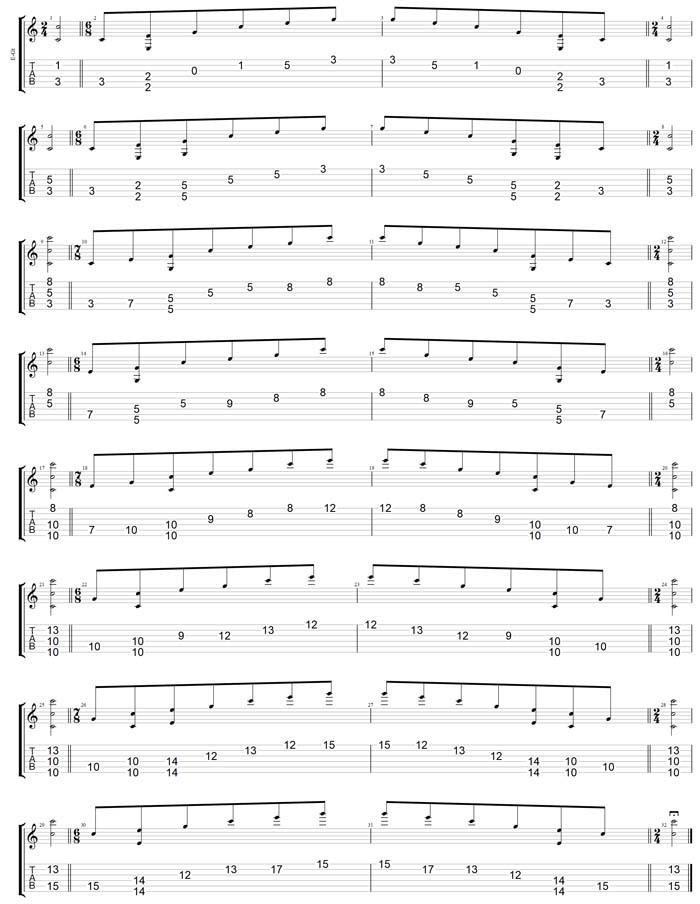

C major arpeggio (3nps) : GuitarPro7 TAB
The complete TAB for the previously described exercise follows:-
CAGED octaves : 6-string guitar (Drop D - DADGBE)

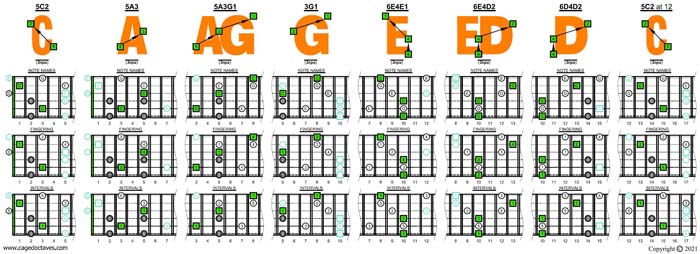

C major arpeggio : Box shapes
The box shapes for the previous exercise follows:-
CAGED octaves : 6-string guitar (Drop D - DADGBE)

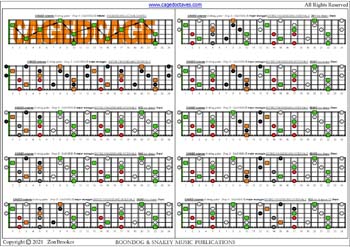

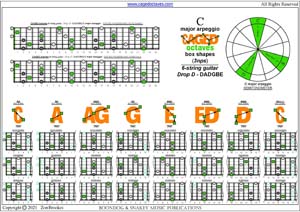

C major arpeggio (3nps) : Box shapes pdf & GuitarPro6 TAB pdf
|
|
|
|
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major arpeggio (3nps) : Overall fretboard box shapes
|
|
|
