CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) : General

In this BLOGoZON we take a look at the C major scale (ionian mode) and join them all together
for 6-string guitar (Drop D - DADGBE) to form one long CAGED octaves chain.

CAGED octaves Drop D logo

Below the 6-string guitar (Drop D - DADGBE) sequence is shown for C natural in the diagram that follows.

CAGED octaves Drop D - C natural octaves fretboard

GuitarPro6 fingerboard : C natural octaves

GuitarPro6 C natural octaves

The diagram that follows shows all five of the CAGED octaves shapes for use with the
box shapes for a 6-string guitar (Drop D - DADGBE).

6-String Guitar (Drop D - DADGBE) : C natural octaves

The diagrams that follow show all of the C major scale (ionian mode) notes plotted over the
6-string guitar's (Drop D - DADGBE) fretboard in the CAGED octaves and GuitarPro6 styles.

CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale (ionian mode) fretboard notes

GuitarPro6 fingerboard : C major scale (ionian mode)

GuitarPro6 C major scale

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major scale (ionian mode) are detailed below in the CAGED octaves manner:-

CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale (ionian mode) fretboard intervals

The tables and tabbed panels below detail all five box shapes for the
C major scale (ionian mode) in the CAGED octaves style.


CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) : YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale (ionian mode) : 5C2 box shape pdf
CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale(ionian mode) : 5A3 box shape pdf
CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale(ionian mode) : 3G1 box shape pdf
CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale(ionian mode) : 6E4E1 box shape pdf
CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale(ionian mode) : 6D4D2 box shape pdf
CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale(ionian mode) : 5C2 box shape at 12 pdf

CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) : Box shapes on YouTube

  • 5C2
  • 5A3
  • 3G1
  • 6E4E1
  • 6D4D2
  • 5C2 at 12

GuitarPro6 5C2

GuitarPro6 5A3

GuitarPro6 3G1

GuitarPro6 6E4E1

GuitarPro6 6D4D2

GuitarPro6 5C2 at 12


CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) : Box shapes & TAB

  • 5C2
  • 5A3
  • 3G1
  • 6E4E1
  • 6D42
  • 5C2 at 12

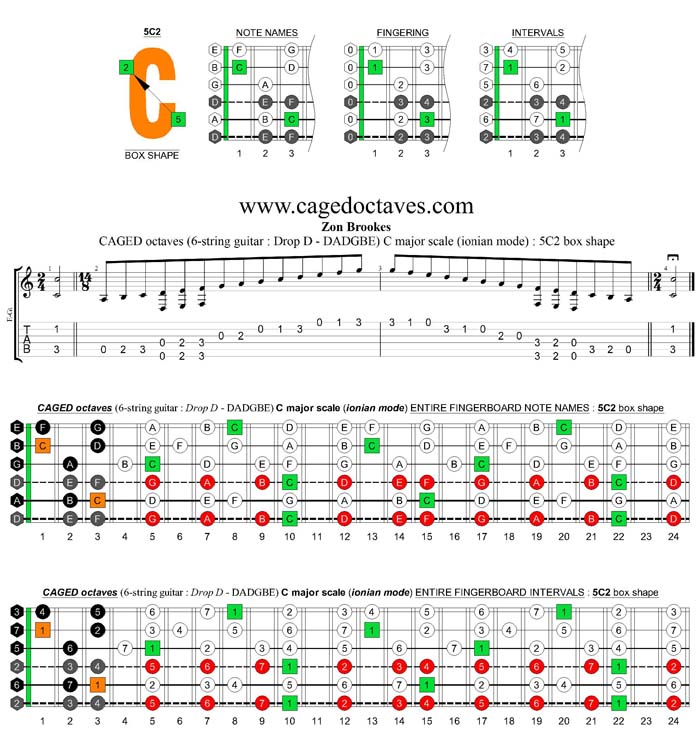

CAGED octaves C major scale (6-string guitar : Drop D - DADGBE) : 5C2 box shape

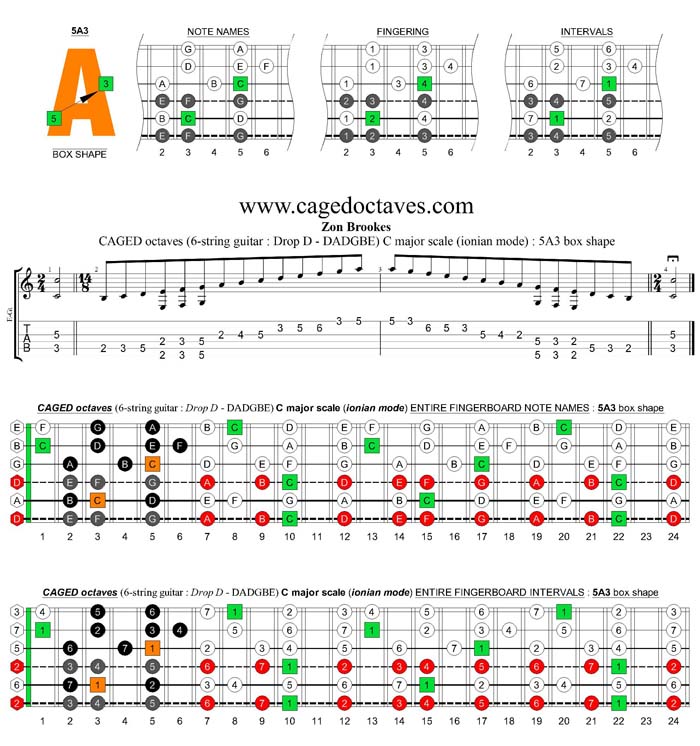

6-string guitar (Drop D - DADGBE) : CAGED octaves C major scale (ionian mode) : 5A3 box shape

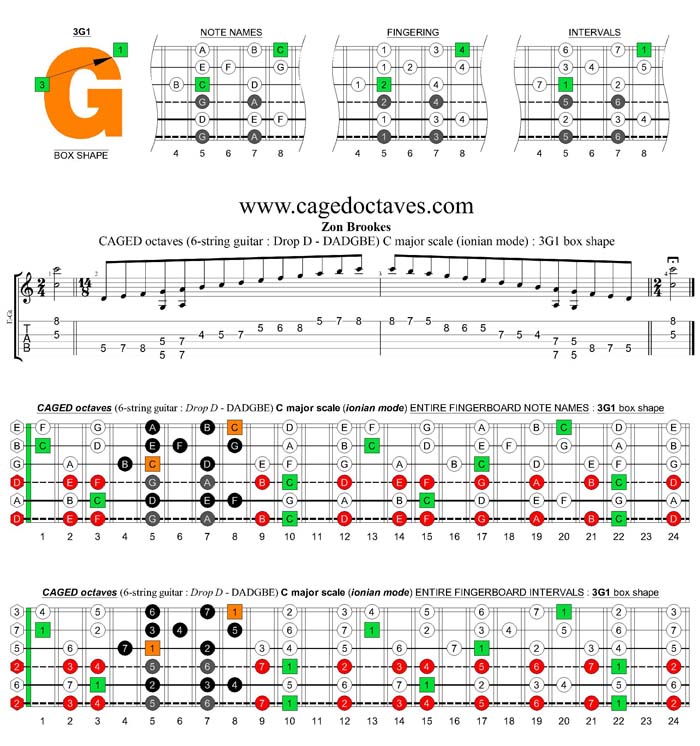

6-string guitar (Drop D - DADGBE) : CAGED octaves C major scale (ionian mode) : 3G1 box shape

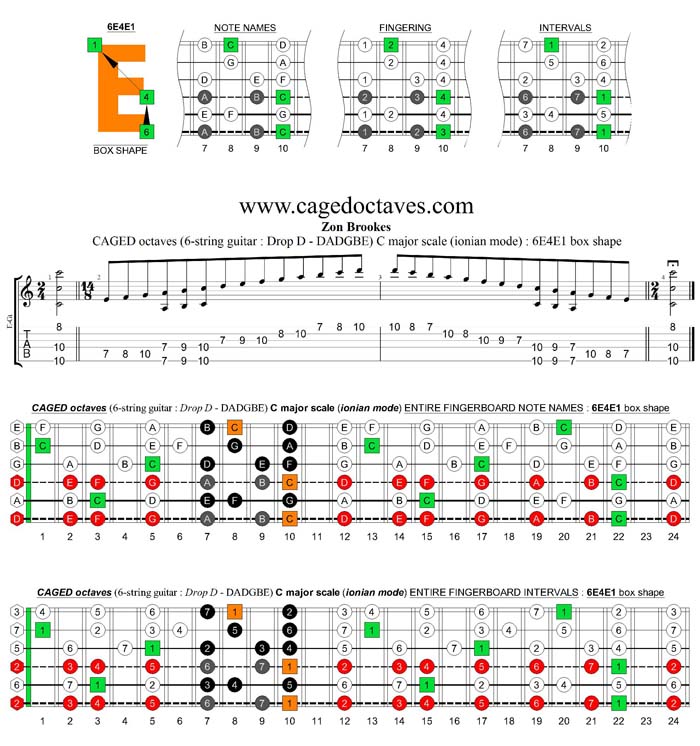

6-string guitar (Drop D - DADGBE) : CAGED octaves C major scale (ionian mode) : 6E4E1 box shape

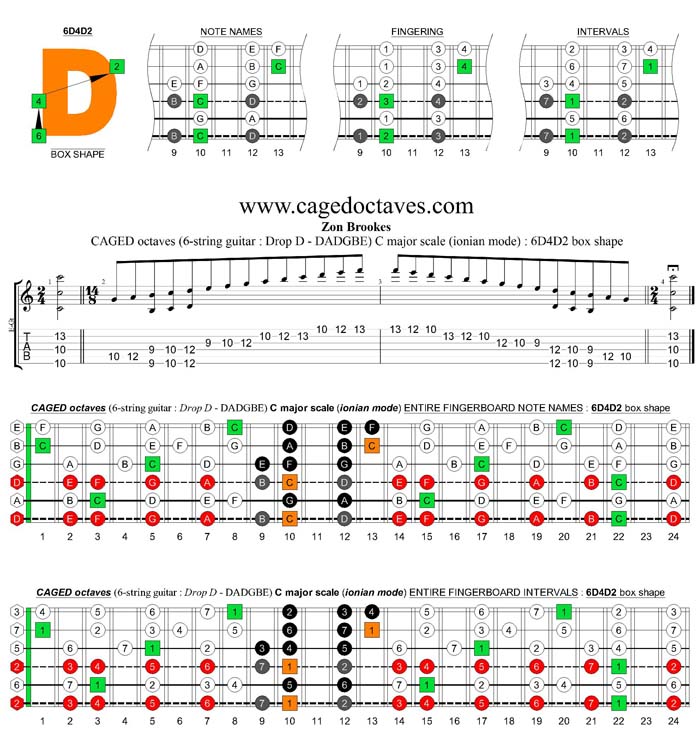

6-string guitar (Drop D - DADGBE) : CAGED octaves C major scale (ionian mode) : 6D4D2 box shape

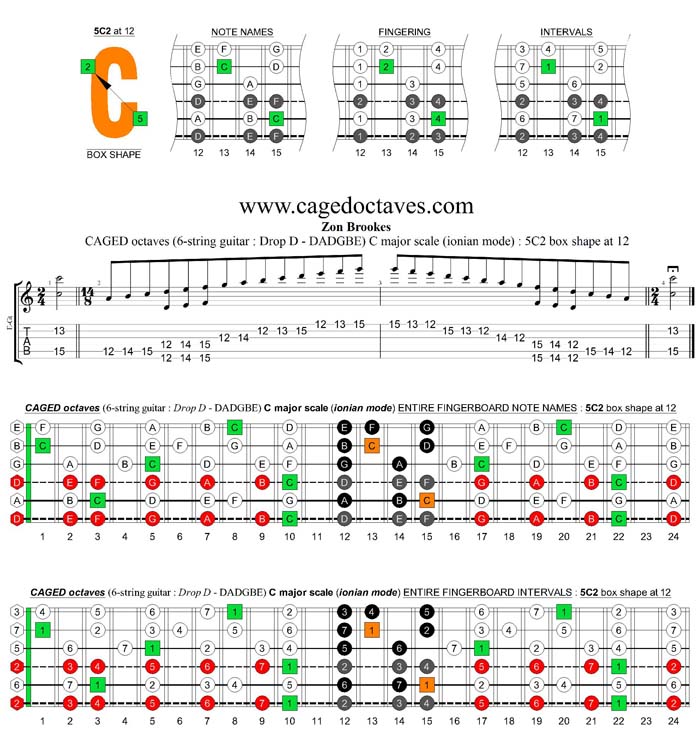

6-string guitar (Drop D - DADGBE) : CAGED octaves C major scale (ionian mode) : 5C2 box shape at 12


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5C2 - being repeated at the 12th fret).

The video shown to the right demonstrates the CAGED octaves chain-linked sequence for the C major scale box shapes.


The complete TAB for the previous exercise follows:-

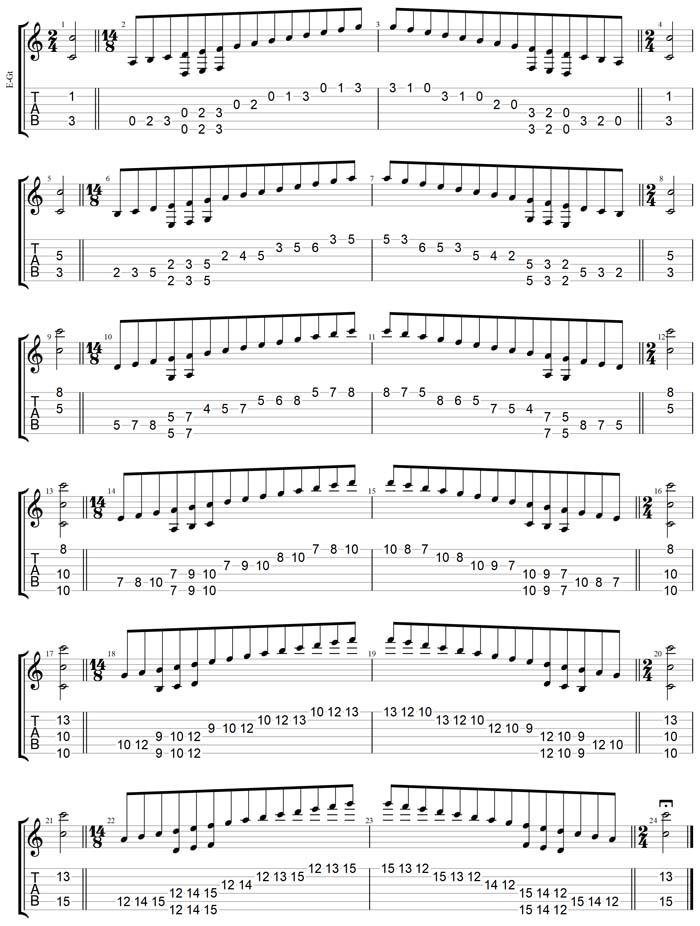

GuitarPro7 TAB :  C major scale(ionian mode) box shapes (6-string guitar : Drop D - DADGBE)


The box shapes for the previous exercise follow:-

CAGED octaves (6-string guitar : Drop D - DADGBE) C major scale (ionian mode) box shapes

CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode)
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

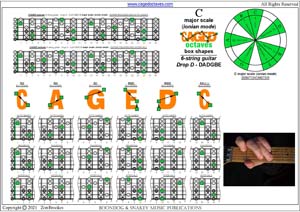

6-string guitar (Drop D - DADGBE) : CAGED octaves C major scale (ionian mode) box shapes pdf

GuitarPro7 TAB: 6-string guitar (Drop D - DADGBE) C major scale (ionian mode) box shapes pdfGuitarPro7 TAB: 6-string guitar (Drop D - DADGBE) C major scale (ionian mode) box shapes pdf


CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) : Overall fretboard box shapes

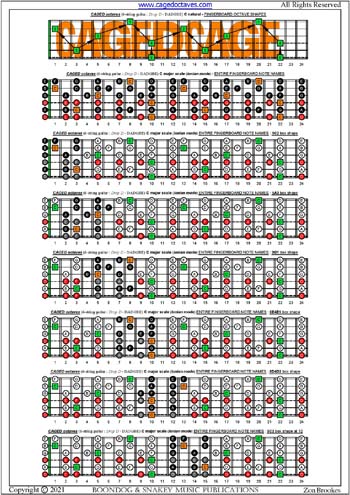

6-string guitar (Drop D - DADGBE) C major scale (ionian mode) notes pdf

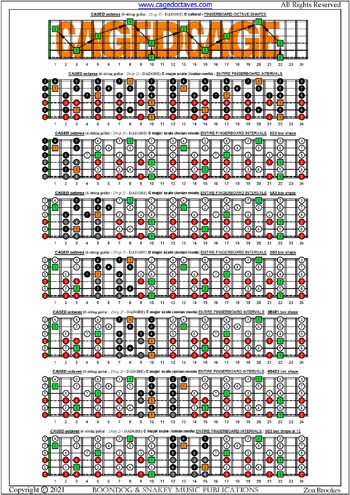

6-string guitar (Drop D - DADGBE) C major scale (ionian mode) intervals pdf
