CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) 3nps : General
In BLOGoZON No.664 the box shapes for the C major scale (ionian mode) were presented for
6-string guitar (Drop D - DADGBE) using the standard CAGED octaves guitar system adapted for Drop D.
In this BLOGoZON we look again at the C major scale (ionian mode), but with 3nps shapes and
join them all together to form one long Drop D : CAGED octaves chain.
The diagram that follows shows all seven of the octave shapes used with the
three notes per string patterns for Drop D : 6-string guitar.

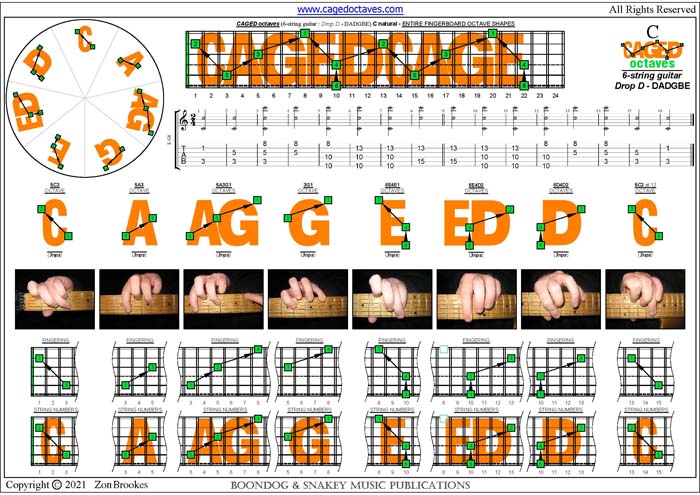

The conjoined Drop D : CAGED octaves sequence is shown for C natural in the diagram that follows.
GuitarPro6 fingerboard : C natural octaves
The diagram that follows shows all seven of the Drop D : CAGED octaves shapes for use with the
3nps box shapes for a 6-string guitar (Drop D - DADGBE).

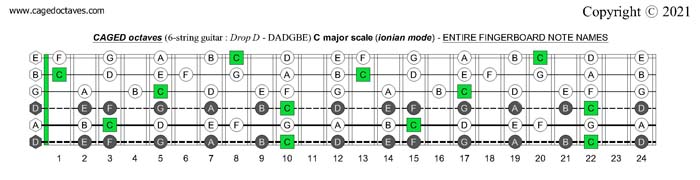

The diagrams that follow show all of the C major scale (ionian mode) notes plotted over the
6-string guitar's (Drop D - DADGBE) fretboard in the CAGED octaves and GuitarPro6 styles.
GuitarPro6 fingerboard : C major scale (ionian mode)

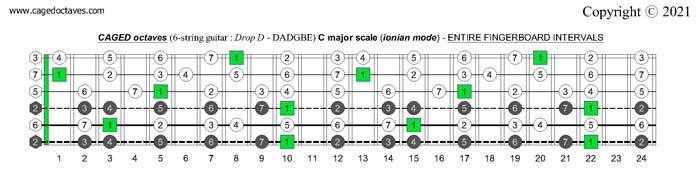

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major scale (ionian mode) are detailed below in the CAGED octaves manner:-

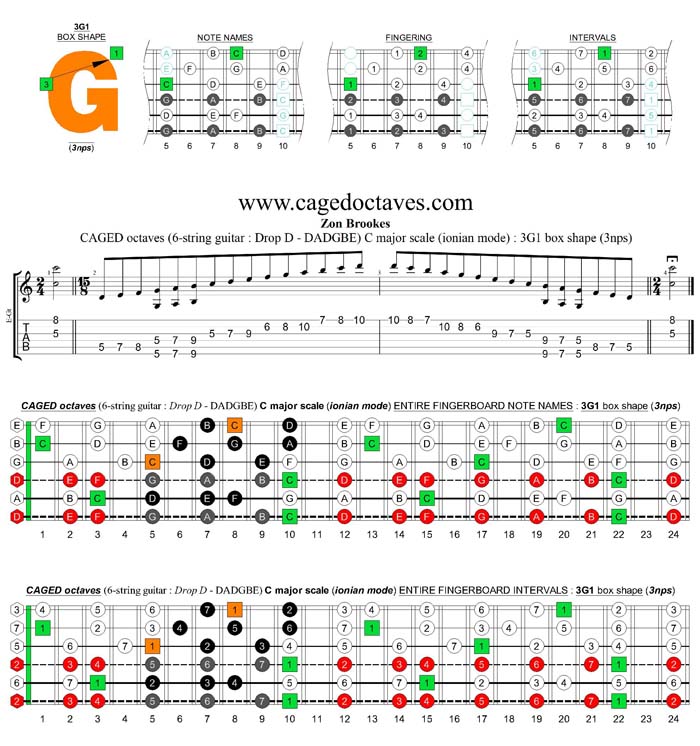

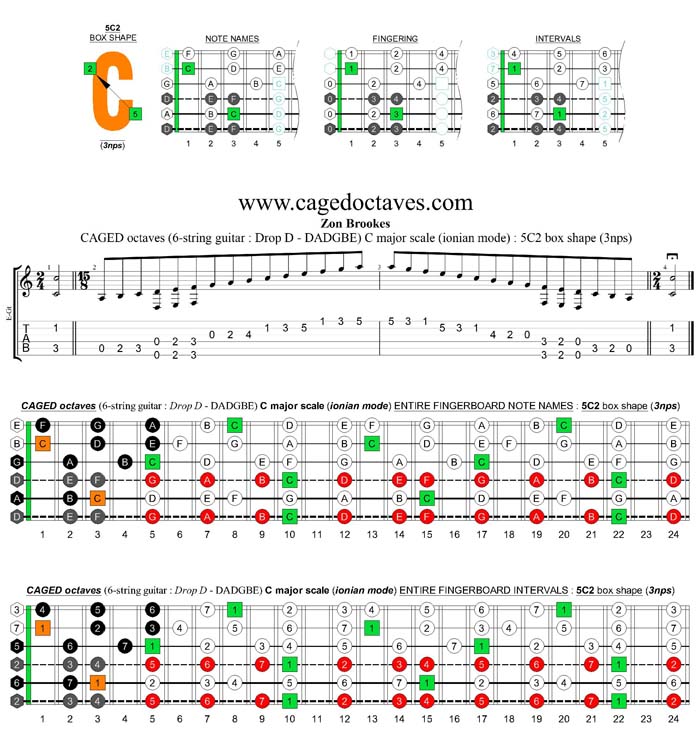

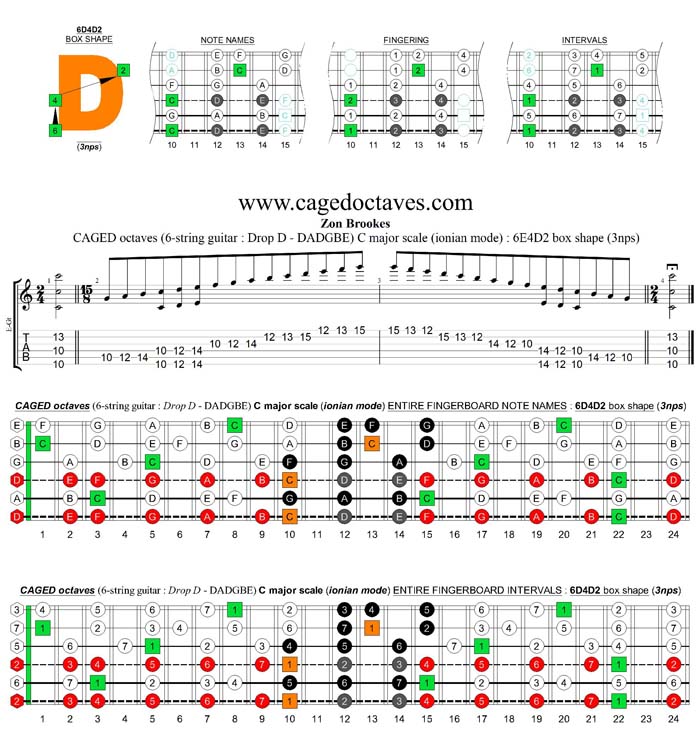

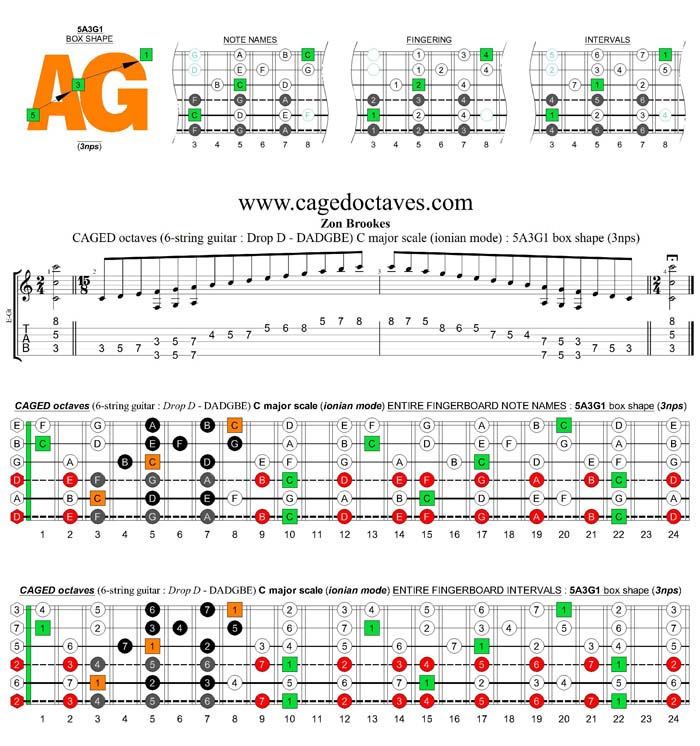

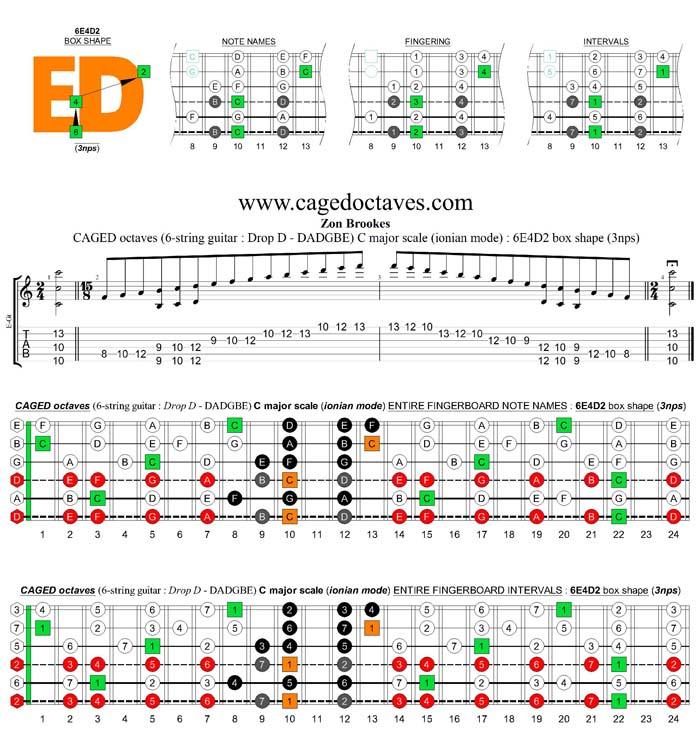

The tables and tabbed panels below detail all seven box shapes for the 3nps
C major scale (ionian mode) in the
Drop D : CAGED octaves style.
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) 3nps : YouTube videos & pdf files
|
|||||||
|
|||||||
|
|
|
|
|
|
|
|
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) 3nps : Box shapes on YouTube
- 5C2

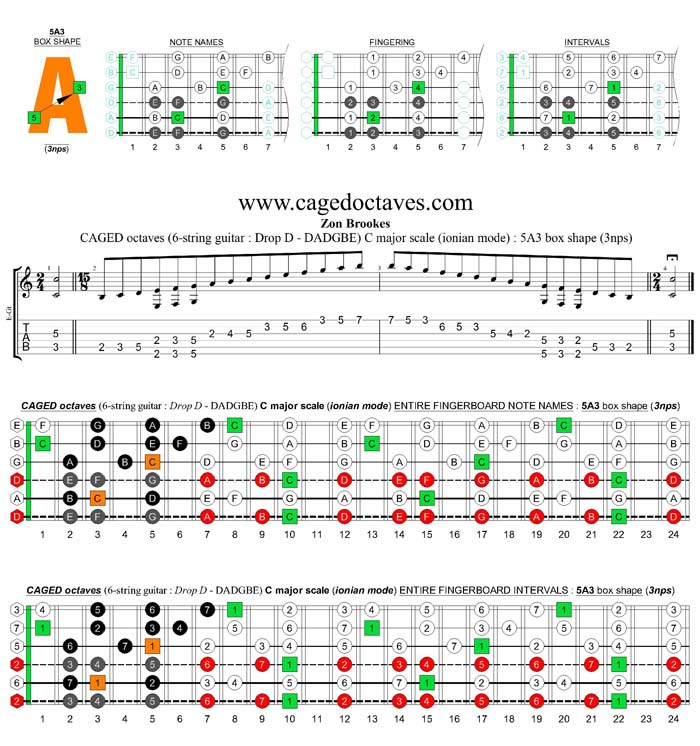

- 5A3
- 5A3G1
- 3G1

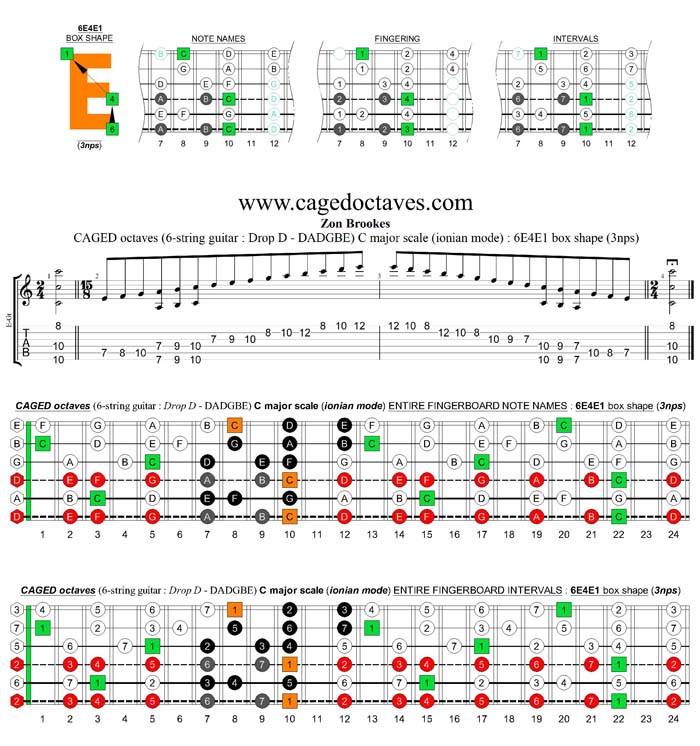

- 6E4E1
- 6E4D2
- 6D4D2

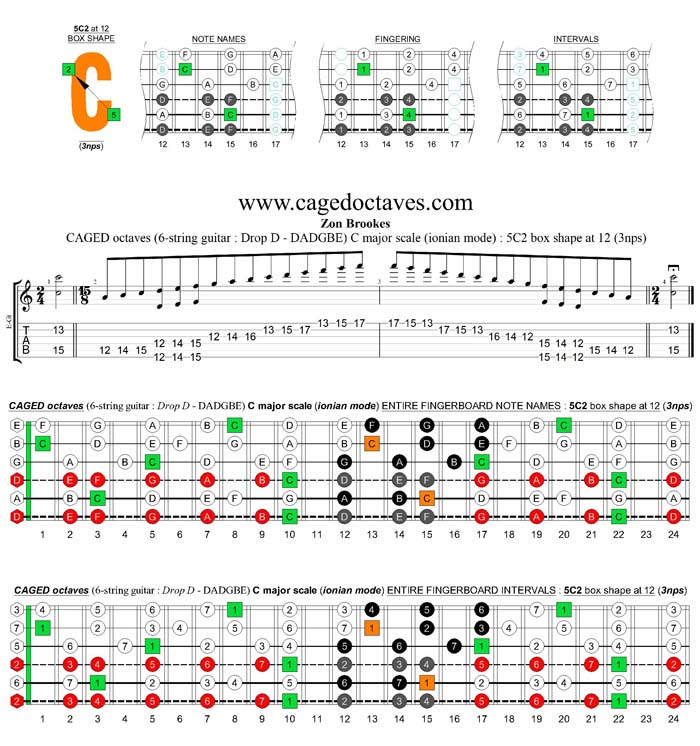

- 5C2 at 12
- 5C2
- 5A3
- 5A3G1
- 3G1
- 6E4E1
- 6E4D2
- 6D4D2
- 5C2 at 12
Once the individual box shapes have been assimilated all seven shapes should be linked together and played in one continuous exercise (with the first shape - 5C2 - being repeated at the 12th fret). The video shown to the right demonstrates the Drop D : CAGED octaves |
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) 3nps : GuitarPro7 TAB

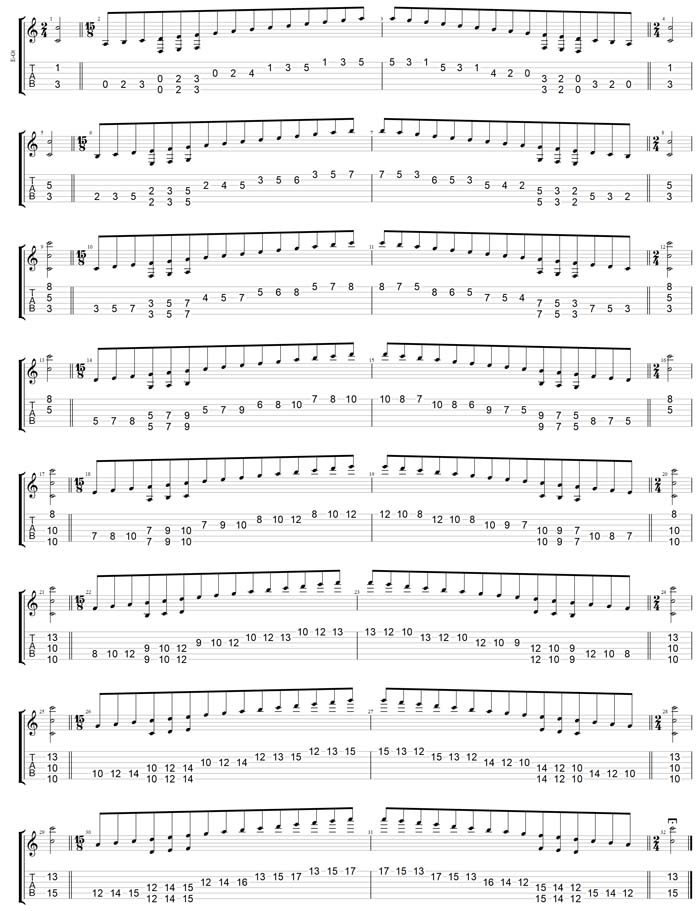

The complete TAB for the previously described exercise follows:-
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) 3nps : Box shapes
The box shapes for the previous exercise follows:-
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) 3nps

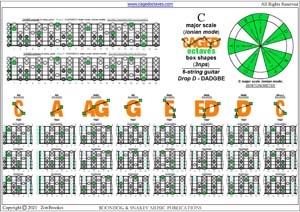

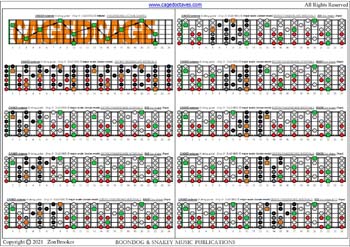

Box shapes pdf & GuitarPro6 TAB pdf
|
|
|
|
CAGED octaves : 6-string guitar (Drop D - DADGBE)
C major scale (ionian mode) 3nps : Overall fretboard box shapes
|
|
|
