AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
General

In BLOGoZON No.835:B1 the A minor scale (aeolian mode) (1 2 ♭3 5 ♭6 ♭7 - A B C D E F G)
box shapes were presented using the AGEDB octaves methodology - this is the
CAGED octaves guitar method adapted and improved for 7-string guitar (B1 standard - BEADGBE).

BAGED octaves logo : 7-string guitar (B1 standard - BEADGBE)

The conjoined AGEDB octaves sequence is shown for A natural in the diagram that follows.

A natural octave shapes : 7-string guitar (B1 standard - BEADGBE)

In this BLOGoZON we look at the A minor scale (aeolian mode) (1 2 ♭3 5 ♭6 ♭7 - A B C D E F G),
again, but with 3nps shapes and join them all together to form one long AGEDB octaves chain.

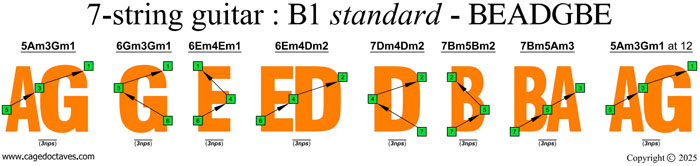

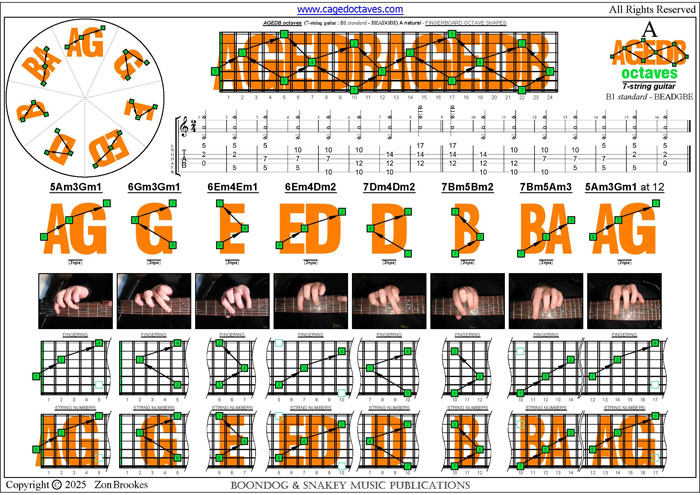

The diagram that follows shows all seven of the AGEDB octaves shapes for use with the
three notes per string patterns for a 7-string guitar (B1 standard - BEADGBE).

AGEDB octaves:  A natural octaves (3nps) shapes

GuitarPro6 fingerboard : A natural octaves

GuitarPro6 A natural octaves

The diagram that follows shows all seven of the AGEDB octaves shapes for use with the
box shapes for a 7-string guitar (B1 standard - BEADGBE).

AGEDB octaves : A natural octaves (3nps)


The diagrams that follow show all of the A minor scale (aeolian mode) (1 2 ♭3 5 ♭6 ♭7 - A B C D E F G)
notes plotted over the 7-string guitar's fretboard in the AGEDB octaves and GuitarPro6 styles:-

AGEDB octaves (7-string guitar : B1 standard - BEADGBE): A minor scale (aeolian mode) entire fretboard notes

GuitarPro6 fingerboard : A minor scale (aeolian mode) (1 2 ♭3 5 ♭6 ♭7 - A B C D E F G)

GuitarPro6 A minor scale

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
A minor scale (aeolian mode) (1 2 ♭3 5 ♭6 ♭7 - A B C D E F G)
are detailed below in the AGEDB octaves manner.

AGEDB octaves (7-string guitar : B1 standard - BEADGBE): A minor scale (aeolian mode) entire fretboard intervals

The tables and tabbed panels below detail all five box shapes for the
A minor scale (aeolian mode) (1 2 ♭3 5 ♭6 ♭7 - A B C D E F G)
for 7-string guitar (B1 standard - BEADGBE).


AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
YouTube videos & box shape pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 5Am3 box shape (3nps) pdf

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 6Gm3Gm1 box shape (3nps) pdf

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 6Em4Em1 box shape (3nps) pdf

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 6Em4Dm2 box shape (3nps) pdf

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 7Dm4Dm2 box shape (3nps) pdf

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 7Bm5Bm2 box shape (3nps) pdf

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 7Bm5Am3 box shape (3nps) pdf

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 5Am3Gm1  box shape at 12 (3nps) pdf


AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
GuitarPro6 fingerboards & YouTube videos

  • 5Am3Gm1
  • 6Gm3Gm1
  • 6Em4Em1
  • 6Em4Dm2
  • 7Dm4Dm2
  • 7Bm5Bm2
  • 7Bm5Am3
  • 5Am3Gm1

GuitarPro6 A minor scale 3nps : 5Am3Gm1 box shape

GuitarPro6 A minor scale 3nps : 6Gm3Gm1 box shape

GuitarPro6 A minor scale 3nps : 6Em4Em1 box shape

GuitarPro6 A minor scale 3nps : 6Em4Dm2 box shape

GuitarPro6 A minor scale 3nps : 7Dm4Dm2 box shape

GuitarPro6 A minor scale 3nps : 7Bm5Bm2 box shape

GuitarPro6 A minor scale 3nps : 7Bm5Am3 box shape

GuitarPro6 A minor scale 3nps : 5Am3Gm1 box shape at 12


AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
Box shapes & GuitarPro8 TAB

  • 5Am3Gm1
  • 6Gm3Gm1
  • 6Em4Em1
  • 6Em4Dm2
  • 7Dm4Dm2
  • 7Bm5Bm2
  • 7Bm5Am3
  • 5Am3Gm1

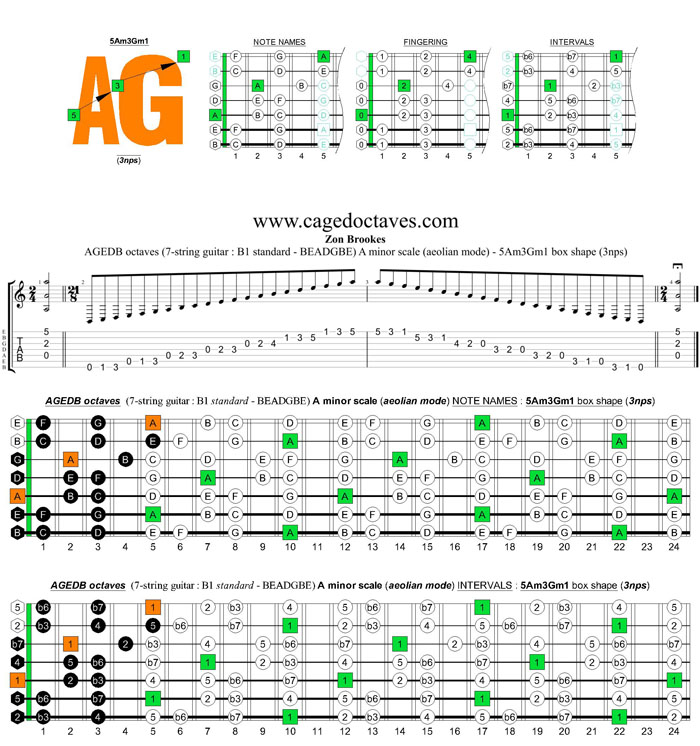

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 5Am3 box shape (3nps)

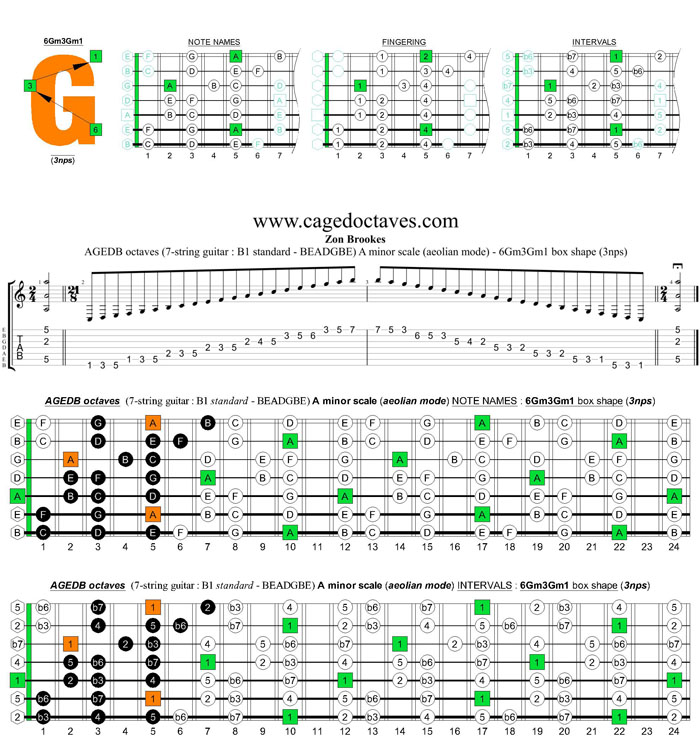

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 6Gm3Gm1 box shape (3nps)

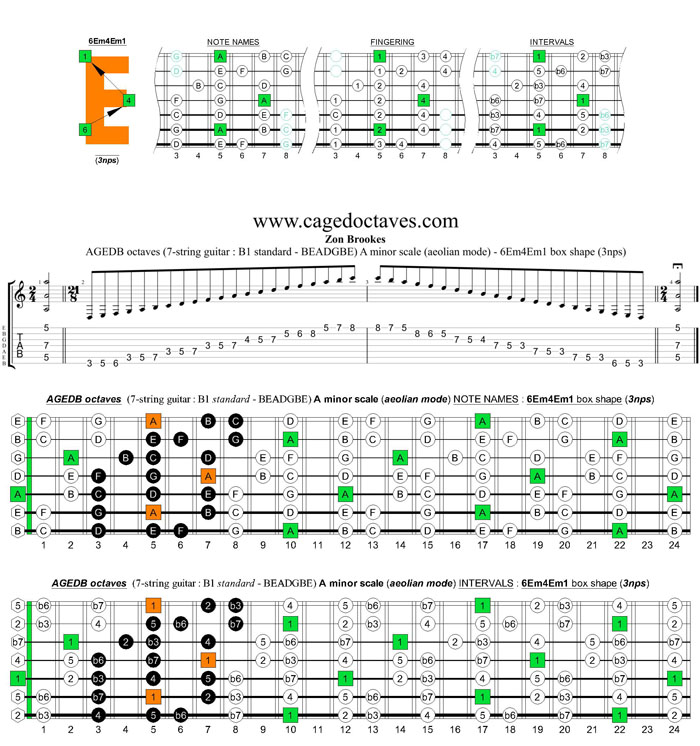

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 6Em4Em1 box shape (3nps)

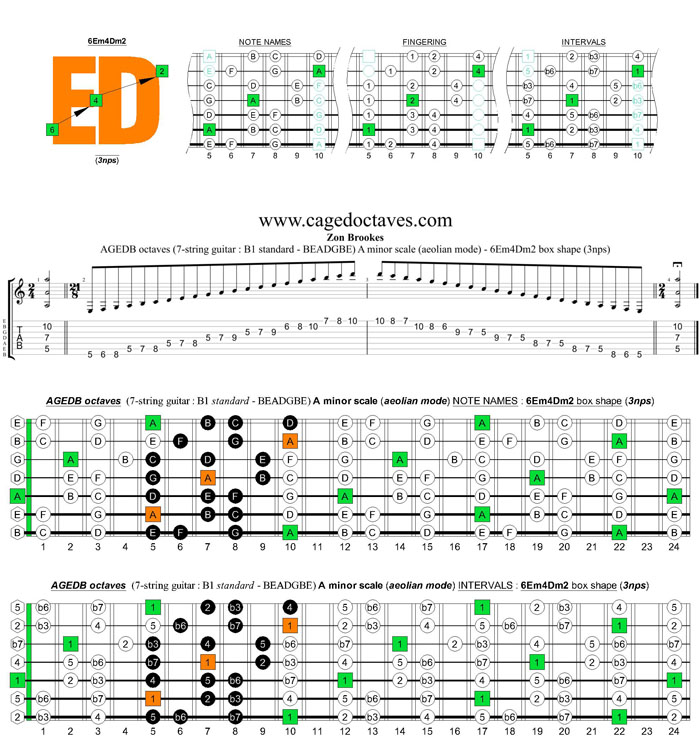

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 6Em4Dm2 box shape (3nps)

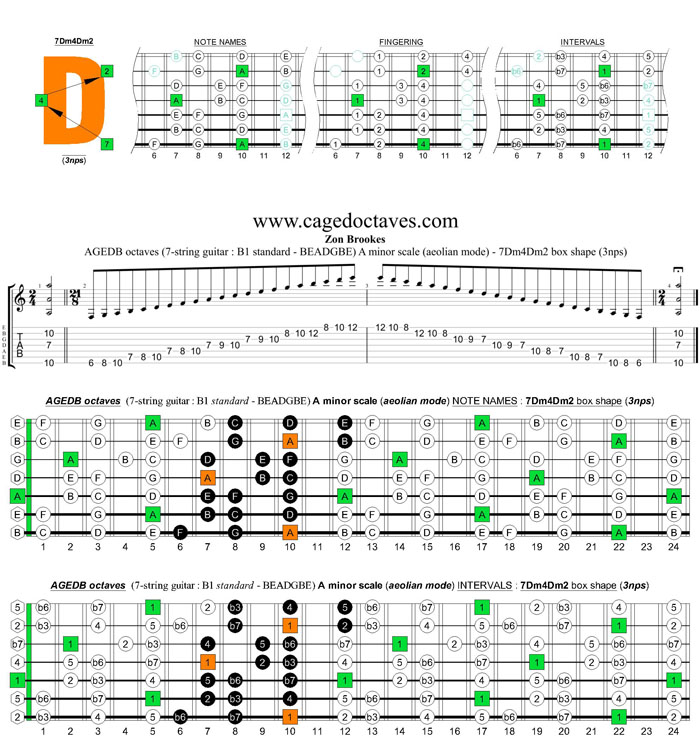

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 7Dm4Dm2 box shape (3nps)

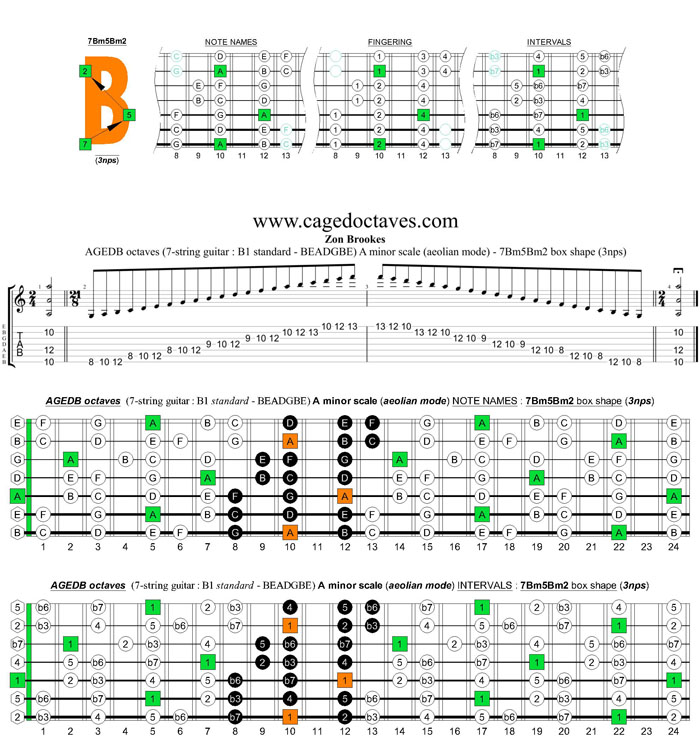

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 7Bm5Bm2 box shape (3nps)

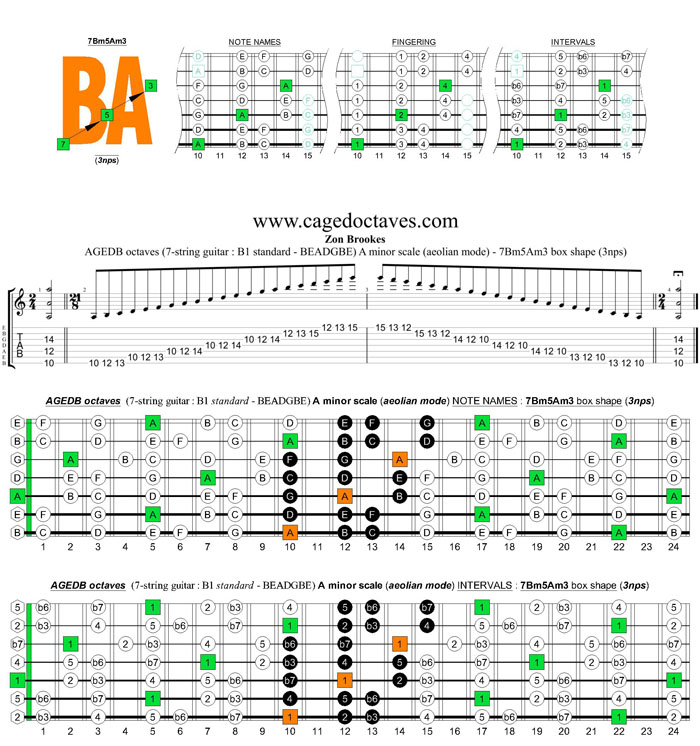

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 7Bm5Am3 box shape (3nps)

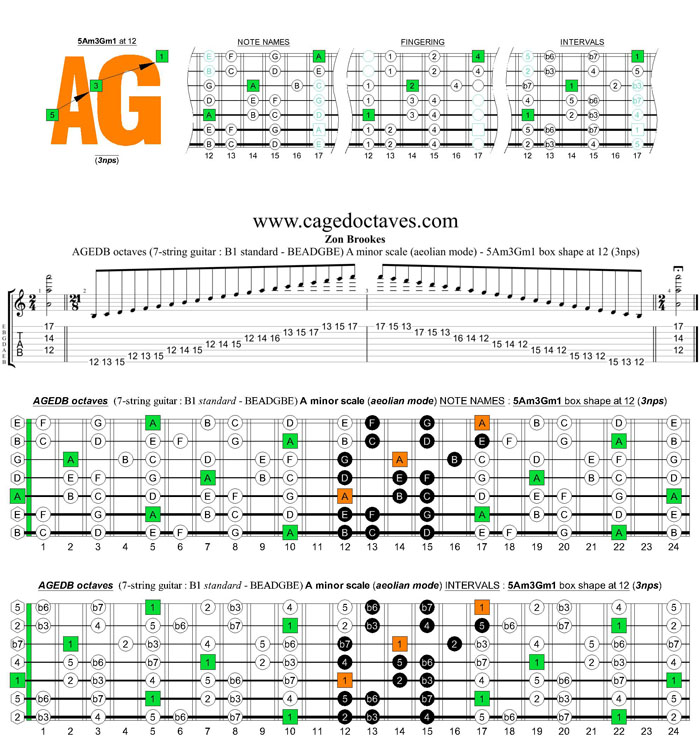

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) : 5Am3Gm1 box shape at 12 (3nps)



AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
YouTube video

Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5Am3 - being repeated at the 12th fret).

The video shown below demonstrates the AGEDB octaves chain-linked sequence for the
A minor scale (aeolian mode) box shapes for 7-string guitar (B1 standard - BEADGBE).


AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
Box shapes & GuitarPro8 TAB

The GuitarPro8 TAB shown below demonstrates the AGEDB octaves chain-linked sequence for the
A minor scale (aeolian mode) (1 2 ♭3 5 ♭6 ♭7 - A B C D E F G) box shapes
for 7-string guitar (B1 standard - BEADGBE).

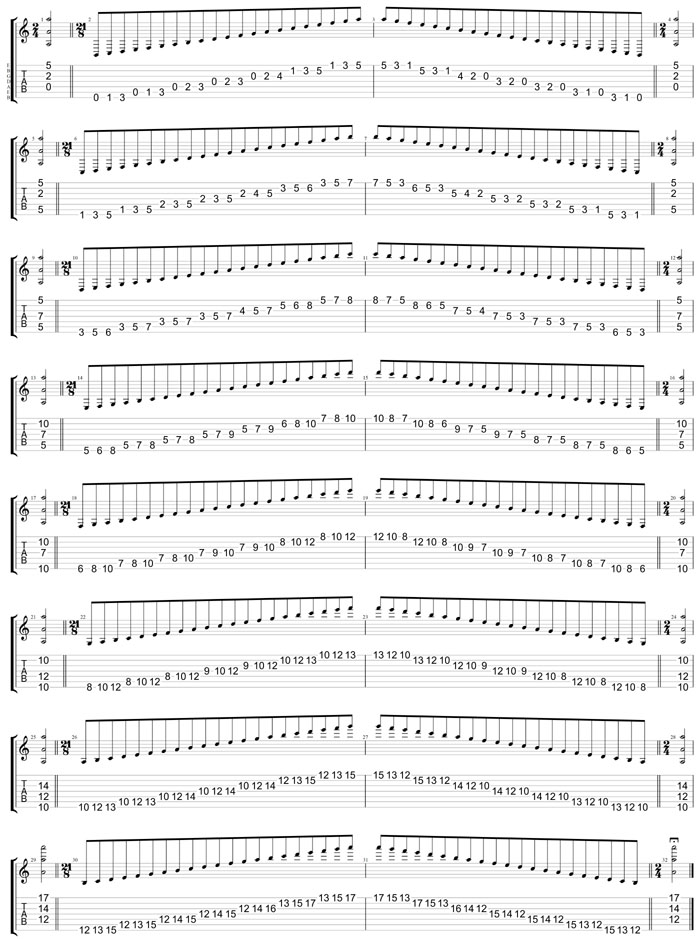

GuitarPro8 TAB: A minor scale (aeolian mode) box shapes (3nps)


AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
Box shapes

The box shapes for the previous exercise follows:-

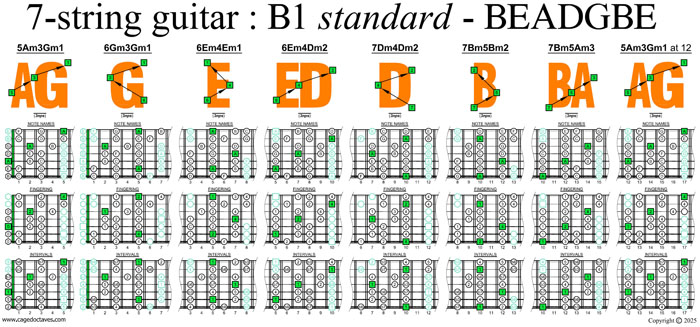

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) box shapes (3nps)

AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
Box shapes pdf & GuitarPro8 TAB pdf

Flash iconGuitar Pro 6 icon

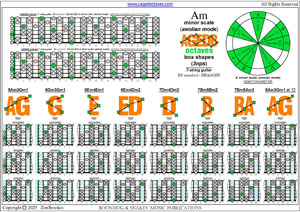

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) box shapes (3nps) pdf

GuitarPro8 TAB: AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) box shapes (3nps) pdfGuitarPro8 TAB: AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) box shapes (3nps) pdf

AGEDB octaves : 7-string guitar (B1 standard - BEADGBE)
A minor scale (aeolian mode) 3nps
1 2 ♭3 5 ♭6 ♭7 - A B C D E F G
Overall fretboard box shapes

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) box shapes (3nps) : entire fretboard notes

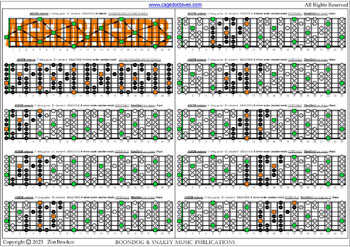

AGEDB octaves (7-string guitar : B1 standard - BEADGBE) A minor scale (aeolian mode) box shapes (3nps) : entire fretboard intervals
