BAGED octaves : 8-string guitar (Drop E - EBEADGBE)
C major arpeggio : General

In this BLOGoZON we take a look at the C major arpeggio and join them all together
for 8-string guitar (Drop E - EBEADGBE) to form one long BAGED octaves chain.

BAGED octaves logo : 8-String Guitar (Drop E - EBEADGBE)

Below the C natural octave sequence is shown for 8-string guitar (Drop E - EBEADGBE).

C natural octaves (8-string guitar : Drop A - AEADGBE) BAGED octaves fretboard

GuitarPro6 fingerboard : C natural octaves

GuitarPro6 C natural octaves

The diagram that follows shows all five of the BAGED octaves shapes for use with the
box shapes for 8-string guitar (Drop E - EBEADGBE).

8-string Drop E octave shapes

The diagram that follows shows all five of the BAGED octaves shapes for use with the
box shapes for 8-string guitar (Drop E - EBEADGBE).

8-String Guitar (Drop E - EBEADGBE) : C natural octaves

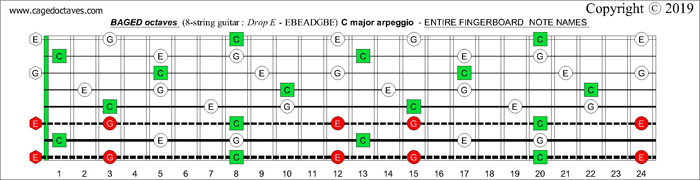

The diagrams that follow show all of the C major arpeggio notes plotted over the
8-string guitar's (Drop E - EBEADGBE) fretboard in the BAGED octaves and GuitarPro6 styles:-

8-string guitar (Drop E - EBEADGBE) : BAGED octaves C major arpeggio fretboard notes

GuitarPro6 fingerboard : C major arpeggio

GuitarPro6 (Drop E : 8-string): C major arpeggio

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major arpeggio are detailed below in the BAGED octaves manner.

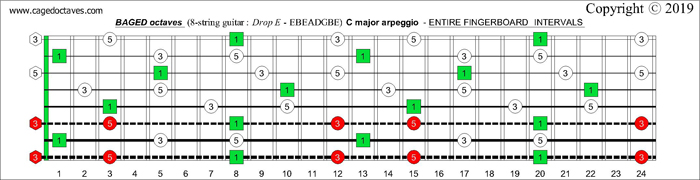

8-string guitar (Drop E - EBEADGBE) : CAGED octaves C major arpeggio fretboard intervals

The tables and tabbed panels below detail all five box shapes for the
C major arpeggio in the BAGED octaves style.


BAGED octaves : 8-string guitar (Drop E - EBEADGBE)
C major arpeggio box shapes

YouTube icon

Flash iconGuitar Pro 6 icon

BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 7B5B2 box shape pdf
BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 5A3 box shape pdf
BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 8G6G3G1 box shape pdf
BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 8E6E4E1 box shape pdf
BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 7D4D2 box shape pdf
BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 7B5B2 box shape at 12 pdf

BAGED octaves : 8-string guitar (Drop E - EBEADGBE)
C major arpeggio box shapes

  • 7B5B2
  • 5A3
  • 8G6G3G1
  • 8E6E4E1
  • 7D4D2
  • 7B5B2 at 12

GuitarPro6 (8 string : Drop E) C major arpeggio : 7B5B2 box shape

GuitarPro6 (8 string : Drop E) C major arpeggio : 5A3 box shape

GuitarPro6 (8 string : Drop E) C major arpeggio : 8G6G3G1 box shape

GuitarPro6 (8 string : Drop E) C major arpeggio : 8E6E4E1 box shape

GuitarPro6 (8 string : Drop E) C major arpeggio : 7D4D2 box shape

GuitarPro6 (8 string : Drop E) C major arpeggio : 7B5B2 box shape at 12


BAGED octaves : 8-string guitar (Drop E - EBEADGBE)
C major arpeggio box shapes

  • 7B5B2
  • 5A3
  • 8G6G3G1
  • 8E6E4E1
  • 7D4D2
  • 7B5B2 at 12

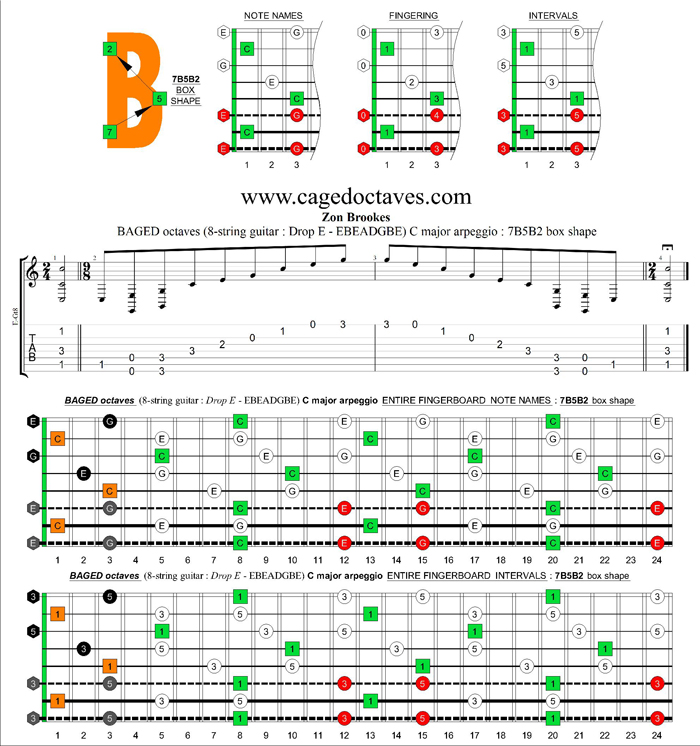

BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 7B5B2 box shape

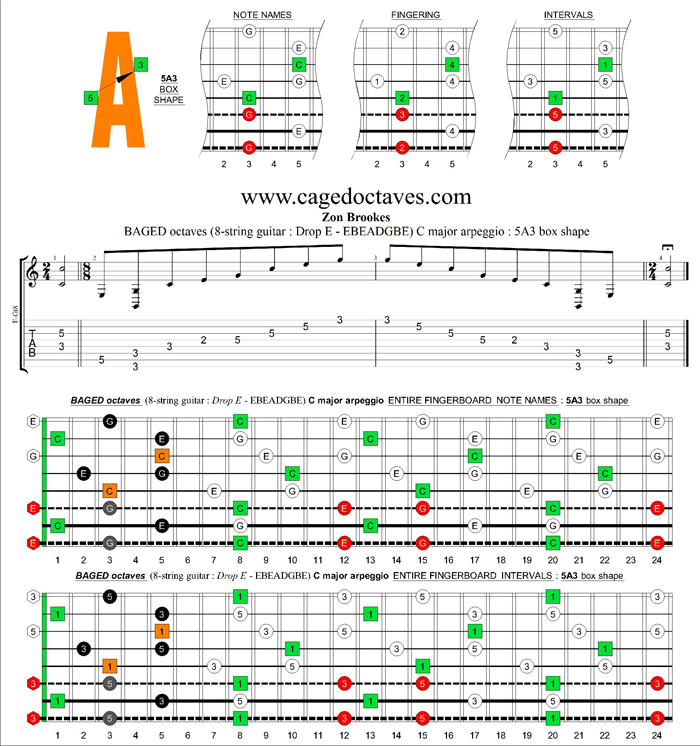

BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 5A3 box shape

BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 8G6G3G1 box shape

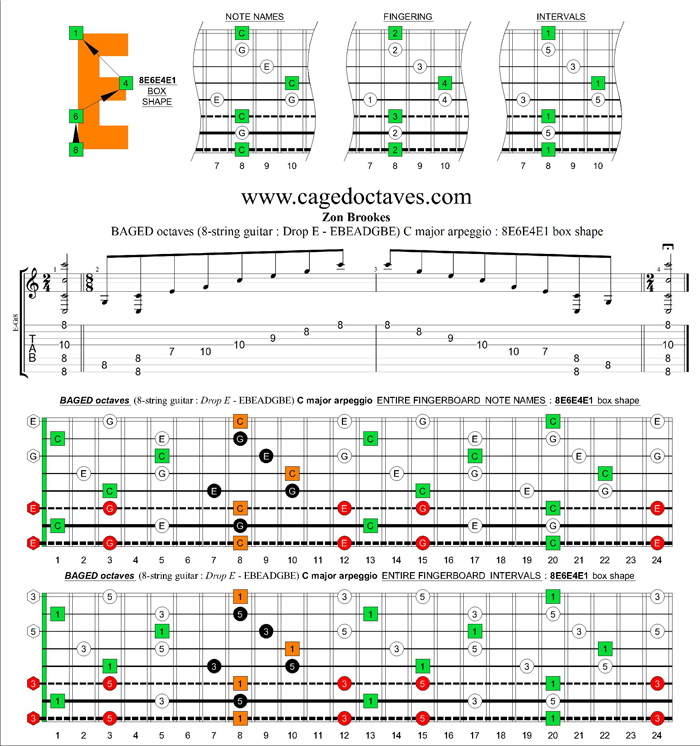

BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 8E6E4E1 box shape

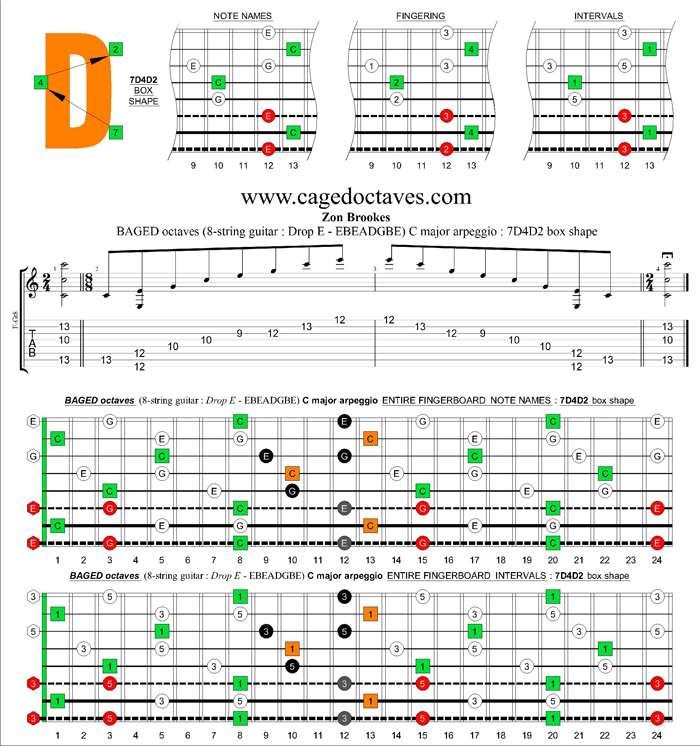

BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 7D4D2 box shape

BAGED octaves (8-string guitar : Drop E - EBEADGBE) C major arpeggio : 7B5B2 box shape at 12


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 7B5B2 - being repeated at the 12th fret).

The video shown to the right demonstrates the BAGED octaves chain-linked sequence
for the C major arpeggio box shapes.

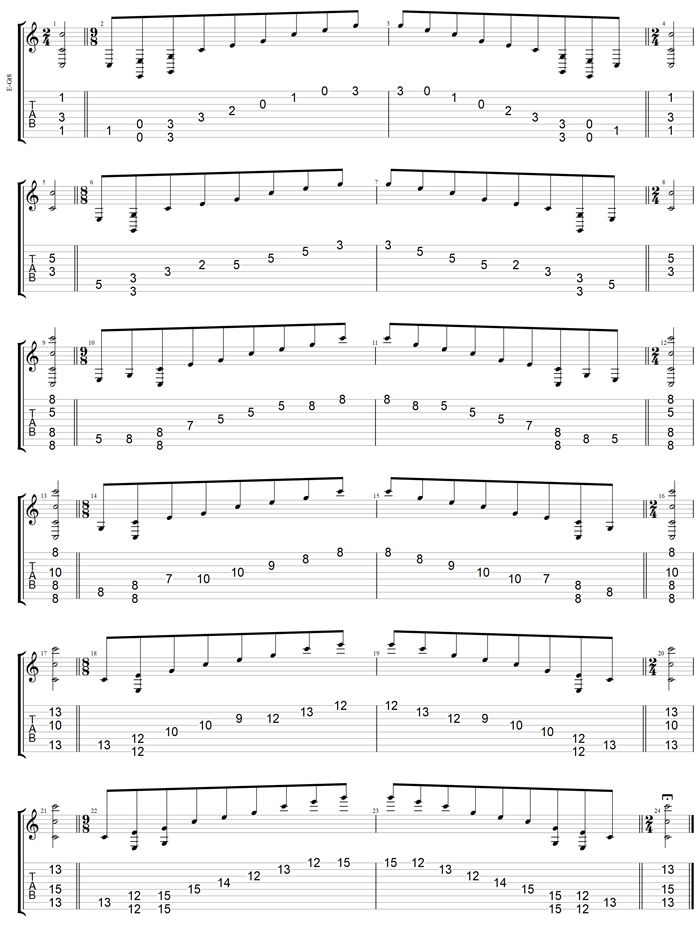

The complete TAB for the previous exercise follows:-

GuitarPro7 TAB C major arpeggio (8-string guitar: Drop E - EBEADGBE) box shapes


The box shapes for the previous exercise follow:-

C major arpeggio (8-string guitar: Drop E) box shapes

BAGED octaves : 8-string guitar (Drop E - EBEADGBE)
C major arpeggio
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

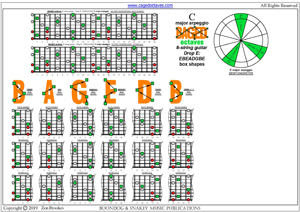

8-string guitar (Drop E - EBEADGBE) - C major arpeggio box shapes pdf

C major arpeggio (8-string guitar: Drop E - EBEADGBE) box shapes GuitarPro7 TAB pdfC major arpeggio (8-string guitar: Drop E - EBEADGBE) box shapes GuitarPro7 TAB pdf


BAGED octaves : 8-string guitar (Drop E - EBEADGBE)
C major arpeggio : Overall fretboard box shapes

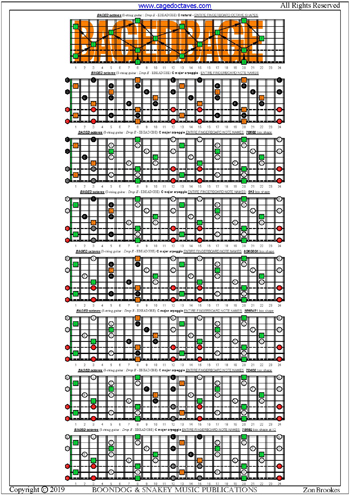

BAGED octaves (8-string guitar: Drop E - EBEADGBE) fingerboard C major arpeggio notes pdf

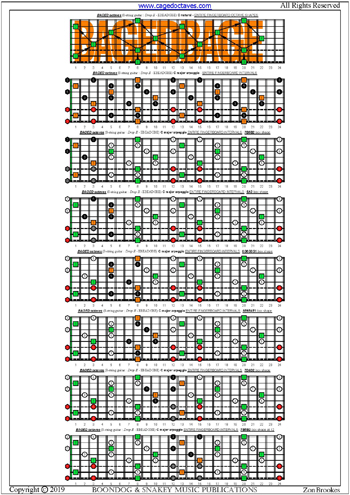

BAGED octaves (8-string guitar: Drop E - EBEADGBE) fingerboard C major arpeggio intervals pdf
