CAGED4BASS : 4-string bass in Low E (EADG tuning)
C major scale (ionian mode) 3nps : General

In this BLOGoZON we take a look at the C major scale (ionian mode) 3nps
and join them all together to form one long CAGED4BASS chain.

CAGED4BASS octave shapes (3nps)

Hence the CAGED4BASS sequence is shown for C natural in the diagram that follows:-

CAGED4BASS C natural fingerboard

guitarpro6_c_natural octaves

The diagram that follows shows all seven of the CAGED4BASS shapes for use with the
box shapes for a 4-string bass tuned to EADG :-

CAGED4BASS : C natural octaves (3nps)

The diagrams that follows show all of the C major scale (ionian mode) notes plotted over the
4-string bass guitar's fretboard in the CAGED4BASS style:-

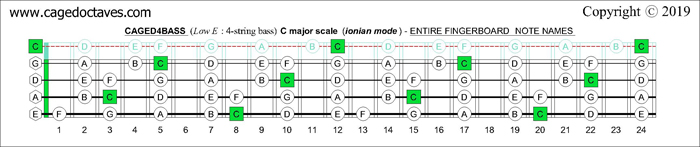

CAGED4BASS : C major scale (ionian mode) fingerboard notes

GuitarPro7 fingerboard : C major scale (ionian mode)

GuitarPro7: C major scale (ionian mode)

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes rather than note names - as these are universal to all scales, arpeggios and chords rather than specific to one particular root note - with this in mind the intervals for the C major scale (ionian mode) are detailed below in the
CAGED4BASS manner:-

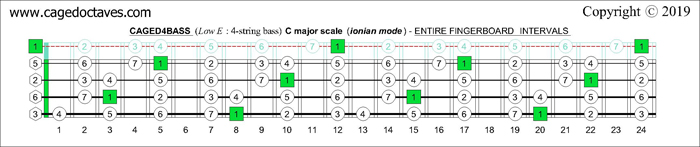

CAGED4BASS : C major scale (ionian mode) fingerboard intervals

The tables and tabbed panels below detail all seven box shapes for the
C major scale (ionian mode) 3nps in the CAGED4BASS style for Low E tuning.


CAGED4BASS : 4-string bass in Low E (EADG tuning)
C major scale (ionian mode) 3nps box shapes

YouTube icon

Flash iconGuitar Pro 6 icon

CAGED4BASS C major scale 3nps : 3C* box shape pdf

CAGED4BASS C major scale 3nps : 3A1 box shape pdf

CAGED4BASS C major scale 3nps : 3A1G box shape pdf

CAGED4BASS C major scale 3nps : 4G1 box shape pdf

CAGED4BASS C major scale 3nps : 4E2 box shape pdf

CAGED4BASS C major scale 3nps : 4E2D* box shape pdf

CAGED4BASS C major scale 3nps : 2D* box shape pdf

CAGED4BASS C major scale 3nps : 3C* box shape at 12 pdf


CAGED4BASS : 4-string bass in Low E (EADG tuning)
C major scale (ionian mode) 3nps box shapes

  • 3C*
  • 3A1
  • 3A1G
  • 4G1
  • 4E2
  • 4E2D*
  • 2D*
  • 3C* at 12

GuitarPro6 C major scale 3nps : 3C* box shape

GuitarPro6 C major scale 3nps : 3A1 box shape

GuitarPro6 C major scale 3nps : 3A1G box shape

GuitarPro6 C major scale 3nps : 4G1 box shape

GuitarPro6 C major scale 3nps : 4E2 box shape

GuitarPro6 C major scale 3nps : 4E2D* box shape

GuitarPro6 C major scale 3nps : 2D* box shape

GuitarPro6 C major scale 3nps : 3C* box shape at 12


CAGED4BASS : 4-string bass in Low E (EADG tuning)
C major scale (ionian mode) 3nps box shapes

  • 3C*
  • 3A1
  • 3A1G
  • 4G1
  • 4E2
  • 4E2D*
  • 2D*
  • 3C* at 12

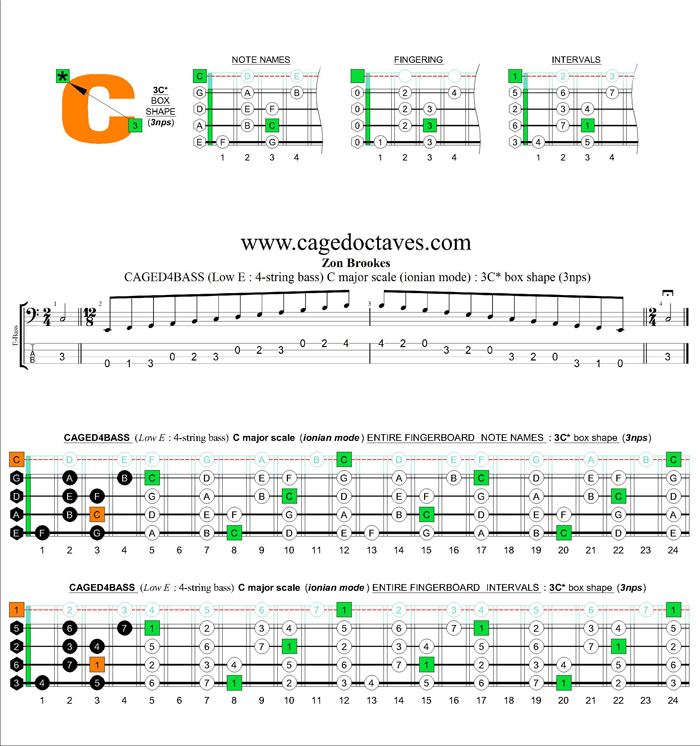

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 3C* box shape

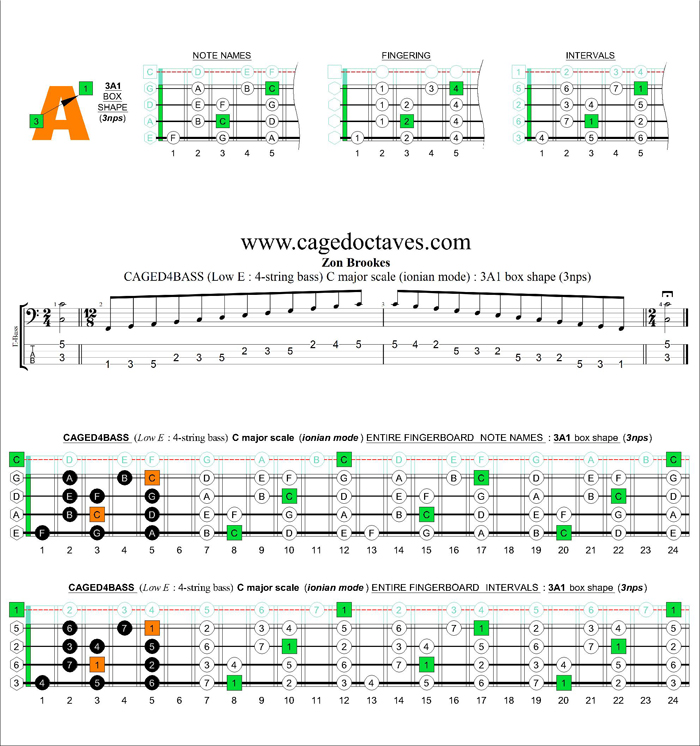

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 3A1 box shape

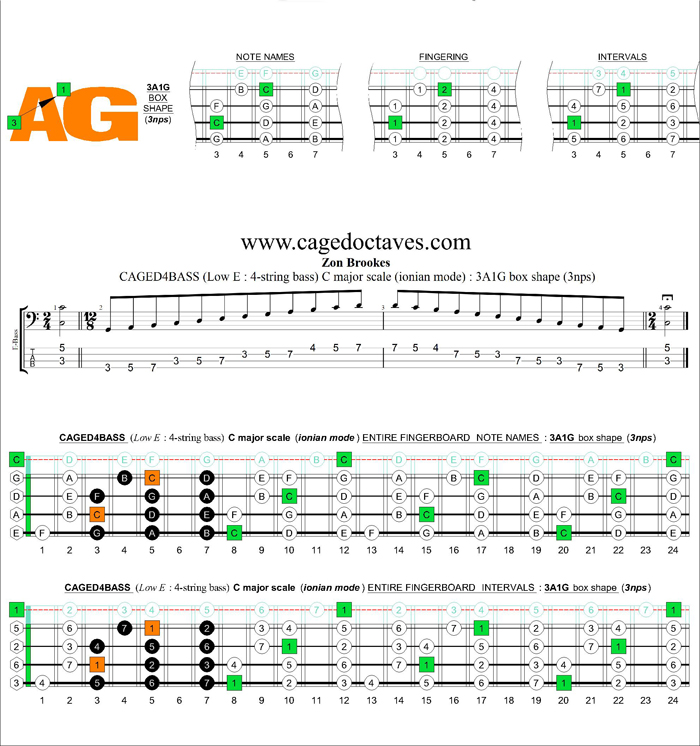

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 3A1G box shape

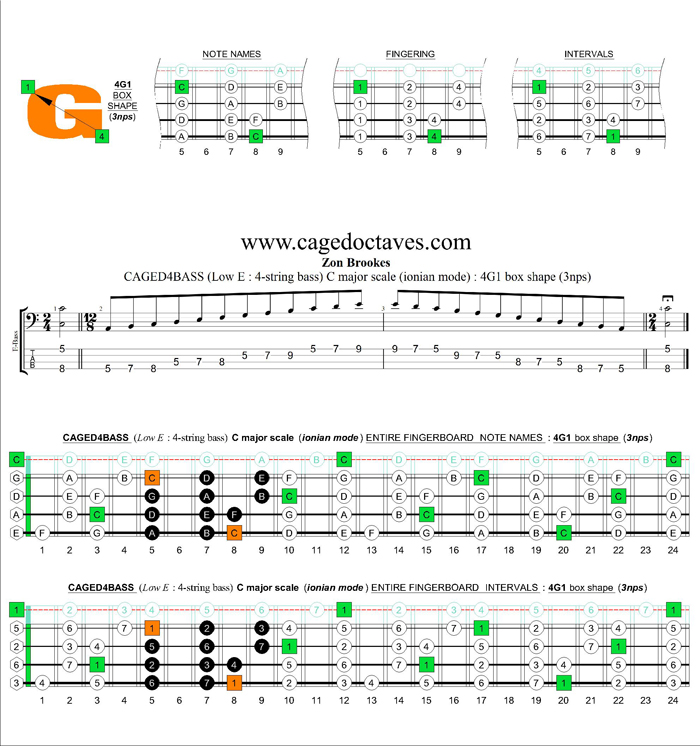

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 4G1 box shape

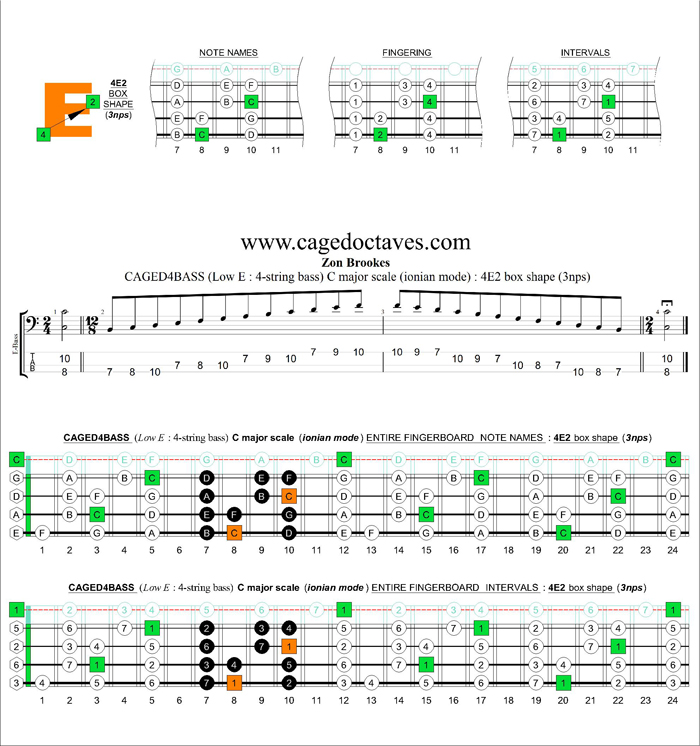

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 4E2 box shape

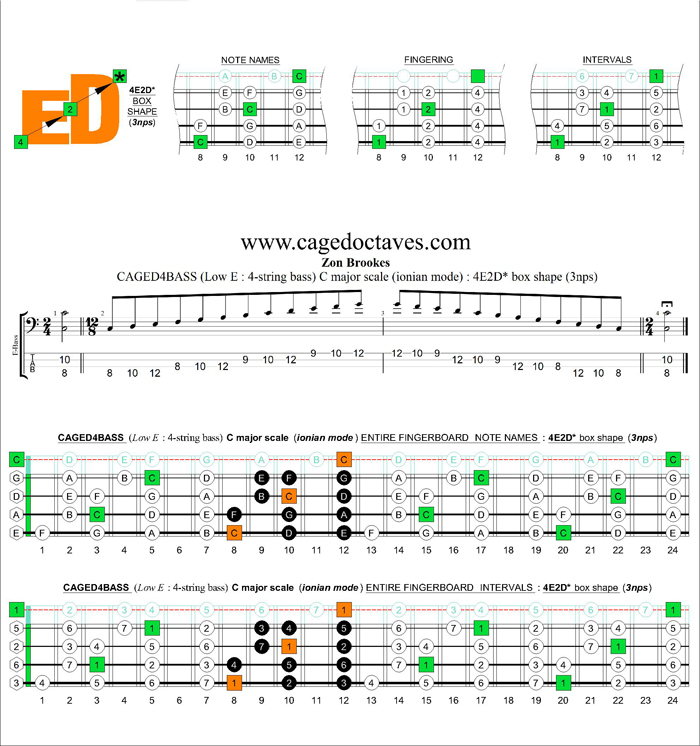

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 4E2D* box shape

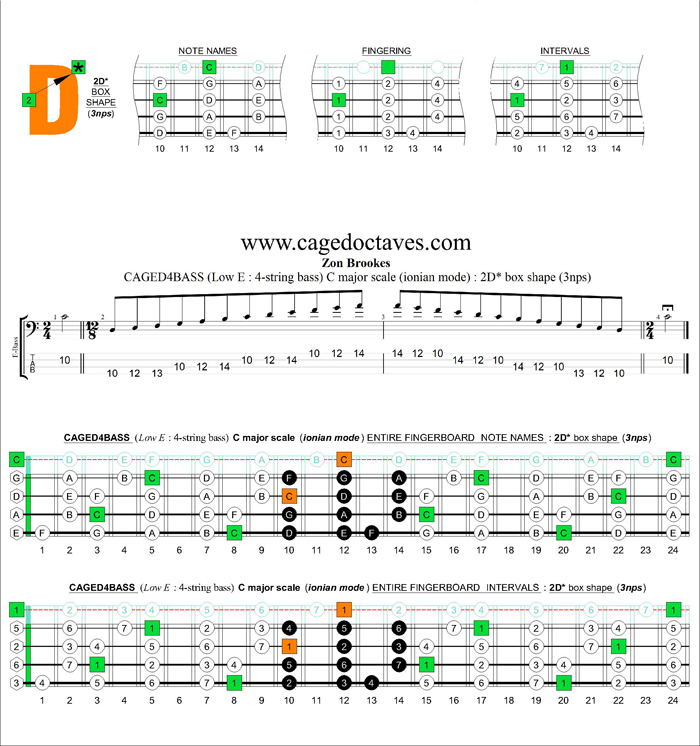

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 2D* box shape

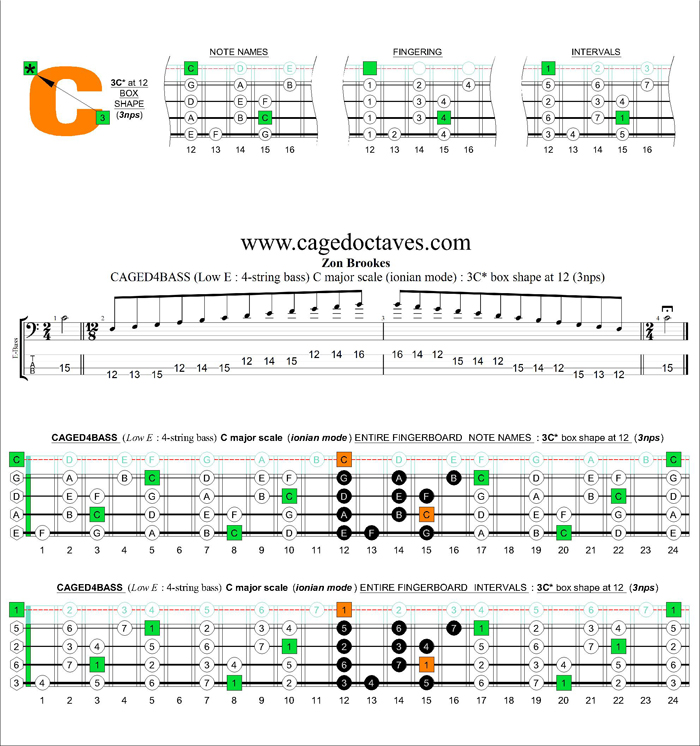

CAGED4BASS (4-string bass : Low E) C major scale (ionian mode) : 3C* box shape at 12


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 3C* - being repeated at the 12th fret).

The video shown to the right demonstrates the CAGED4BASS chain-linked sequence for the C major scale (ionian mode) 3nps box shapes.


The complete TAB for the previous exercise follows:-

C major scale (ionian mode) 3nps box shapes TAB


The box shapes for the previous exercise follow:-

C major scale box shape

CAGED4BASS : 4-string bass in Low E (EADG tuning)
C major scale (ionian mode) 3nps
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

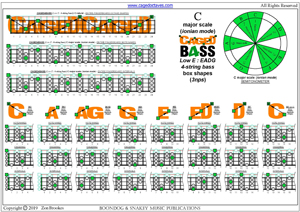

CAGED4BASS (4-string bass : Low E) - C major scale (ionian mode) 3nps box shapes pdf

AGED4BASS (4-string bass : Low E) - C major scale (ionian mode) 3nps box shapes TAB pdfAGED4BASS (4-string bass : Low E) - C major scale (ionian mode) 3nps box shapes TAB pdf


CAGED4BASS : 4-string bass in Low E (EADG tuning)
C major scale (ionian mode) 3nps
Overall fretboard box shapes

CAGED4BASS C major scale (ionian mode) 3nps box shapes : fretboard notes

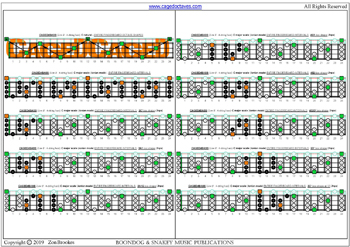

CAGED4BASS C major scale (ionian mode) 3nps box shapes : fretboard intervals
